Numerical Investigation of Sediment-Laden Flow in a High-Head Francis Turbine Runner

Abstract:

The 3-D turbulent particulate-liquid two-phase flow equations are employed in this study. The computing domain is discretized with a full three-dimensional mesh system of unstructured tetrahedral shapes. The finite volume method is used to solve the governing equations and the pressure-velocity coupling is handled via a Pressure Implicit with Splitting of Operators (PISO) procedure. Simulation results have shown that the sand erosion rate on pressure side is more than on the suction side of the blade. The maximum value of sand volume fraction and the maximum value of sand erosion rate are at same location.

You might also be interested in these eBooks

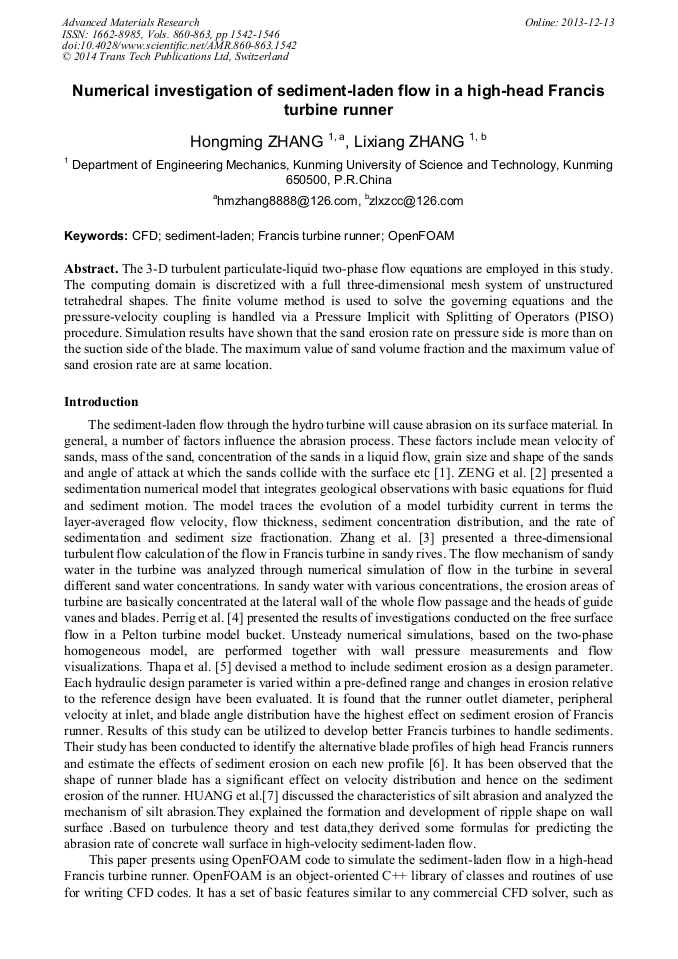

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 860-863)

Pages:

1542-1546

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.860-863.1542

Citation:

Cite this paper

Online since:

December 2013

Authors:

Hong Ming Zhang*, Li Xiang Zhang

Keywords:

CFD, Francis Turbine Runner, OpenFOAM, Sediment-Laden

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] THari Prasad Neopane. Sediment Erosion in Hydro Turbines, Phd thesis, Norwegian University of Science and Technology, (2010).

Google Scholar

[2] JIANJUN ZENG and DONALD R. LOWE. Numerical simulation of turbidity current flow and sedimentation: I. Theory. International Association of Sediinentologists, (1997).

Google Scholar

[3] H K Zhang, X B Liu, Z Liang, D M Liu and H Y Wang. 3D numerical analysis of flow in Francis turbine in sandy river. Earth and Environmental Science 15 (2012).

DOI: 10.1088/1755-1315/15/3/032053

Google Scholar

[4] Alexandre Perrig, Francois Avellan, Jean-Louis Kueny, Mohamed Farhat. Flow in a Pelton Turbine Bucket: Numerical and Experimental Investigations, 350-358.

DOI: 10.1115/1.2170120

Google Scholar

[5] Biraj Singh thapa, ristine Gjosater, Mette Eltvik, Ole Gunnar Dahlhaug, Bhola Thapa. Effects of Turbine Design Parameters on Sediment Erosion of Francis Runner, Developments in Renewable Energy Technology (ICDRET), 2nd International Conference, (2012).

DOI: 10.1088/1755-1315/15/3/032052

Google Scholar

[6] Biraj Singh Thapa, Bhola Thapa, Mette Eltvik. Optimizing runner blade profile of Francis turbine to minimize sediment erosion, The 26'" IAHR Symposium on Hydraulic Machinery and Systems Beijing, China, (2012).

DOI: 10.1088/1755-1315/15/3/032052

Google Scholar

[7] Huang X, Yuan Y. Mechanism and prediction of material abrasion in high-velocity sediment-laden flow [J]. Journal of Hydrodynamics, Ser. B, 2006, 18(6): 760-764.

DOI: 10.1016/s1001-6058(07)60018-3

Google Scholar
