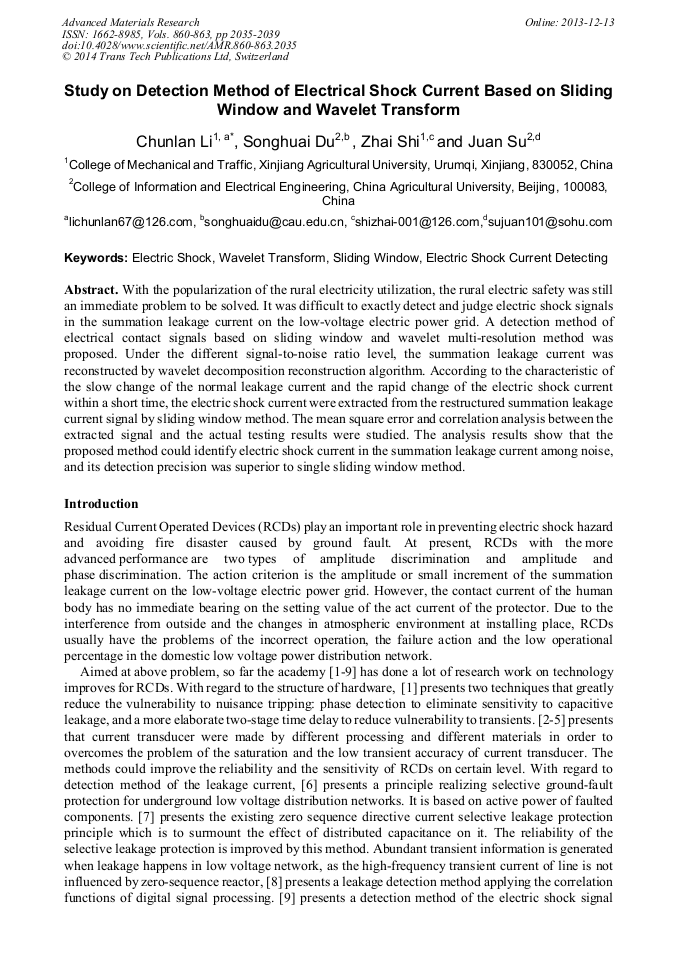

Study on Detection Method of Electrical Shock Current Based on Sliding Window and Wavelet Transform

Abstract:

With the popularization of the rural electricity utilization, the rural electric safety was still an immediate problem to be solved. It was difficult to exactly detect and judge electric shock signals in the summation leakage current on the low-voltage electric power grid. A detection method of electrical contact signals based on sliding window and wavelet multi-resolution method was proposed. Under the different signal-to-noise ratio level, the summation leakage current was reconstructed by wavelet decomposition reconstruction algorithm. According to the characteristic of the slow change of the normal leakage current and the rapid change of the electric shock current within a short time, the electric shock current were extracted from the restructured summation leakage current signal by sliding window method. The mean square error and correlation analysis between the extracted signal and the actual testing results were studied. The analysis results show that the proposed method could identify electric shock current in the summation leakage current among noise, and its detection precision was superior to single sliding window method.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 2035-2039
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.2035
• Online since: December 2013
• Authors: Chun Lan Li*, Song Huai Du, Zhai Shi, Juan Su
• Keywords: Electric Shock, Electric Shock Current Detecting, Sliding Window, Wavelet Transform (WT)

References

[1] B rennan P. V., Residual current device with high immunity to nuisance tripping, IEE Proceedings on Circuits Devices and Systems, Vol. 140, No. 2, 1993, pp.140-144.

DOI: 10.1049/ip-g-2.1993.0022

[2] Taylor C. J., Twynham S. C., Powell S. C. Magnetoresistive residual current sensor. IEE Colloquium on Advances in Sensors, December 7, 1995, London, UK. IEE, Stevenage, United Kingdom, 1995, 232, p.5/1-5/6.

DOI: 10.1049/ic:19951509

[3] Martinez L M，Adl P，Rakowski R T，Cheshmehdoost A, Optical current transducer for residual current sensing in the milliampere range, Sensors and Actuators, Vol. 67, No. 3, 1998, pp.102-108.

DOI: 10.1016/s0924-4247(97)01772-x

[4] Luis M., Ryszard R., Franjo C., Design of a magneto-optic residual current device using aqueous ferrofluid as the sensing material, Proceedings of the 21st IEEE Instrumentation and Measurement Technology Conference, Como, Italy, May 18-20, 2004, Vol. 2, pp.804-807.

DOI: 10.1109/imtc.2004.1351184

[5] Liu Qing, Wang Zengping, Xu Yan, et al, Research on the influence of optical current transducer on protective relaying system, Power System Technology, Vol. 29, No. 1, 2005, pp.11-14, 29. (In Chinese).

[6] Mu Longhua, Meng Qinghai, Hu Tianlu, Selective ground fault protection based on active power of faulted components, Journal of China University of Mining & Technology, Vol. 31, No. 4, 2002, pp.380-383. (In Chinese).

[7] Yuan Zhenhai, Shen Xiangyun, Wang Xianfeng, et al, Study of selective leakage protection principle based on zero sequence directive current, Transactions of China Electrotechnical Society, Vol. 20, No. 4, 2005, pp.102-106. (In Chinese).

[8] Wang Qingliang, Liu Junliang, Selective leakage protection based on correlation between high-frequency transient components, Electric Power Automation Equipment, Vol. 27, No. 9, 2007, pp.59-62. (In Chinese).

[9] Li Chunlan, Du Songhuai, Su Juan, et al, A novel detecting method of electric shock signal based on wavelet transform and chaotic theory, Power System Protection and Control, Vol. 39, No. 10, 2011, pp.47-52, 154. (In Chinese).
