Numerical Simulation on Hydraulic Characteristics of Underflow for Falling-Sill Bottom-Flow Dissipation

Abstract:

Falling-sill bottom-flow dissipation is an important energy dissipater way, which has two fluent characteristics, spatial 3D hydraulic jump and submerge jet. But the turbulent motion is strong with a flow pattern of complex level. It is hard to detail the hydraulic characteristics and strength being inside of the plunge pool using physical experiments. However, numerical simulation can match the deficiency of physical model, which has the access to detail flow field hydraulic characteristics and provide a strong scientific basis on analyzing the hydrodynamic and hydraulic characteristics of plunge pool. In this paper, XJB project is taken for example, gas-liquid two-phase flow tracking the simulation free surface of VOF model was used. The RNG κ_ε turbulent motion model is adequate to simulate the 3D flow field in plunge pool. The result shows that the consequence of numerical simulation and physic test match well, which can reflect the plunge pool hydraulic characteristics and dissipation process accurately. The distribution of flow speed inside the plunge pool locates the position of main flow and reflects the velocity decay along the way and reflux flow vortex .

You might also be interested in these eBooks

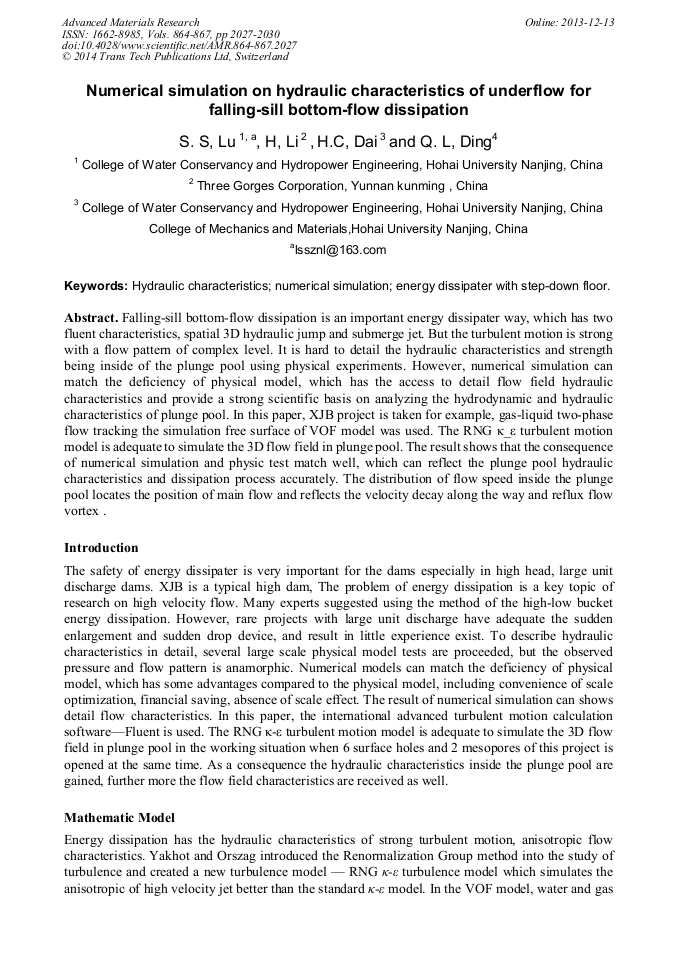

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 864-867)

Pages:

2027-2030

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.864-867.2027

Citation:

Cite this paper

Online since:

December 2013

Authors:

Shan Shan Lu*, Hua Li, Hui Chao Dai, Quan Lin Ding

Keywords:

Energy Dissipater with Step-Down Floor, Hydraulic Characteristics, Numerical Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Xu Weilin, Liao Huasheng and Yang Yongquan: Acta Mechanica Sinica. Vol. 30(1998), p.35.

Google Scholar

[2] Gao Jizhang, Li Yongmei, Liu Peiqing, in: submitted to Journal of Hydraulic Engineering, (1999).

Google Scholar

[3] Li Yanling, Hua Guochun, Zhang Jianmin: Advances in Water Science, Vol. 17 (2006), p.761.

Google Scholar

[4] Deng Jun, Xu Weilin, Zhang Jianming, in: A New Type of Plunge Pool—Multi-horizontal Submerged Jets, edited by Technological Sciences, Science in China (2008), p.2128.

DOI: 10.1007/s11431-008-0237-z

Google Scholar

[5] Dai Huichao, Huai Wenxin, Wu Yulin, in: Theories and Applications of Flow Refined Simulation for Hydraulic and Hydropower Engineering. Science Press, (2006), in press.

Google Scholar
