Vertical Velocity Profile on the Noncircular Flow Cross-Section of Water Intake Pipeline with Deposition on Bottom

Abstract:

Under small water-intake flow or overhaul periods, sediments deposit in the water intake pipeline with noncircular flow cross-section formed. According to the hydrostatic settling test results of fine sediments in circular pipeline, the sectional features of the deposition on pipe bottom is provided. And the vertical velocity profiles on perpendicular bisectors of noncircular flow cross-sections are measured under three kinds of typical deposition thickness. The relative positions of the maximum velocity point and the center of flow cross-section should be determined with an overall consideration to the two factors of wall roughness and wall restraint which is controlled by the transverse width of flow cross-section. When the mean velocity of flow cross-section keeps a constant value, the larger the deposition thickness is, the larger the velocity near the deposition surface, which is more favorable for sediment incipient motion.

You might also be interested in these eBooks

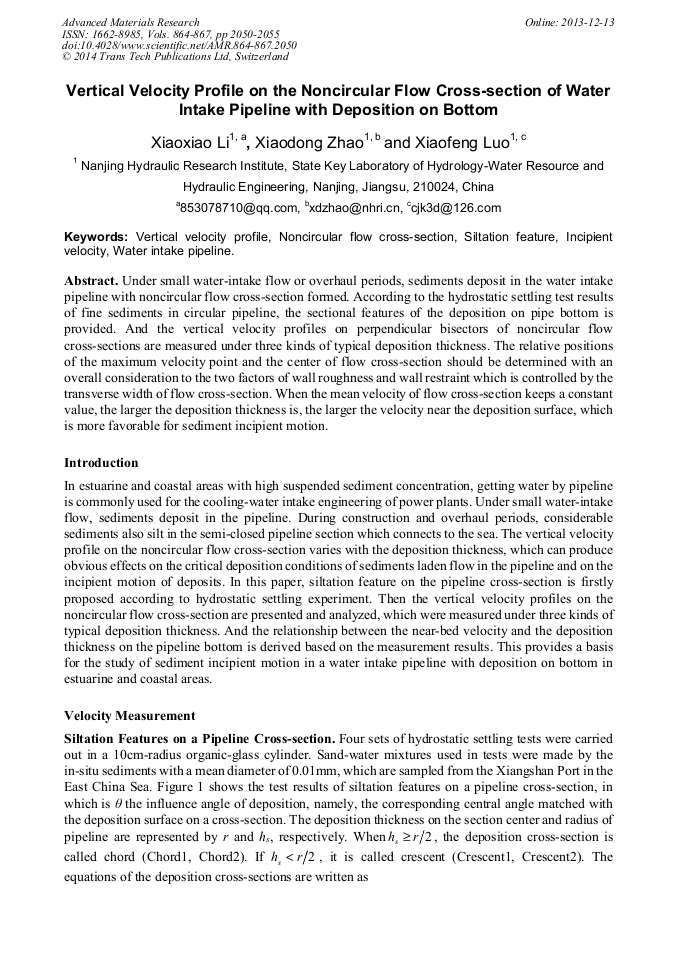

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 864-867)

Pages:

2050-2055

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.864-867.2050

Citation:

Cite this paper

Online since:

December 2013

Authors:

Xiao Xiao Li*, Xiao Dong Zhao, Xiao Feng Luo

Keywords:

Incipient Velocity, Noncircular Flow Cross-Section, Siltation Feature, Vertical Velocity Profile, Water Intake Pipeline

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Sediment Commission of Chinese Society for Environmental Sciences: Sediment Manual. (China Environmental Science Press, Beijing 1992) (In Chinese).

Google Scholar

[2] Xiaodong Zhao and Jianzhong Wang: Research Report on Water Taking Tunnel Engineering Model Test of Qinshan Nuclear Power Plant Expansion Project (Fangjiashan Nuclear Power Engineering). (Nanjing Hydraulic Research Institute, Nanjing 2009) (In Chinese).

Google Scholar

[3] Jiabiao Gong: Journal of Southeast University. Natural Science Edition. Vol. 02 (1979), pp.7-20. (In Chinese).

Google Scholar

[4] Ning Chien and Zhaohui Wan: Mechanics of Sediment Transport. (ASCE Press, Reston 1999).

Google Scholar

[5] Jiaxing Li and Zhengxing Zhao: Hydraulics. (Hohai University Press, Nanjing 2001) (In Chinese).

Google Scholar
