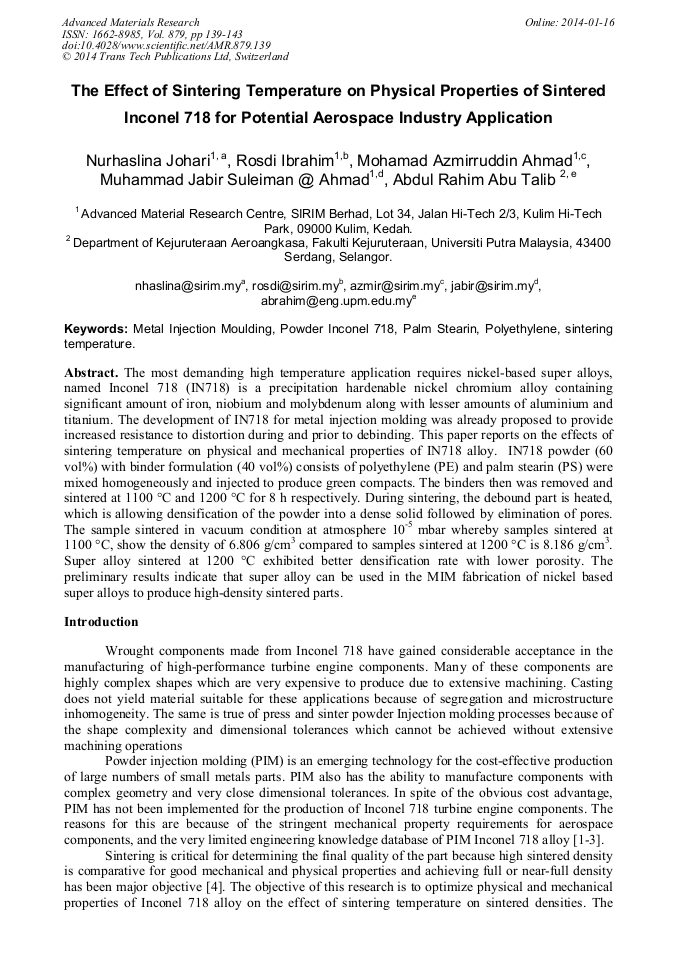

The Effect of Sintering Temperature on Physical Properties of Sintered Inconel 718 for Potential Aerospace Industry Application

Abstract:

The most demanding high temperature application requires nickel-based super alloys, named Inconel 718 (IN718) is a precipitation hardenable nickel chromium alloy containing significant amount of iron, niobium and molybdenum along with lesser amounts of aluminium and titanium. The development of IN718 for metal injection molding was already proposed to provide increased resistance to distortion during and prior to debinding. This paper reports on the effects of sintering temperature on physical and mechanical properties of IN718 alloy. IN718 powder (60 vol%) with binder formulation (40 vol%) consists of polyethylene (PE) and palm stearin (PS) were mixed homogeneously and injected to produce green compacts. The binders then was removed and sintered at 1100 °C and 1200 °C for 8 h respectively. During sintering, the debound part is heated, which is allowing densification of the powder into a dense solid followed by elimination of pores. The sample sintered in vacuum condition at atmosphere 10^-5 mbar whereby samples sintered at 1100 °C, show the density of 6.806 g/cm³ compared to samples sintered at 1200 °C is 8.186 g/cm³. Super alloy sintered at 1200 °C exhibited better densification rate with lower porosity. The preliminary results indicate that super alloy can be used in the MIM fabrication of nickel based super alloys to produce high-density sintered parts.

• Periodical: Advanced Materials Research (Volume 879)
• Pages: 139-143
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.879.139
• Online since: January 2014
• Authors: Nurhaslina binti Johari, Rosdi Ibrahim, Ahmad Nizam bin Abdullah, Muhammad Jabir bin Suleiman Ahmad, Abdul Rahim Abu Talib
• Keywords: Metal Injection Molding (MIM), Palm Stearin, Polyethylene, Powder Inconel 718, Sintering Temperature

References

[1] W. Track and W. Smarsly, "Injection Molding of High Temperature Materials," (Paper presented at the '93 Powder Injection Molding Symposium, Boulder, Co. Oct 1993), 4-6

[2] J. J. Valencia, T. McCabe, K. Hens, J. O. Hansen, and A. Bose, "Microstructure and Mechanical Properties of Ally 625 and 718 Process by PIM". Edited by E. Loria, TMS.

[3] R. Scheemes, J. R. Spirko, and J. J. Valencia, "Powder Injection Molding of Inconel 718 Aerospace Components" (Advanced Particulate Materials and Processes Conferene, West Palm Beach, FL, MPIF

[4] The Engineering Society for Advancing Mobility Land Sea Air and Space International, Aerospace Material Specification (AMS 5662G, Jan 1993).

[5] Hu Youhua, Li Yimin, He Hao, Lou Jia and Tang Xiao: Rare Metal Materials and engineering 39 (5) (2010) pp.0775-0780

[6] P. A. Davies, G. R Dunstan and A. C. Hayward: Powder Metallurgy World Congress & Exhibition. Shrewsbury: European Powder Metallurgy Association 2004 6

[7] Davies, P. A, Dunstan, R. Howells, R. Hayward, A. C: Advanves in Powder Metallurgy and Particulate Materials 8 2003 pp.8-12
