Alloy Design of New Ni-Based Structural Materials for Electrolytic Reduction and its Corrosion Behavior in Lithium Molten Salt

Sang Kyu Park; Tae Hyuk Lee; Moon Soo Sim; Jae Soo Noh; Soo Haeng Cho; Jong Hyeon Lee

doi:10.4028/www.scientific.net/AMR.886.41

Paper Titles

Effect of Temperature and Pressure on the Nitrogen Content of High Nitrogen Steel
p.24

Effect of Bottom Blowing Time and Bottom Blowing Rate on the Nitrogen Content of High Nitrogen Steel
p.28

Effect of Extrusion on Mechanical Properties of Spray Forming 8009 Heat Resistant Aluminum Alloy
p.32

Research on the Second Phase of Spray Forming Al-8.5Fe-1.3V-1.7Si Aluminum Alloy
p.36

Alloy Design of New Ni-Based Structural Materials for Electrolytic Reduction and its Corrosion Behavior in Lithium Molten Salt
p.41

Numerical Simulation and Optimization of "Non-Catalytic Reduction" Process for Circulating Fluidized Bed Boiler Based on Properties of Materials
p.45

A Study of the Fire Resistance against Structural Materials of H-Section Made of SS 400 by Boundary Conditions at High Temperature
p.51

Experimental Research on Lead-Zinc Separation of Refractory Lead-Zinc Ore
p.55

Effect of Subcritical Quenching on Microstructure and Mechanical Properties of EH36 Alloy
p.59

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 886Alloy Design of New Ni-Based Structural Materials...

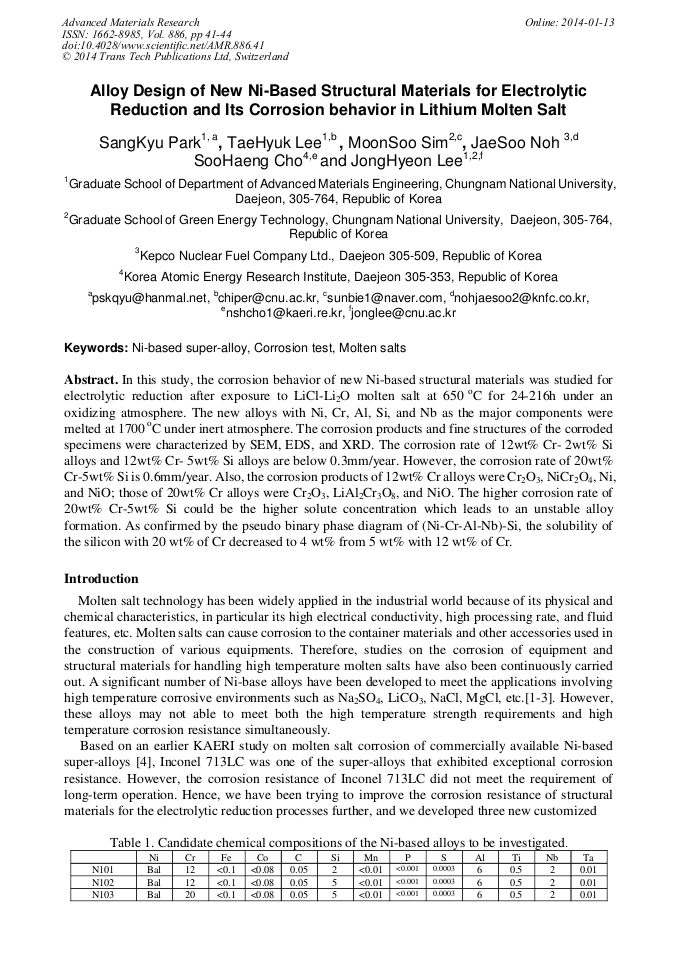

Alloy Design of New Ni-Based Structural Materials for Electrolytic Reduction and its Corrosion Behavior in Lithium Molten Salt

Abstract:

In this study, the corrosion behavior of new Ni-based structural materials was studied for electrolytic reduction after exposure to LiCl-Li₂O molten salt at 650°C for 24-216h under an oxidizing atmosphere. The new alloys with Ni, Cr, Al, Si, and Nb as the major components were melted at 1700°C under inert atmosphere. The corrosion products and fine structures of the corroded specimens were characterized by SEM, EDS, and XRD. The corrosion rate of 12wt% Cr-2wt% Si alloys and 12wt% Cr-5wt% Si alloys are below 0.3mm/year. However, the corrosion rate of 20wt% Cr-5wt% Si is 0.6mm/year. Also, the corrosion products of 12wt% Cr alloys were Cr₂O₃, NiCr₂O₄, Ni, and NiO; those of 20wt% Cr alloys were Cr₂O₃, LiAl₂Cr₃O₈, and NiO. The higher corrosion rate of 20wt% Cr-5wt% Si could be the higher solute concentration which leads to an unstable alloy formation. As confirmed by the pseudo binary phase diagram of (Ni-Cr-Al-Nb)-Si, the solubility of the silicon with 20 wt% of Cr decreased to 4 wt% from 5 wt% with 12 wt% of Cr.
