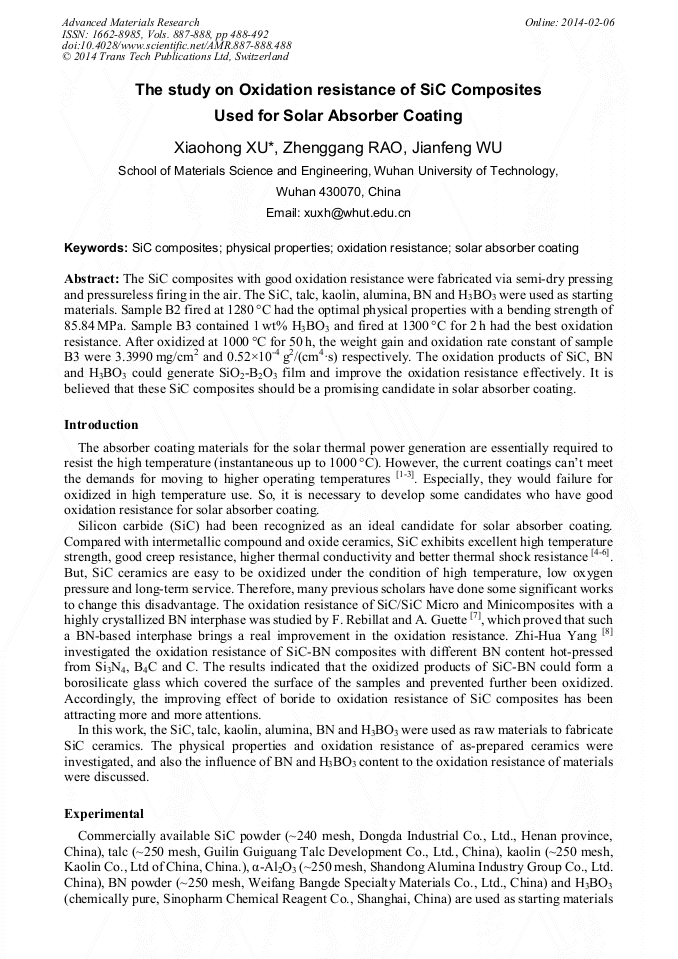

The Study on Oxidation Resistance of SiC Composites Used for Solar Absorber Coating

Abstract:

The SiC composites with good oxidation resistance were fabricated via semi-dry pressing and pressureless firing in the air. The SiC, talc, kaolin, alumina, BN and H₃BO₃ were used as starting materials. Sample B2 fired at 1280 °C had the optimal physical properties with a bending strength of 85.84 MPa. Sample B3 contained 1 wt% H₃BO₃ and fired at 1300 °C for 2 h had the best oxidation resistance. After oxidized at 1000 °C for 50 h, the weight gain and oxidation rate constant of sample B3 were 3.3990 mg/cm² and 0.52×10^-4 g²/(cm⁴·s) respectively. The oxidation products of SiC, BN and H₃BO₃ could generate SiO₂-B₂O₃ film and improve the oxidation resistance effectively. It is believed that these SiC composites should be a promising candidate in solar absorber coating.

• Periodical: Advanced Materials Research (Volumes 887-888)
• Pages: 488-492
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.887-888.488
• Online since: February 2014
• Authors: Xiao Hong Xu*, Zheng Gang Rao, Jian Feng Wu
• Keywords: Oxidation Resistance, Physical Properties, SiC Composites, Solar Absorber Coating

References

[1] A. S. Glaude, I. Bousquet, L. Thomas, et al: Solar Energy Materials & Solar Cells Vol. 117 (2013), p: 315-323.

[2] Jianfeng Wu, Meng Liu, Xiaohong Xu, et al: Journal of the Chinese ceramic society Vol. 40 (2012), p: 1685-1692.

[3] Jianfeng Wu, Meng Liu, Xiaohong Xu, et al: Journal of Wuhan University of Technology Vol. 35 (2013), p: 1-6. (In Chinese).

[4] P. Greil: Advanced Materials Vol. 14 (2002), p: 709-716.

[5] Xiaohong Xu, Guohao Jiao, Jianfeng Wu, et al: Journal of Wuhan University of Technology-mater. Sci. Ed. Vol. 26 (2011), p: 285-289.

[6] Jianfeng Wu, Binzheng Fang, Xiaohong Xu, et al: Journal of the Chinese ceramic society Vol. 41 (2013), p: 1063-1069.

[7] F. Rebillat, A. Guette, L. Espitalier, et al: Journal of the European Ceramic Society Vol. 18 (1998), p: 1809-1819.

[8] Zhi-Hua Yang, De-Chang Jia, Yu Zhou, et al: Ceramic International Vol. 34 (2013), p: 317-321.

[9] Yoshimi K, Akatani S, Suda T, et al: Intermetallics Vol. 10 (2002), p: 407-414.

[10] M. K. Meyer, M. Kinc: Journal of American ceramic society Vol. 79 (1996), p: 2763-2766.

[11] Yoshimi K, Nakatani S, Hanada S: Science and Technology of Advanced Materials Vol. 3 (2002), p: 181-192.

[12] Magnani G, Antolini F, Beaulardi L, et al: Journal of the European society Vol. 31 (2011), p: 369-376.

[13] Guy Ervin JR: Journal of American ceramic society Vol. 41 (1958), p: 347-352.

[14] PAN Mu , NAN Cewen: Corrosion Science and Protection Technology Vol. 12 (2002), p: 109-113.

[15] N. S. Jacobson, G. N. Morscher: Journal of American ceramic society Vol. 82 (1999), p: 1473-1482.
