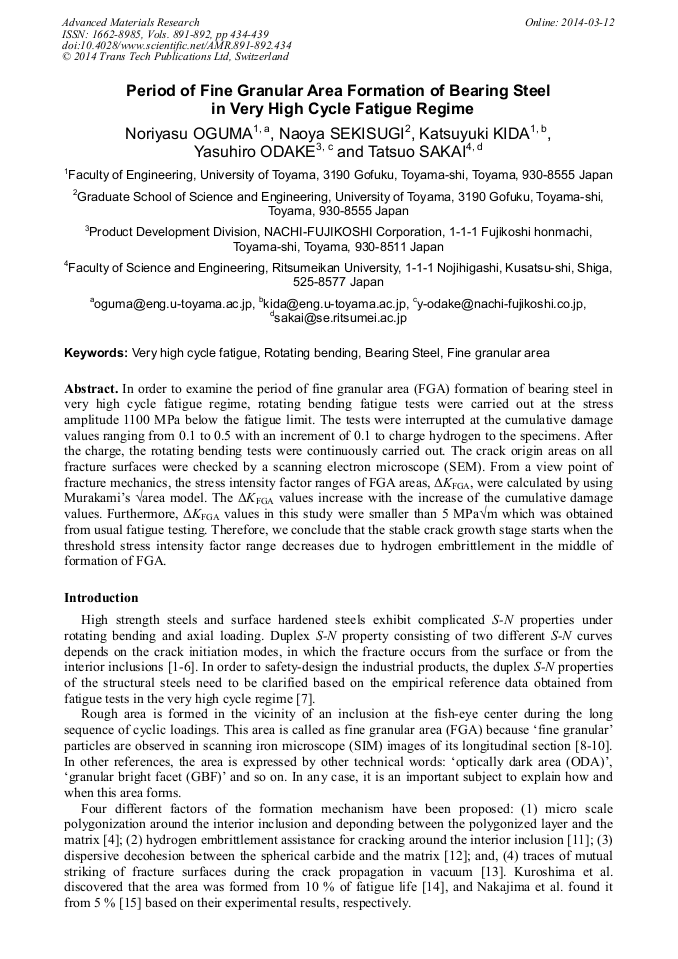

Period of Fine Granular Area Formation of Bearing Steel in Very High Cycle Fatigue Regime

Abstract:

In order to examine the period of fine granular area (FGA) formation of bearing steel in very high cycle fatigue regime, rotating bending fatigue tests were carried out at the stress amplitude 1100 MPa below the fatigue limit. The tests were interrupted at the cumulative damage values ranging from 0.1 to 0.5 with an increment of 0.1 to charge hydrogen to the specimens. After the charge, the rotating bending tests were continuously carried out. The crack origin areas on all fracture surfaces were checked by a scanning electron microscope (SEM), and it was discovered that FGA was not formed in some of them. From a view point of fracture mechanics, the stress intensity factor ranges of FGA areas, ΔK_FGA, were calculated by using Murakamis area model. The ΔK_FGA values increase with the increase of the cumulative damage values. Furthermore, ΔK_FGA values in this study were smaller than 5 MPam which was obtained from usual fatigue testing. Therefore, we conclude that the stable crack growth stage starts when the threshold stress intensity factor range decreases due to hydrogen embrittlement in the middle of formation of FGA.

• Periodical: Advanced Materials Research (Volumes 891-892)
• Pages: 434-439
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.891-892.434
• Online since: March 2014
• Authors: Noriyasu Oguma*, Naoya Sekisugi, Katsuyuki Kida, Yasuhiro Odake, Tatsuo Sakai
• Keywords: Bearing Steel, Fine Granular Area, Rotating Bending, Very High Cycle Fatigue (VHCF)

References

[1] T. Sakai, M. Takeda, K. Shiozawa, Y. Ochi, M. Nakajima, T. Nakamura and N. Oguma, Experimental evidence of duplex S-N characteristics in wide life region for high strength steels, Proceedings of the 7th international fatigue congress, 1 (1999).

[2] K. Shiozawa, L. Lu and S. Ishihara, Subsurface fatigue crack initiation behavior and S-N curve characteristics in high carbon chromium bearing steel, Journal of the Society of Materials and Science, Japan, 48 (1999) pp.1095-1100. (in Japanese).

DOI: 10.2472/jsms.48.1095

[3] N. Oguma and T. Sakai, Fatigue life prediction for bearing steel failed with fish-eye at subsurface in rotating bending, Journal of the Society of Materials and Science, Japan, 50 (2001) pp.516-523. (in Japanese).

DOI: 10.2472/jsms.50.516

[4] T. Sakai, Y. Sato and N. Oguma, Characteristic S-N properties of high-carbon-chromium-bearing steel under axial loading in long-life fatigue, Fatigue & Fracture of Engineering Materials & Structures, 25 (2002) pp.765-773.

DOI: 10.1046/j.1460-2695.2002.00574.x

[5] T. Sakai, B. Lian, M. Takeda, K. Shiozawa, N. Oguma, Y. Ochi, M. Nakajima and T. Nakamura, Statistical duplex S-N characteristics of high carbon chromium bearing steel in rotating bending in very high cycle regime, International Journal of Fatigue, 32 (2010).

DOI: 10.1016/j.ijfatigue.2009.08.001

[6] N. Oguma, B. Lian, T. Sakai, K. Watanabe and Y. Odake, Long life fatigue fracture induced by interior inclusions for high carbon chromium bearing steels under rotating bending, Journal of ASTM International, 7, 9 (2010) pp.1-9.

DOI: 10.1520/jai102540

[7] C. Bathias and P.C. Paris, Rotating-bending internal crack stress correction, Gigacycle Fatigue in Mechanical Practice, Marcel Dekker, New York, Section 4. 7 (2005) pp.125-127.

[8] N. Oguma, H. Harada and T. Sakai, Mechanism of long life fatigue fracture induced by interior inclusion for bearing steel in rotating bending, Journal of the Society of Materials and Science, Japan, 52 (2003) pp.1292-1297. (in Japanese).

DOI: 10.2472/jsms.52.1292

[9] T. Sakai and N. Oguma, Crack initiation mechanism of its formation in interior inclusion induced fracture for bearing steels in very high cycle fatigue, Proceedings of Asian Pacific Conference on Fracture and Strength – Mechanics and Materials 2012, No. 193 (2012).

DOI: 10.1007/1-4020-4972-2_560

[10] N. Oguma, T. Sakai, K. Watanabe and T. Odake, FGA formation mechanism of bearing steel in rotating bending fatigue test under decremental step loads, Transactions of the Japan Society of Mechanical Engineers, 78, 789 (2012).

DOI: 10.1299/kikaia.78.618

[11] Y. Murakami, T. Nomoto and T. Ueda, Factors influencing the mechanism of superlong fatigue failure in steels, Fatigue & Fracture of Engineering Materials & Structures, 22 (1999) pp.581-590.

DOI: 10.1046/j.1460-2695.1999.00187.x

[12] K. Shiozawa, Y. Morii, S. Nishino and L. Lu, Subsurface crack initiation and propagation mechanism in high strength steel in a very high cycle fatigue regime, International Journal of Fatigue, 28 (2006) pp.1521-1532.

DOI: 10.1016/j.ijfatigue.2005.08.015

[13] T. Nakamura and H. Oguma, Effects of vacuum like environment around interior crack on gigacycle fatigue properties, Proceedings of the Materials Science & Technology 2008 Conference, (2008) CD-ROM.

[14] Y. Kuroshima, T. Ikeda, M. Harada and S. Harada, Subsurface crack growth behavior on high cycle fatigue of high strength steel, Transactions of the Japan Society of Mechanical Engineers, 64, 626 (1998) pp.2536-2541. (in Japanese).

DOI: 10.1299/kikaia.64.2536

[15] M. Nakajima, H. Itoga, N. Kamiya, K. Tokaji and H. N. Ko, Estimation of subsurface crack initiation lives for a high strength steel under variable amplitude loading test, Proceedings of the Japan Society of Mechanical Engineering Congress, No. 03-1 (2003).

DOI: 10.1299/jsmemecjo.2003.1.0_169

[16] S. Mizushima, N. Oguma, Y. Odake, and Y. Shimada, Influence of neglect time after hydrogen-charging for fatigue life of bearing steel in rotating bending, Proceedings of The 31st Symposium on Fatigue, Japan, 30 (2012) pp.134-137. (in Japanese).
