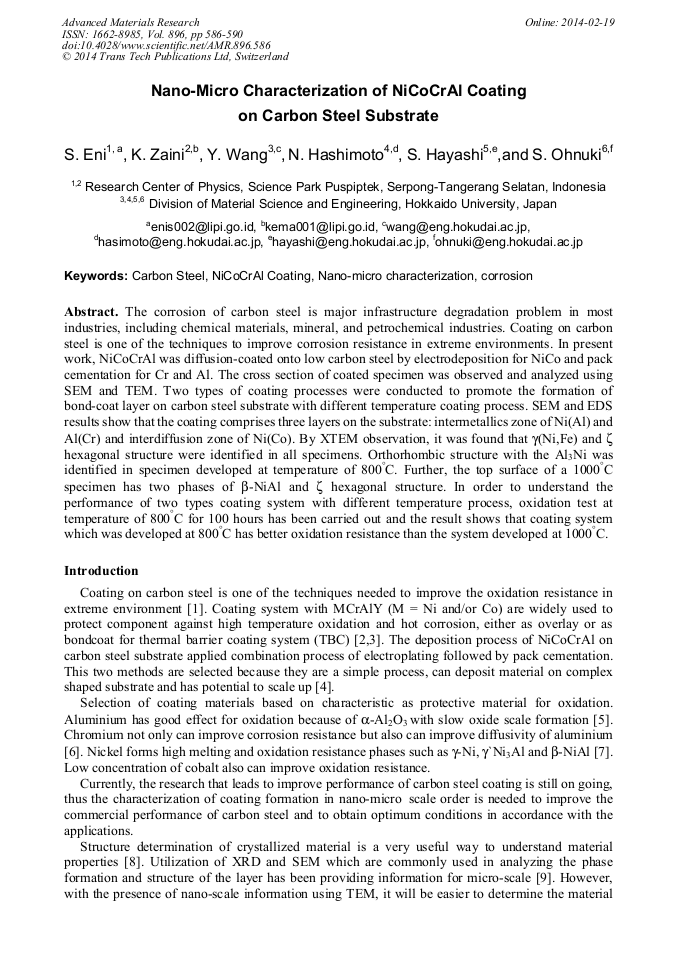

Nano-Micro Characterization of NiCoCrAl Coating on Carbon Steel Substrate

Abstract:

The corrosion of carbon steel is major infrastructure degradation problem in practically all industries, including chemical materials, mineral, and petrochemical industries. Coating on carbon steel is one of the techniques which required improving corrosion resistance in extreme environments. In present work, NiCoCrAl was diffusion-coated onto low carbon steel by electrodeposition for NiCo and pack cementation for Cr and Al. The cross section of coated specimen was observed and analyzed using SEM and TEM. Two types of coating processes have been challenging the formation of bond-coat layer on carbon steel substrate with different temperature coating process. SEM and EDS results show that the coating comprises three layers: intermetallics zone of Ni (Al) and Al (Cr), interdiffusion zone of Ni (Co), and there is the substrate. By XTEM observation, it was found that γ (Ni,Fe) and ζ hexagonal structure were identified in all specimens. Orthorhombic structure with the Al₃Ni was identified in specimen developed at temperature of 800^OC. Further, the top surface of a 1000^OC specimen has two phases of β-NiAl and ζ hexagonal structure. In order to understand the performance of two types coating system with different temperature process, oxidation test at temperature of 800^OC for 100 hours has been carried out and the result shows that coating system which was developed at 800^OC has better oxidation resistance compare to 1000^OC coating system.

• Periodical: Advanced Materials Research (Volume 896)
• Pages: 586-590
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.896.586
• Online since: February 2014
• Authors: Sugiarti Eni*, Kemas Zaini, Yong Ming Wang, N. Hashimoto, Shigenari Hayashi, Somei Ohnuki
• Keywords: Carbon Steel, Corrosion, Nano-Micro Characterization, NiCoCrAl Coating

References

[1] E.A. Noor and A.H. Al-Moubaraki, Corrosion Behavior of Mild Steel in Hydrochloric Acid Solutions, Int. J. Electrochem. Sci., Vol. 3 (2008) 806 – 818.

[2] A.J. Burns, R. Subramanian, B.W. Kempshall, Y.H. Sohn, Microstructure of As-Coated Thermal Barrier Coatings With Varying Lifetimes, Surface and Coatings Technology 177 –178 (2004) 89–96.

DOI: 10.1016/j.surfcoat.2003.06.021

[3] M. Seraffon, N.J. Simms, J. Sumner, J.R. Nicholls, The Development of New Bond Coat Compositions for Thermal Barrier Coating Systems Operating Under Industrial Gas Turbine Conditions, Surface & Coatings Technology (2011) 1-9.

DOI: 10.1016/j.surfcoat.2011.06.023

[4] T. Narita, T. Izumi, T. Nishimoto,Y. Shibata, K.Z. Thosin, S. Hayashi, Advanced Coatings on High Temperature Applications, Materials Science Forum Vol. 522-523 (2006) 1-14.

DOI: 10.4028/www.scientific.net/msf.522-523.1

[5] R. Prescott, and M.J. Graham, The Formation of Alumina Oxide Scales on High-Temperature Alloys, Oxidation of Metals 38(1992) 233-254.

DOI: 10.1007/bf00666913

[6] S. Bose, High Temperature Coatings, Elsevier, Amsterdam, (2007).

[7] Y. Tamarin, Protective Coatings for Turbine Blades, ASM International, Ohio, (2002).

[8] Misao Hashimoto, Advances in Nano-Level Materials Characterization Technology, Nippon Steel Technical Report No. 91 January (2005).

[9] J.I. Goldstein, Scanning Electron Microscopy and X-ray Microanalysis, New York, Springer 3rd ed., (2003).

[10] D.B. Williams, C. B. Carter, Transmission Electron Microscopy: a Textbook for Materials Science New York, Springer, (1996).

[11] N. Miyajima, C. Holzapfel, J. Microscopy 238 (2010) 200-209.

[12] S. Tateno, R. Sinmyo, K. Hirose and H. Nishioka, Rev. of Sci. Inst. 80 (2009) 1-4.

[13] D. Prasetya, E. Sugiarti, F. Destyorini, and K. A Zaini Thosin, The influence of Cr and Al pack cementation on low carbon steel to improve oxidation resistance, AIP Conf. Proc. 1454, (2012) 234-237.

DOI: 10.1063/1.4730729
