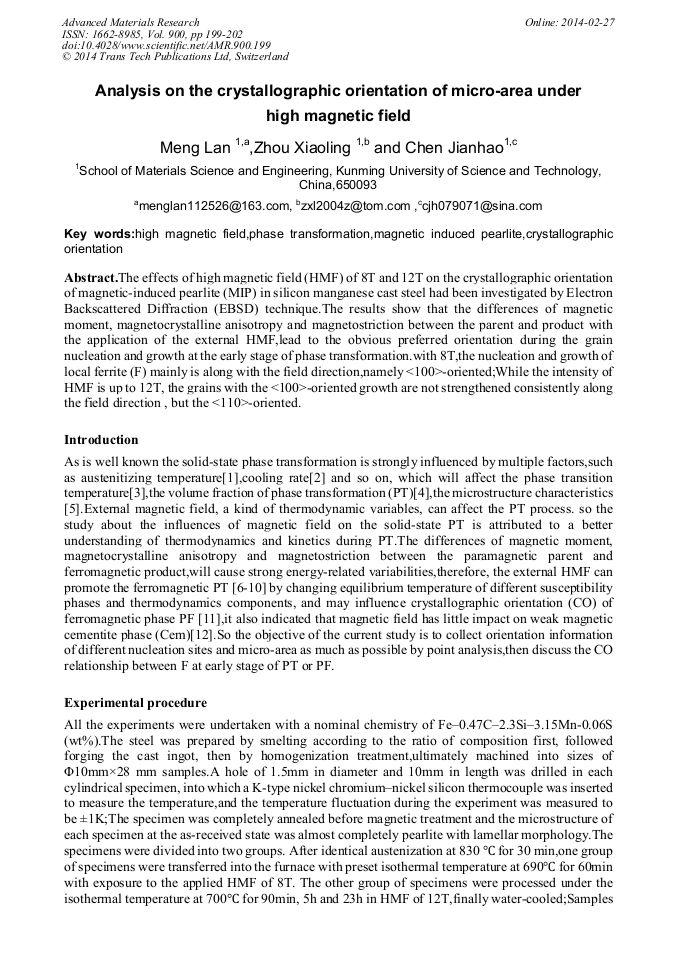

Analysis on the Crystallographic Orientation of Micro-Area under High Magnetic Field

Abstract:

The effects of high magnetic field (HMF) of 8T and 12T on the crystallographic orientation of magnetic-induced pearlite (MIP) in silicon manganese cast steel had been investigated by Electron Backscattered Diffraction (EBSD) technique.The results showthat the differences of magnetic moment 、magnetocrystalline anisotropy and magnetostriction between the parent and productwith the application of the external HMF,lead to the obvious preferred orientation during the grain nucleation and growth at the early stage of phase transformation.with 8T,the nucleation and growth of local ferrite(F) mainly is along with the field direction,namely<100>-oriented;While the intensity of HMF is up to 12T, the grains with the <100>-oriented growth are not strengthened consistently along the field direction , but the <110>-oriented.

• Periodical: Advanced Materials Research (Volume 900)
• Pages: 199-202
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.900.199
• Online since: February 2014
• Authors: Lan Meng, Xiao Ling Zhou, Jian Hao Chen
• Keywords: Crystallographic Orientation, High Magnetic Field, Magnetic Induced Pearlite, Phase Transformation

References

[1] Zheping Zhang, Yajing Han, Zhiming Gao, Yongchang Liu and Liushuan Yang: Transaction of Materials and Heat Treatment Vol. 30, (2009), p.50 In Chinese.

[2] Jianyu Song, Xiang Zhao, Minglong Gong, Shoujing Wang and Liang Zuo: Chinese Journal of Materials Research Vol. 23, (2009), p.49"In Chinese.

[3] Xiaoling Zhou, Ke Han, Zhongming Ren and Zeng Li: Advanced Materials Research Vol. 650, (2013), p.178.

[4] Xiaoling Zhou, Rong Zhou, Yehua Jiang and Zeng Li: Metal Heat Treatment Vol. 31, (2006), p.62"In Chinese.

[5] Xiaoling Zhou, Rong Zhou, Yehua Jiang and Zeng Li: Transaction of Materials and Heat Treatment Vol. 28, (2007), p.88"In Chinese.

[6] Koch C. C: Materials Science and Engineering Vol. 287, (2000), p.214.

[7] Yanan Wang, Daiqiang Liao and Zhanjun Wu: Transaction of Materials and Heat Treatment Vol. 26, (2005), p.106"In Chinese.

[8] G.M. Ludtka R.A. Jaramillo and R.A. Kisner: Scripta Materialia Vol. 51, (2004), p.172.

[9] Ohtsuka, Hideyuki: Current Opinion in Solid State and Materials Science Vol. 8, (2004), p.279.

[10] R.A. Jaramillo S.S. Babu and G.M. Ludtka: Scripta materialiaVol. 52, (2005), p.461.

[11] Hao Qiu, Xiaoling Zhou, Jianhua Wang, Zeng Li and Wen Liu: Transaction of Materials and Heat Treatment Vol. 34, (2013), p.58"In Chinese.

[12] H.D. Joo, S.U. Kim, N.S. Shin and Y.M. Koo: Materials Letters Vol. 43, (2000), p.227.
