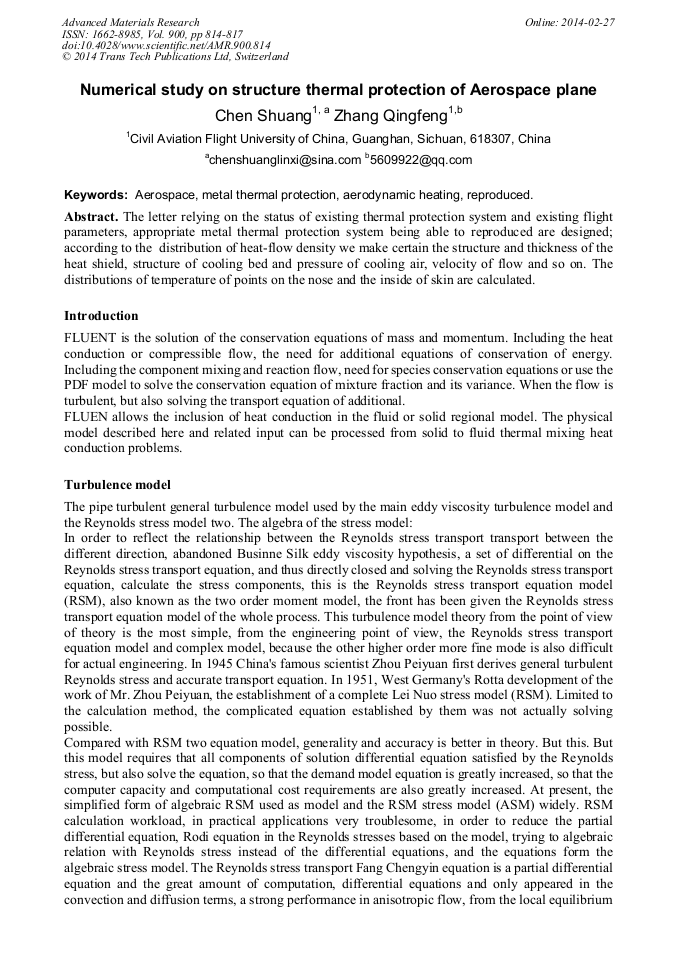

Numerical Study on Structure Thermal Protection of Aerospace Plane

Abstract:

The letter relying on the status of existing thermal protection system and existing flight parameters, appropriate metal thermal protection system being able to reproduced are designed; according to the distribution of heat-flow density we make certain the structure and thickness of the heat shield, structure of cooling bed and pressure of cooling air, velocity of flow and so on. The distributions of temperature of points on the nose and the inside of skin are calculated.

• Periodical: Advanced Materials Research (Volume 900)
• Pages: 814-817
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.900.814
• Online since: February 2014
• Authors: Shuang Chen, Qing Feng Zhang
• Keywords: Aerodynamic Heating, Aerospace, Metal Thermal Protection, Reproduced

References

[1] Gnoffo P A, an Upwind-biased point-implicit relaxation algorithm for viscous, Compressible Perfect Gas Flows, NASA, feb 1990, TP-2953.

DOI: 10.2514/6.1989-1972

[2] Aerosoft, GASP version 3, the general aerodynamic simulation program, computational flow analysis software for the scientist and engineer, User's Manual, Aerosoft Inc, Blacksburg, 1996 May, VA.

[3] Larson, T J, Whitmore S A, Ehernberger L J, Qualitative evaluation of a flush air data system at transonic speeds and high angles of attack. NASA-TP-2716, (1987).

[4] Anderson J D Jr. Hypersonic and high temperature gas dynamics. New York: Grawhill book Company, (1998).

[5] Fay J A, Riddell F R. Theory of stagnation point heat transfer in dissociated air. J Aero sci, 1985 25.

[6] Kemp N H, Stark W I, Stagnation point heat transfer measurement in dissociated Air, J A S 1958, Vol 25, No 2.
