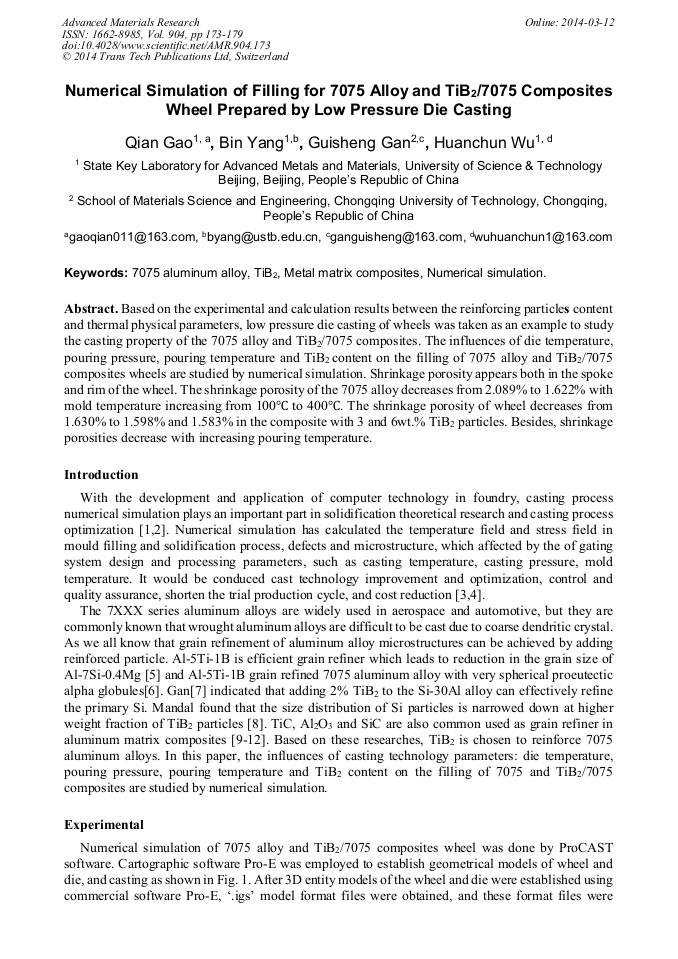

Numerical Simulation of Filling for 7075 Alloy and TiB₂/7075 Composites Wheel Prepared by Low Pressure Die Casting

Abstract:

Based on the experimental and calculation results between the reinforcing particles content and thermal physical parameters, low pressure die casting of wheels was taken as an example to study the casting property of the 7075 alloy and TiB₂/7075 composites. The influences of die temperature, pouring pressure, pouring temperature and TiB₂ content on the filling of 7075 alloy and TiB₂/7075 composites wheels are studied by numerical simulation. Shrinkage porosity appears both in the spoke and rim of the wheel. The shrinkage porosity of the 7075 alloy decreases from 2.089% to 1.622% with mold temperature increasing from 100°C to 400°C. The shrinkage porosity of wheel decreases from 1.630% to 1.598% and 1.583% in the composite with 3 and 6wt.% TiB₂ particles. Besides, shrinkage porosities decrease with increasing pouring temperature.

• Periodical: Advanced Materials Research (Volume 904)
• Pages: 173-179
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.904.173
• Online since: March 2014
• Authors: Qian Gao, Bin Yang*, Gui Sheng Gan, Huan Chun Wu
• Keywords: 7075 Aluminum Alloy, Metal Matrix Composite (MMC), Numerical Simulation, TiB₂

References

[1] S.V. Shepel, S. Paolucci, Numerical simulation of filling and solidific permanent mold casting, J. Applied Thermal Engineering. 22(2002)229-248.

DOI: 10.1016/s1359-4311(01)00068-0

[2] S.M.H. Mirbagheri, H. Esmaeileian, Simulation of melt flow in coated mould cavity in the casting process, J. Journal of Materials Processing Technology. 142(2003)493-507.

DOI: 10.1016/s0924-0136(03)00649-6

[3] B.C. Liu, T. Jing, Numerical Simulation and Quality Control of Casting Engineering, China Machine Press, Beijing, 2001, pp.5-7. (in Chinese).

[4] H.K. Mao, H. Xu, Numerical Simulation and Technology Design of Casting Proces, National Defence Industrial Press, Beijing, 2011, pp.1-3. (in Chinese).

[5] M.A. Easton, H. Kaufmann, W. Fragner, The effect of chemical grain refinement and low superheat pouring on the structure of NRC castings of aluminium alloy Al–7Si–0. 4Mg, J. Materials and Design. 34(2012)90-97.

DOI: 10.1016/j.msea.2006.01.078

[6] U.A. Curle, G. Govender, Semi-solid rheocasting of grain refined aluminum alloy 7075, J. Transactions of Nonferrous Metals Society of China. 20(2011)832-836.

DOI: 10.1016/s1003-6326(10)60590-0

[7] G.S. Gan, L. Zhang, S. Y. Bei, Y. Lu, B. Yang, Effect of TiB2 addition on microstructure of spray-formed Si-30Al composite, J. Transactions of Nonferrous Metals Society of China. 21(2011)2242-2247.

DOI: 10.1016/s1003-6326(11)61002-9

[8] B. Yang, G.S. Gan, L. Yang, M. Sun, H.B. Zhang, Z.Z. Fang, Microstructural characterization and wear behavior of in situ TiC/7075 composites synthesized by displacement reactions and spray forming, J. Materials Science and Engineering A. 528(2011).

DOI: 10.1016/j.msea.2010.09.103

[9] A. Mandal, M. Chakraborty, B.S. Murty, Ageing behaviour of A356 alloy reinforced with in-situ formed TiB2 particles, J. Materials Science and Engineering A. 489(2008) 220-226.

DOI: 10.1016/j.msea.2008.01.042

[10] H. Su, W.L. Gao, Z.H. Feng, Z. Lu, Processing, microstructure and tensile properties of nano-sized Al2O3 particle reinforced aluminum matrix composites, J. Materials and Design. 36(2012)590-596.

DOI: 10.1016/j.matdes.2011.11.064

[11] S.A. Sajjadi, H.R. Ezatpour, M. TorabiParizi, Comparison of microstructure and mechanical properties of A356 aluminum alloy/Al2O3 composites fabricated by stir and compo-casting processes, J. Materials and Design. 34(2012)106-111.

DOI: 10.1016/j.matdes.2011.07.037

[12] A. Mazahery, M. O. Shabani, Characterization of cast A356 alloy reinforced with nano SiC composites, J. Transactions of Nonferrous Metals Society of China. 22(2012)275-280.

DOI: 10.1016/s1003-6326(11)61171-0

[13] K.R. Ravi, R.M. Pillai, K.R. Amaranathan, B.C. Pai, M. Chakraborty, Fluidity of aluminum alloys and composites: A review, J. Journal of Alloys and Composites. 456(2008)201-210.

DOI: 10.1016/j.jallcom.2007.02.038
