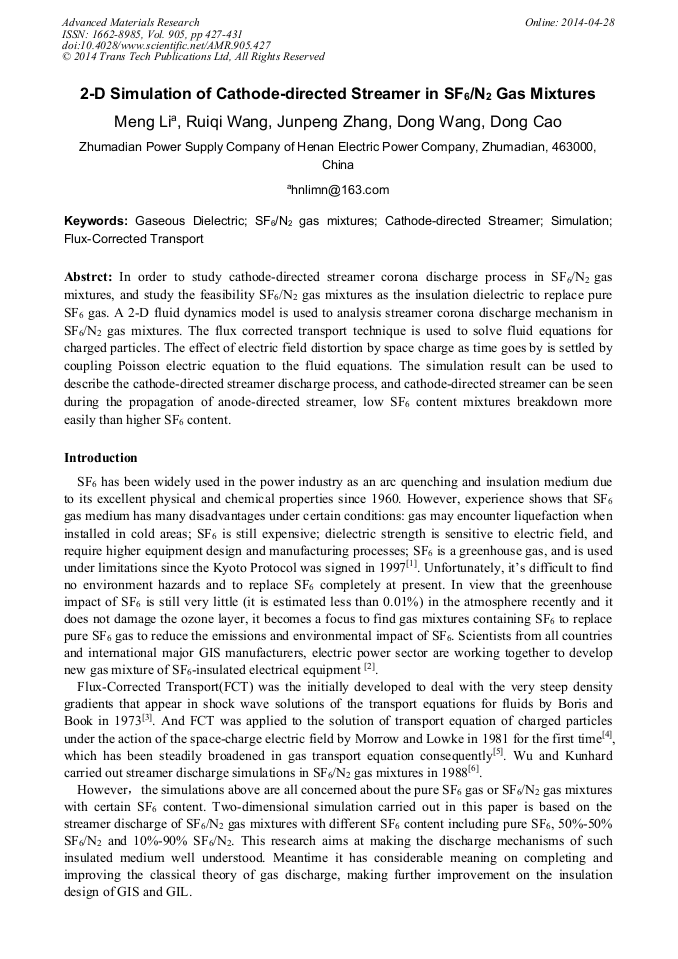

2-D Simulation of Cathode-Directed Streamer in SF₆/N₂ Gas Mixtures

Abstract:

SF₆ has been widely used in the power industry as an arc quenching and insulation medium due to its excellent physical and chemical properties since 1960. However, experience shows that SF₆ gas medium has many disadvantages under certain conditions: gas may encounter liquefaction when installed in cold areas; SF₆ is still expensive; dielectric strength is sensitive to electric field, and require higher equipment design and manufacturing processes; SF₆ is a greenhouse gas, and is used under limitations since the Kyoto Protocol was signed in 1997^[. Unfortunately, its difficult to find no environment hazards and to replace SF₆ completely at present. In view that the greenhouse impact of SF₆ is still very little (it is estimated less than 0.01%) in the atmosphere recently and it does not damage the ozone layer, it becomes a focus to find gas mixtures containing SF₆ to replace pure SF₆ gas to reduce the emissions and environmental impact of SF₆. Scientists from all countries and international major GIS manufacturers, electric power sector are working together to develop new gas mixture of SF₆-insulated electrical equipment ^[2].

• Periodical: Advanced Materials Research (Volume 905)
• Pages: 427-431
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.905.427
• Online since: April 2014
• Authors: Meng Li*, Rui Qi Wang, Jun Peng Zhang, Dong Wang, Dong Cao
• Keywords: Cathode-Directed Streamer, Flux-Corrected Transport, Gaseous Dielectric, SF₆/N₂ Gas Mixtures, Simulation

References

[1] Qiu Yuchang, Kufffel E. Comparison of SF6/N2 and SF6/ CO2 Gas Mixtures as Alternative to SF6 Gas [J]. IEEE Trans on Dielectrics and Electrical Insulation, 1999, 6(6): 892-89.

DOI: 10.1109/tei.1980.298335

[2] Guillen M, Buret F, Beroual A. Lightning impulse withstand of a gas-insulated line filled with N2/SF6 [C]. Eleventh International Symposium on High Voltage Engineering. (Conf. Publ. No. 467). London, UK, 1999, 3, 71-74.

DOI: 10.1049/cp:19990702

[3] Boris J P, Book D L. Flux-Corrected Transport I: SHASTA, A Fluid Transport Algorithm That Works[J]. J. Comp. Phy, 1973, 11(1): 38-69.

DOI: 10.1016/0021-9991(73)90147-2

[4] Morrow R, Lowke J J. Space-charge effects on drift dominated electron and plasma motion [J]. J. Phys. D: Appl. Phys. 1981, 14: 2027-(2034).

DOI: 10.1088/0022-3727/14/11/010

[5] Morrow R. Theory of negative corona in oxygen [J]. Phys Rev A, 1985, 32(3): 1799-1809.

[6] Wu C. and Kunhardt E E. Formation and propagation of streamers in N2 and N2-SF6 mixtures, Phys. Rev. A 37 (11), 1988: 4396-4406.

[7] Sato N., Discharge current induced by the motion of charged particles, J. Phys. D: Appl. Phys., 13, 1980: L3-6.

DOI: 10.1088/0022-3727/13/1/002

[8] Morrow R., A survey of the electron and ion transport properties of SF6, IEEE Trans. Plasma Sci. 14(3), 1986: 234-239.

DOI: 10.1109/tps.1986.4316534

[9] Morrow. R., Properties of streamers and streamer channels in SF6, Phys. Rev. A, 35(4), 1987: 1778-1785.

[10] Dhali Shirshak K. and Pal Anup. K., Numerical simulation of streamers in SF6, J. Appl. Phys. 63(5), 1988: 1355-1362.

[11] Wu C. and Kunhardt E E. Formation and propagation of streamers in N2 and N2-SF6 mixtures, Phys. Rev. A 37 (11), 1988: 4396-4406.
