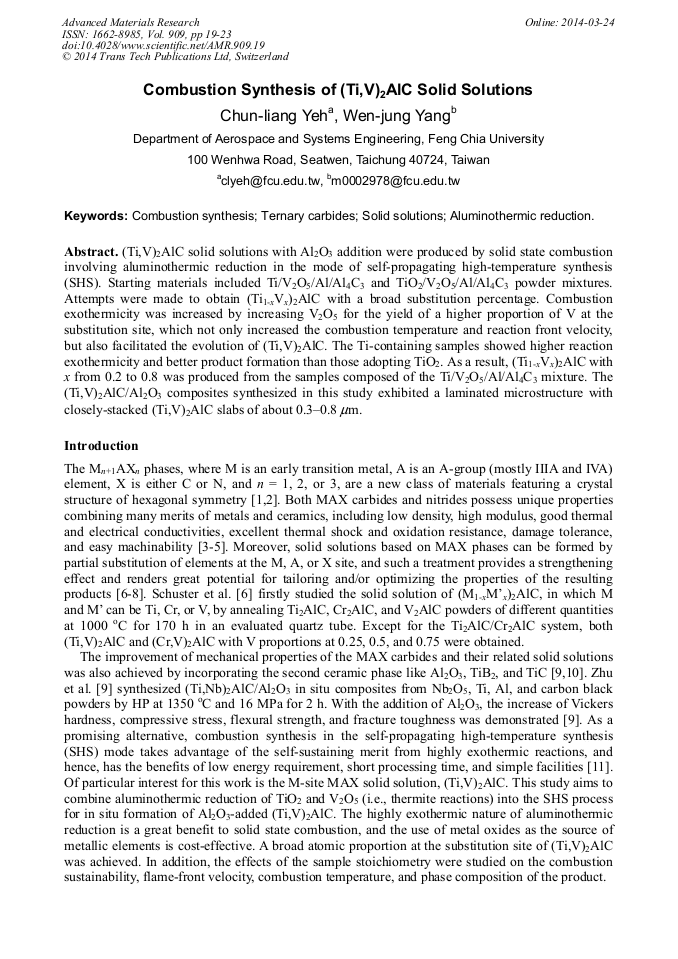

Combustion Synthesis of (Ti,V)₂AlC Solid Solutions

Abstract:

(Ti,V)₂AlC solid solutions with Al₂O₃ addition were produced by solid state combustion involving aluminothermic reduction in the mode of self-propagating high-temperature synthesis (SHS). Starting materials included Ti/V₂O₅/Al/Al₄C₃ and TiO₂/V₂O₅/Al/Al₄C₃ powder mixtures. Attempts were made to obtain (Ti_1-xV_x)₂AlC with a broad substitution percentage. Combustion exothermicity was increased by increasing V₂O₅ for the yield of a higher proportion of V at the substitution site, which not only increased the combustion temperature and reaction front velocity, but also facilitated the evolution of (Ti,V)₂AlC. The Ti-containing samples showed higher reaction exothermicity and better product formation than those adopting TiO₂. As a result, (Ti_1-xV_x)₂AlC with x from 0.2 to 0.8 was produced from the samples composed of the Ti/V₂O₅/Al/Al₄C₃ mixture. The (Ti,V)₂AlC/Al₂O₃ composites synthesized in this study exhibited a laminated microstructure with closely-stacked (Ti,V)₂AlC slabs of about 0.30.8 μm.

• Periodical: Advanced Materials Research (Volume 909)
• Pages: 19-23
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.909.19
• Online since: March 2014
• Authors: Chun Liang Yeh*, Wen Jung Yang
• Keywords: Aluminothermic Reduction, Combustion Synthesis, Solid Solution, Ternary Carbides

References

[1] M.W. Barsoum: Prog. Solid State Chem. Vol. 28 (2000), p.201.

[2] P. Eklund, M. Beckers, U. Jansson, H. Högberg, and L. Hultman: Thin Solid Films Vol. 518 (2010), p.1851.

DOI: 10.1016/j.tsf.2009.07.184

[3] N.V. Tzenov and M.W. Barsoum: J. Am. Ceram. Soc. Vol. 83 (2000), p.825.

[4] Z.J. Lin, M.J. Zhuo, Y.C. Zhou, M.S. Li, and J.Y. Wang: Acta Mater. Vol. 54 (2006), p.1009.

[5] Z.J. Lin, M.J. Zhou, M.S. Li, J.Y. Wang, and Y.C. Zhou: Scripta Mater. Vol. 56 (2007), p.1115.

[6] J.C. Schuster, H. Nowotny, and C. Vaccaro: J. Solid State Chem. Vol. 32 (1980), p.213.

[7] I. Salama, T. El-Raghy, and M.W. Barsoum: J. Alloys Compd. Vol. 347 (2002), p.271.

[8] Y.C. Zhou, J.X. Chen, and J.Y. Wang: Acta Mater. Vol. 54 (2006), p.1317.

[9] J. Zhu, N. Han, and A. Wang: Mater. Sci. Eng. A Vol. 538 (2012), pp.7-12.

[10] J. Yang, L. Pan, W. Gu, T. Qiu, Y. Zhang, and S. Zhu: Ceram. Int. Vol. 38 (2012), p.649.

[11] A.G. Merzhanov: J. Mater. Process. Technol. Vol. 56 (1996), p.222.

[12] C.L. Yeh and J.Z. Lin: Intermetallics Vol. 33 (2013), p.126.
