Study on Milling Force of High Volume Fraction SiCp/Al Composites with Ultrasonic Longitudinal and Torsional Vibration High Speed Milling

Abstract:

High volume fraction SiCp/Al composites were milled in ultrasonic longitudinal and torsional vibration high speed milling and high speed milling in this experiment, study on effects of different milling parameters (milling depth ap, feed engagement fz, the milling speed vz) on milling force. The results shows that in the same cutting parameters ,the three milling force of ultrasonic longitudinal and torsional vibration high speed milling are smaller than that of high speed milling, and milling forces of two milling method increase with the add of the milling depth and feed engagement ,but they aren't fold increase. Milling forces of two milling method decrease with the add of the the minlling speed,and the changes become gently when the the minlling speed run up to 170m/min, with the further increase of the milling speed,ultrasonic vibration high speed milling will translate to high speed milling, this is because the torsional vibration is submerged.

You might also be interested in these eBooks

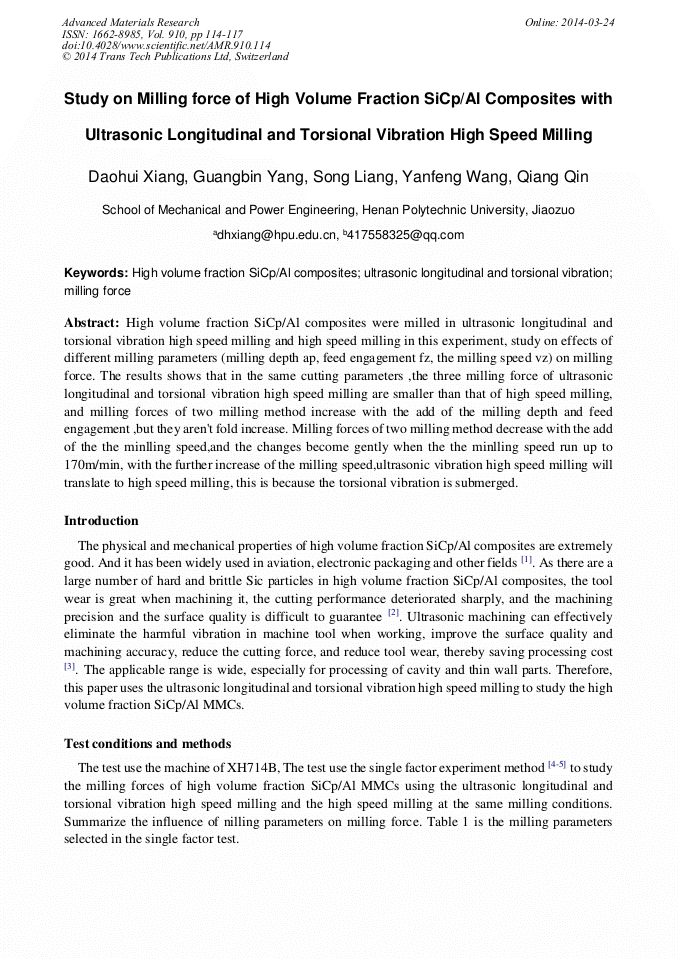

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 910)

Pages:

114-117

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.910.114

Citation:

Cite this paper

Online since:

March 2014

Authors:

Dao Hui Xiang, Guang Bin Yang, Song Liang, Yan Feng Wang, Qiang Qin

Keywords:

High Volume Fraction SiCp/Al Composites, Milling Force, Torsional Vibration, Ultrasonic Longitudinal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Feng Jiao, Bo Zhao, Chuan Shao Liu. Study on cutting force in ultrasonic vibration turning of SiCp / Al composite with PCD cutter [J], Tool technology, 2002, 36(8): 22-25.

Google Scholar

[2] Xiao Lei Dong. Study on the mechanism of SiCp/Al composites with ultrasonic vibration milling[D]. Henan: journal of Henan Polytechnic University, (2009).

Google Scholar

[3] Guofu Gao, Experimental research on ultrasonic vibration milling metal matrix composites SiCp/Al, Advanced Materials Research [J]. 2011, 291-294: 1725-1728.

DOI: 10.4028/www.scientific.net/amr.291-294.1725

Google Scholar

[4] Wen Qing Liu. Experimental design[M]. Beijing: Tsinghua University press, (2005).

Google Scholar

[5] Yun Yan Li, Chuan Rong Hu. Experimental design and date processing[M]. Chemical industry press, (2008).

Google Scholar
