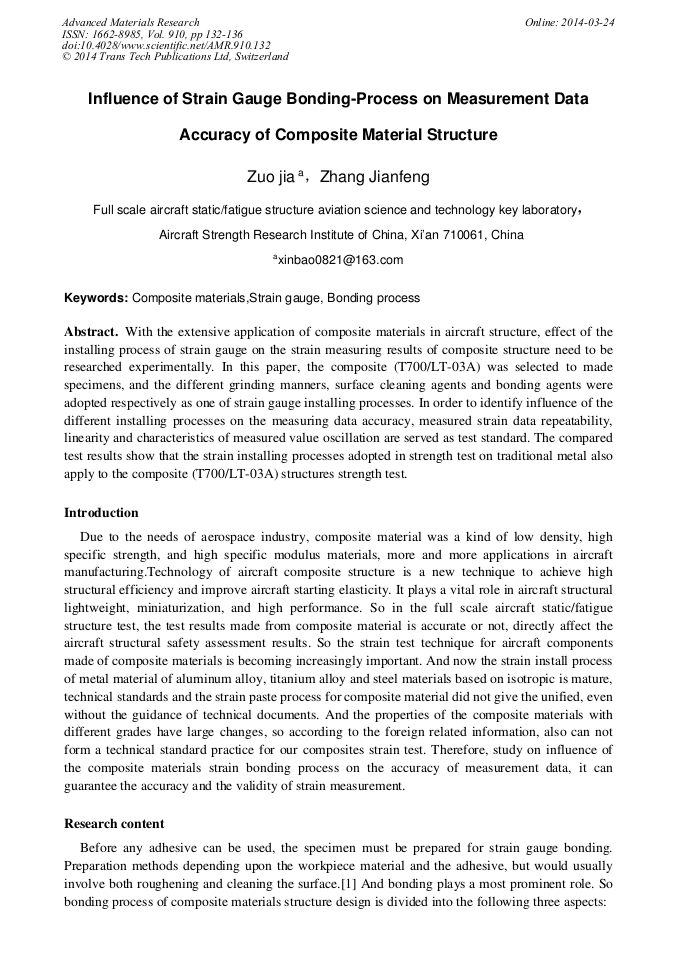

Influence of Strain Gauge Bonding-Process on Measurement Data Accuracy of Composite Material Structure

Abstract:

With the extensive application of composite materials in aircraft structure, effect of the installing process of strain gauge on the strain measuring results of composite structure need to be researched experimentally. In this paper, the composite (T700/LT-03A) was selected to made specimens, and the different grinding manners, surface cleaning agents and bonding agents were adopted respectively as one of strain gauge installing processes. In order to identify influence of the different installing processes on the measuring data accuracy, measured strain data repeatability, linearity and characteristics of measured value oscillation are served as test standard. The compared test results show that the strain installing processes adopted in strength test on traditional metal also apply to the composite (T700/LT-03A) structures strength test.

• Periodical: Advanced Materials Research (Volume 910)
• Pages: 132-136
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.910.132
• Online since: March 2014
• Authors: Jia Zuo*, Jian Feng Zhang
• Keywords: Bonding Process, Composite Material, Strain Gauge

References

[1] Karl Hoffmann: Practical hints for the installation of strain gages. (2001).

[2] M.E. Tuttle and H.F. Brinson: Resistance-foil Strain-gage Technology as Applied to Composite Materials. (2009) p.55.

[3] Nick Gittins: Short Guide to Strain Gauging Methods. (2003).
