Manufacturing Technique and Interfacial Modification of Polypropylene/Short Glass Fiber Composites

Jia Horng Lin; Zheng Lan Lin; Jin Mao Chen; Ching Wen Lou

doi:10.4028/www.scientific.net/AMR.910.250

Paper Titles

Mechanical and Puncture Resistance Property of Inflaming-Retarding Fiber Composite
p.234

Manufacturing Techniques and Functional Properties of the Bamboo Charcoal/Antibacterial/Stainless Steel Metal Composite Woven Fabric
p.238

Manufacturing Technique and Property Evaluations of Three-Dimensional Fabric/Foam Composites
p.242

Manufacturing Technique and Mechanical Property Evaluations of Polypropylene/Short Coir/Short Glass Fiber Wood Plastic Composites
p.246

Manufacturing Technique and Interfacial Modification of Polypropylene/Short Glass Fiber Composites
p.250

Manufacturing and Mechanical Evaluation of HRBP/PPTA Intra-Ply Hybrid Nonwovens for Protecting Cushioning Composites
p.254

Evaluation of Static Impact Resistance in Nonwovens/Glass Plain Fabric Sandwich Structural Hybrid Laminates
p.258

Electromagnetic Shielding Effectiveness and Manufacture Technique of Functional Metal Composite Knitted Fabrics
p.262

Effects of Needle-Punch Depth on Properties of PET/LPET/Kevlar Nonwoven Geotextiles
p.266

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 910Manufacturing Technique and Interfacial...

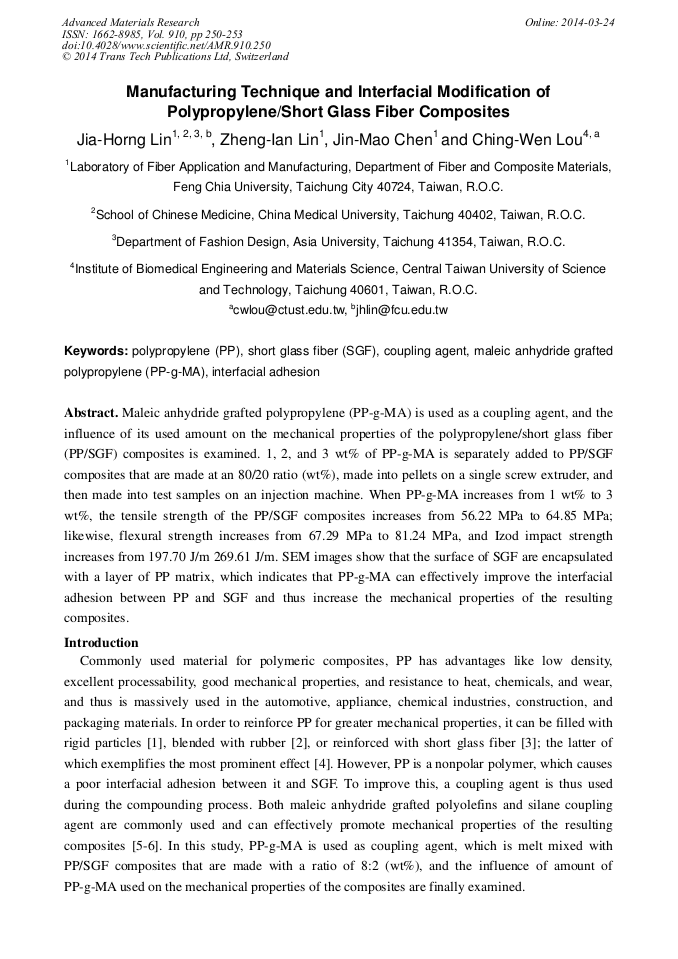

Manufacturing Technique and Interfacial Modification of Polypropylene/Short Glass Fiber Composites

Abstract:

Maleic anhydride grafted polypropylene (PP-g-MA) is used as a coupling agent, and the influence of its used amount on the mechanical properties of the polypropylene/short glass fiber (PP/SGF) composites is examined. 1, 2, and 3 wt% of PP-g-MA is separately added to PP/SGF composites that are made at an 80/20 ratio (wt%), made into pellets on a single screw extruder, and then made into test samples on an injection machine. When PP-g-MA increases from 1 wt% to 3 wt%, the tensile strength of the PP/SGF composites increases from 56.22 MPa to 64.85 MPa; likewise, flexural strength increases from 67.29 MPa to 81.24 MPa, and Izod impact strength increases from 197.70 J/m 269.61 J/m. SEM images show that the surface of SGF are encapsulated with a layer of PP matrix, which indicates that PP-g-MA can effectively improve the interfacial adhesion between PP and SGF and thus increase the mechanical properties of the resulting composites.
