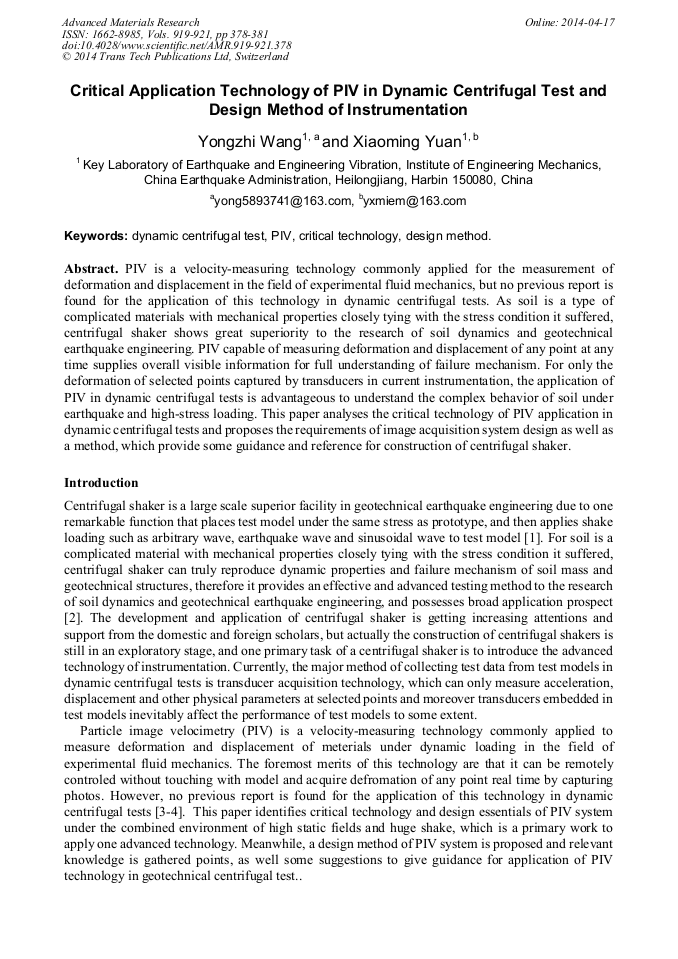

Critical Application Technology of PIV in Dynamic Centrifugal Test and Design Method of Instrumentation

Abstract:

PIV is a velocity-measuring technology commonly applied for the measurement of deformation and displacement in the field of experimental fluid mechanics, but no previous report is found for the application of this technology in dynamic centrifugal tests. As soil is a type of complicated materials with mechanical properties closely tying with the stress condition it suffered, centrifugal shaker shows great superiority to the research of soil dynamics and geotechnical earthquake engineering. PIV capable of measuring deformation and displacement of any point at any time supplies overall visible information for full understanding of failure mechanism. For only the deformation of selected points captured by transducers in current instrumentation, the application of PIV in dynamic centrifugal tests is advantageous to understand the complex behavior of soil under earthquake and high-stress loading. This paper analyses the critical technology of PIV application in dynamic centrifugal tests and proposes the requirements of image acquisition system design as well as a method, which provide some guidance and reference for construction of centrifugal shaker.

• Periodical: Advanced Materials Research (Volumes 919-921)
• Pages: 378-381
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.919-921.378
• Online since: April 2014
• Authors: Yong Zhi Wang, Xiao Ming Yuan
• Keywords: Critical Technology, Design Method, Dynamic Centrifugal Test, PIV

References

[1] Xiaoming YUAN, Zhengzhong CAO, Rui SUN, et al: Chinese Journal of Rock Mechanics and Engineering, 2009, 28(6): 1288-1296.

[2] Jianqun JIANG, Huafei ZHOU, Tuqiao ZHANG: China Journal of Highway and Transport. Vol. 19-1(2006), p.6 (in Chinese ).

[3] Jun LIU, Fuhai LIU, Xianjing KONG, et el: Chinese Journal of Geotechnical Engineering. Vol. 32-3(2010), p.368 (in Chinese ).

[4] Min Zhang and Charles WW NG: Chinese Journal of Rock Mechanics and Engineering. Vol. 29-S2(2010), p.3858 (in Chinese ).

[5] Daniel W. WILSON, Ross W. BOULANGER, Xin FENG, et al: The NEES Geotechnical Centrifuge at UC Davis[C]. 13WCEE (2004).

[6] Matsuo Osamu, Tsutsumi Tatsuya, Okamura Mitsu, et al: Development and operation of large centrifuge at PWRI[C]. NIST (1998).

[7] M.W. Gui, D.S. Jeng: Open Civil Engineering Journal. Vol. 3 (2009), p.1.
