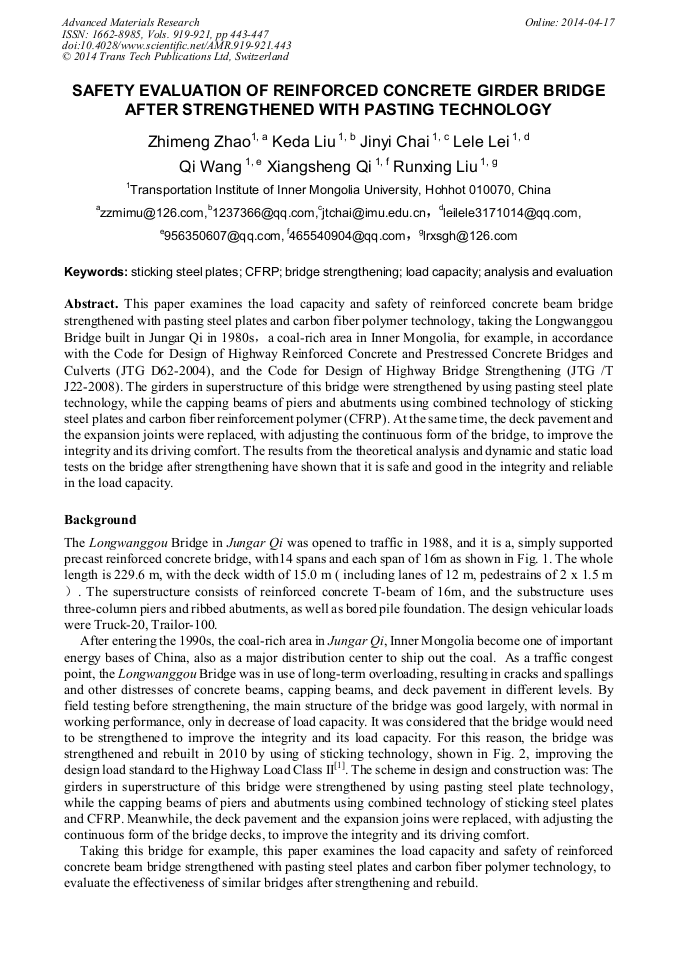

Safety Evaluation of Reinforced Concrete Girder Bridge after Strengthened with Pasting Technology

Abstract:

This paper examines the load capacity and safety of reinforced concrete beam bridge strengthened with pasting steel plates and carbon fiber polymer technology, taking the Longwanggou Bridge built in Jungar Qi in 1980s,a coal-rich area in Inner Mongolia, for example, in accordance with the Code for Design of Highway Reinforced Concrete and Prestressed Concrete Bridges and Culverts (JTG D62-2004), and the Code for Design of Highway Bridge Strengthening (JTG /T J22-2008). The girders in superstructure of this bridge were strengthened by using pasting steel plate technology, while the capping beams of piers and abutments using combined technology of sticking steel plates and carbon fiber reinforcement polymer (CFRP). At the same time, the deck pavement and the expansion joints were replaced, with adjusting the continuous form of the bridge, to improve the integrity and its driving comfort. The results from the theoretical analysis and dynamic and static load tests on the bridge after strengthening have shown that it is safe and good in the integrity and reliable in the load capacity.

• Periodical: Advanced Materials Research (Volumes 919-921)
• Pages: 443-447
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.919-921.443
• Online since: April 2014
• Authors: Zhi Meng Zhao*, Ke Da Liu, Jin Yi Chai, Le Le Lei, Qi Wang, Xiang Sheng Qi, Run Xing Liu
• Keywords: Analysis and Evaluation, Bridge Strengthening, CFRP, Load Capacity, Sticking Steel Plates

References

[1] JTG D60-2004, General Specification for Design of Highway Bridges and Culverts [S] Beijing: Ministry of Communications, (2004).

[2] JTG D62-2004, Code for Design of Highway Reinforced Concrete and Prestressed Concrete Bridges and Culverts [S] Beijing: Ministry of Communications, (2004).

[3] JTG / T J22-2008, Code for Design of Highway Bridge strengthening [S] Beijing: Ministry of Communications, (2008).

[4] Yu Tianlai, Zhang Linyuan, Geng Liwei, Han Yang. Flexural performance test on reinforced concrete beam strengthened externally with CFRP tendons [J]. Shenyang Architecture University (Natural Science Edition), 2011, 27 (1): 70- 78.

[5] Zhang Yu, Cui Xiguang, Wang Yongjia, Han Yang. Analysis on with strengthening the plates at the ends of concrete beam with CFRP [J]. Low Temperature Building Technology. 2010 (12).

[6] Dong Jiangfeng, Wang Qingyuan, Qiu Cichang, Zhu Yanmei, Yan Huiqun. Experimental study on fracture properties of reinforced concrete beams bonded externally with CFRP [J]. Journal of Civil Engineering. 2010 (S2).

DOI: 10.1109/icetce.2011.5776191

[7] Hong Fang, Zhang Zheng. Analysis on adhesive interface stress in reinforced concrete beam [J]. Henan Polytechnic University (Natural Science Edition) 2013 (04).

[8] Qi Zhihe, Meng Yun. Applications of pasting steel plate method in the T-beam bridge [J]. Sichuan Building Materials, 2013, 39: 142 -144.

[9] Meng Fanjie. Research on pasting technology of steel plate to reinforced concrete and engineering applications [D], Tianjin: Tianjin Construction Engineering University, (2011).

[10] Davoudi S, Vogel H, Svecova D, eta1. CFRP prestressed high-strength concrete prisms subjected to direct tension [J3. Journal of Composites for Construction, 2008, 12 (6): 588-595.

DOI: 10.1061/(asce)1090-0268(2008)12:6(588)

[11] Houlton, Lees JM. Eflqcient CFRP strap configurations for the shear strengthening of reinforced concrete T-beams [S]. Journal of Composites for Construction, 2009, 13 (1): 45-52.

DOI: 10.1061/(asce)1090-0268(2009)13:1(45)
