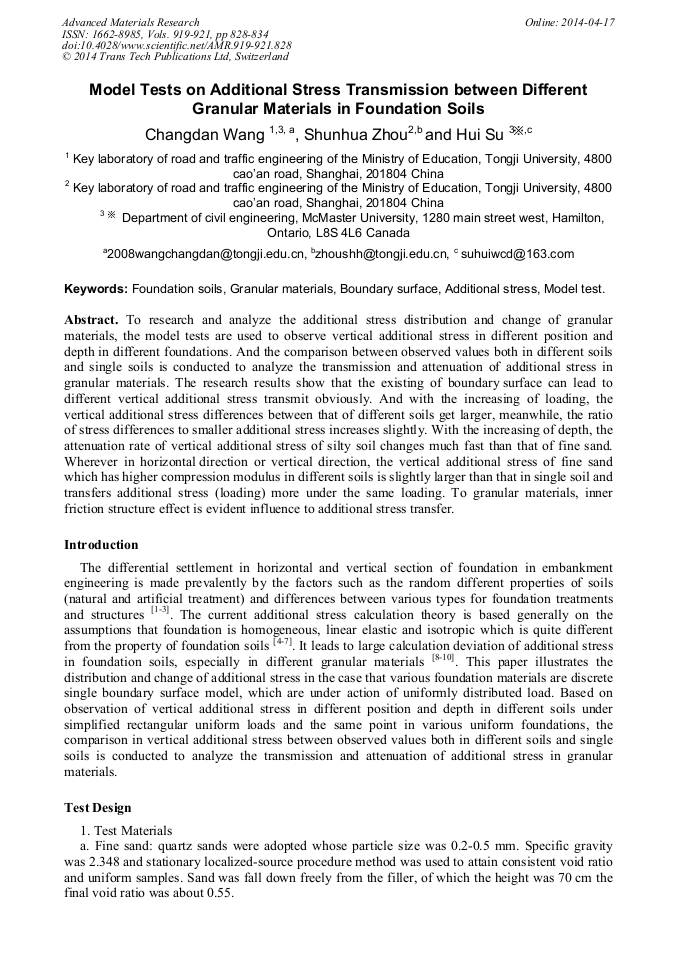

Model Tests on Additional Stress Transmission between Different Granular Materials in Foundation Soils

Abstract:

To research and analyze the additional stress distribution and change of granular materials, the model tests are used to observe vertical additional stress in different position and depth in different foundations. And the comparison between observed values both in different soils and single soils is conducted to analyze the transmission and attenuation of additional stress in granular materials. The research results show that the existing of boundary surface can lead to different vertical additional stress transmit obviously. And with the increasing of loading, the vertical additional stress differences between that of different soils get larger, meanwhile, the ratio of stress differences to smaller additional stress increases slightly. With the increasing of depth, the attenuation rate of vertical additional stress of silty soil changes much fast than that of fine sand. Wherever in horizontal direction or vertical direction, the vertical additional stress of fine sand which has higher compression modulus in different soils is slightly larger than that in single soil and transfers additional stress (loading) more under the same loading. To granular materials, inner friction structure effect is evident influence to additional stress transfer.

• Periodical: Advanced Materials Research (Volumes 919-921)
• Pages: 828-834
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.919-921.828
• Online since: April 2014
• Authors: Chang Dan Wang, Shun Hua Zhou, Hui Su*
• Keywords: Additional Stress, Boundary Surface, Foundation Soils, Granular Materials, Model Test

References

[1] S.F. Edwards, D.V. Grinev. Statistical mechanics of granular materials: stress propagation and distribution of contact forces. Granular Matter, Vol. 4(4). (2003) pp.147-153.

DOI: 10.1007/s10035-002-0117-3

[2] I.F. Collins ,B. Muhunthan. On the relationship between stress-dilatancy, anisotropy, and plastic dissipation for granular materials. Geotechnique, Vol. 53(7). (2003) pp.611-618.

DOI: 10.1680/geot.2003.53.7.611

[3] C.D. Wang, S.H. Zhou, B.L. Wang, and. H. Su. Safety Control Measures in High Speed Railway: Comparative Analysis of New Embankment Reinforcing Structures. Disaster Advances, Vol. 6 (13), (2013) pp.321-330.

[4] R. Kuwano , R.J. Jardine . On the applicability of cross-anisotropic elasticity to granular materials at very small strains. Geotechnique, Vol. 52(10). (2002) pp.727-749.

DOI: 10.1680/geot.2002.52.10.727

[5] B. Cambou, M. Jean, F. Radjai. Micromechanics of granular materials. Hoboken: John Wiley & Sons, Inc. (2011).

[6] C.D. Wang, B.L. Wang, P.J. Guo, and S.H. Zhou. Experimental analysis on settlement controlling of geogrid-reinforced pile-raft-supported embankments in high-speed railway. Acta Geotechnica. Vol. 12(6) (2013) pp.20-31.

DOI: 10.1007/s11440-013-0288-6

[7] J.F. Geng. Green's function measurement of force transmission in 2D granular material. Physica D. Vol. 182(3) . (2003) pp.274-303.

[8] D.W. Howell. Stress distribution and fluctuations in static and quasi-static granular systems. [Doctoral dissertation], Duke University, USA(1999).

[9] J.F. Geng, D.W. Howell. Footprints in sand: the response of a granular material to local perturbations. Physica review letters. Vol. 87(3). (2001) pp.1-4.

[10] R.P. Hartley. Logarithmic rate dependence of force netwoks in sheared granular materials. Nature. Vol. 421(27). (2003) pp.928-931.

DOI: 10.1038/nature01394
