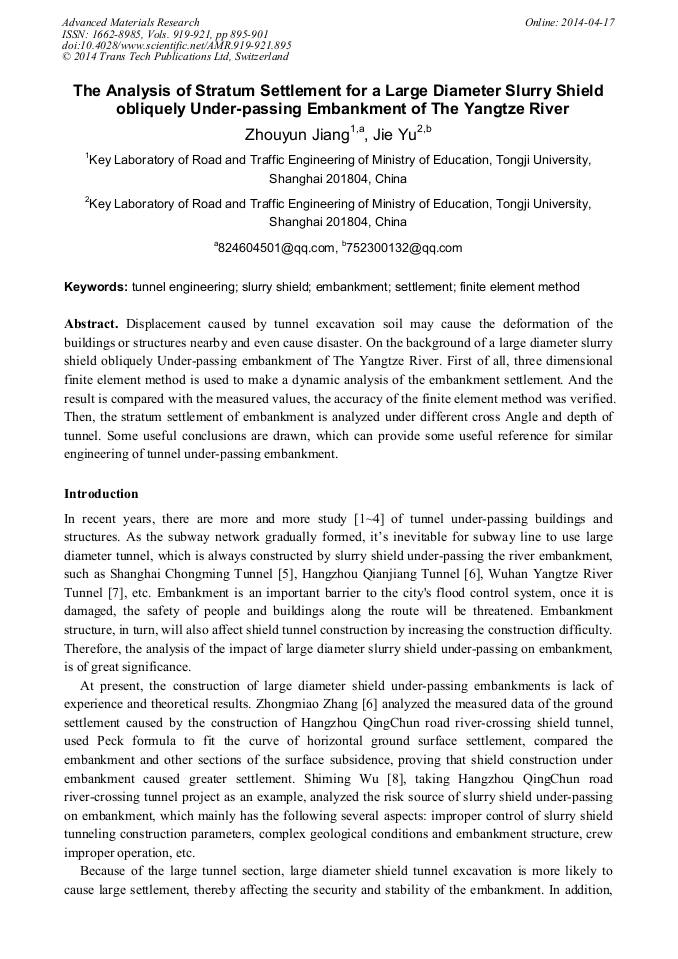

The Analysis of Stratum Settlement for a Large Diameter Slurry Shield Obliquely Under-Passing Embankment of the Yangtze River

Abstract:

Displacement caused by tunnel excavation soil may cause the deformation of the buildings or structures nearby and even cause disaster. On the background of a large diameter slurry shield obliquely Under-passing embankment of The Yangtze River. First of all, three dimensional finite element method is used to make a dynamic analysis of the embankment settlement. And the result is compared with the measured values, the accuracy of the finite element method was verified. Then, the stratum settlement of embankment is analyzed under different cross Angle and depth of tunnel. Some useful conclusions are drawn, which can provide some useful reference for similar engineering of tunnel under-passing embankment.

• Periodical: Advanced Materials Research (Volumes 919-921)
• Pages: 895-901
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.919-921.895
• Online since: April 2014
• Authors: Zhou Yun Jiang, Jie Yu
• Keywords: Embankment, Finite Element Method (FEM), Settlement, Slurry Shield, Tunnel Engineering

References

[1] Hongyu Yang, Jianmin Zhou. Discussion on the development of under-river in China [J]. Underground Space, China, 2000, 03: 209-213+239.

[2] Wensheng Mei, Xuefeng Chen, Xiaobo Zhou, etc. Real-time Deformation Monitoring and Risk Controlling During Shield Under-crossing Existing Tunnel [J]. Geomatics and Information Science of Wuhan University, China, 2011, 08: 923-927.

[3] Jiwei Li. Study on the Influence of Undercrossed Subway Shield Tunnel on the Existing Tunnel [D]. Xian University of Science and Technology, China, (2012).

[4] Jianqi Shen, Xianglong Jin, Jiyun Wang. Impact Analysis of Tunneling Process on Flood Levee by Three Dimensional Numerical Simulation with Verification by Test Section [J]. Journal of System Simulation, China, 2008, 16: 4291-4295.

[5] Hua Yuan, Qinghe Zhang, Xiangdong Hu, etc. Analysis of Coupled Anisotropic Seepage and Stress of Large Diameter River-crossing Shield Tunnel [J]. Chinese Journal of Rock Mechanics and Engineering, China, 2008, 10: 2130-2137.

[6] Zhongmiao Zhang, Cungang Lin, Shiming Wu, etc. Analysis and control of ground settlement of embankments in construction of cross-river shield tunnels [J]. Chinese Journal of Geotechnical Engineering, China, 2011, 06: 977-984.

DOI: 10.1109/icetce.2011.5775691

[7] Chuan He, Jiangang Zhang, Zheng Yang. Model test study on the mechanical characteristics of segment lining for the Wuhan Yangtze River tunnel [J]. China Civil Engineering Journal, China, 2008, 12: 85-90.

[8] Shiming Wu, Cungang Lin, Zhongmiao Zhang, etc. Risk Analysis and Control for Slurry Shield Under-passing embankment [J]. Chinese Journal of Rock Mechanics and Engineering, China, 2011, 05: 1034-1042.

DOI: 10.1109/icetce.2011.5775691

[9] Yun Zhang, Zongze Ying, Yongfu Xu. Analysis on Three-dimensional Ground Surface Deformations Due to Shield Tunnel [J]. Chinese Journal of Rock Mechanics and Engineering, China, 2002, 03: 388-392.

[10] Zhansheng Wan, Daiyun Zhu, Yongxu Xia. Numerical Simulation Study of Settlement on Shield Tunnel after Grouting of Wall Formation [J]. Journal of Hebei University of Technology, China, 2011, 01: 110-113.
