Contributions of Grain Boundary Sliding and Solute Drag Creep to High-Temperature Ductility in Fine-Grained Polycrystalline 5083 Alloys

Abstract:

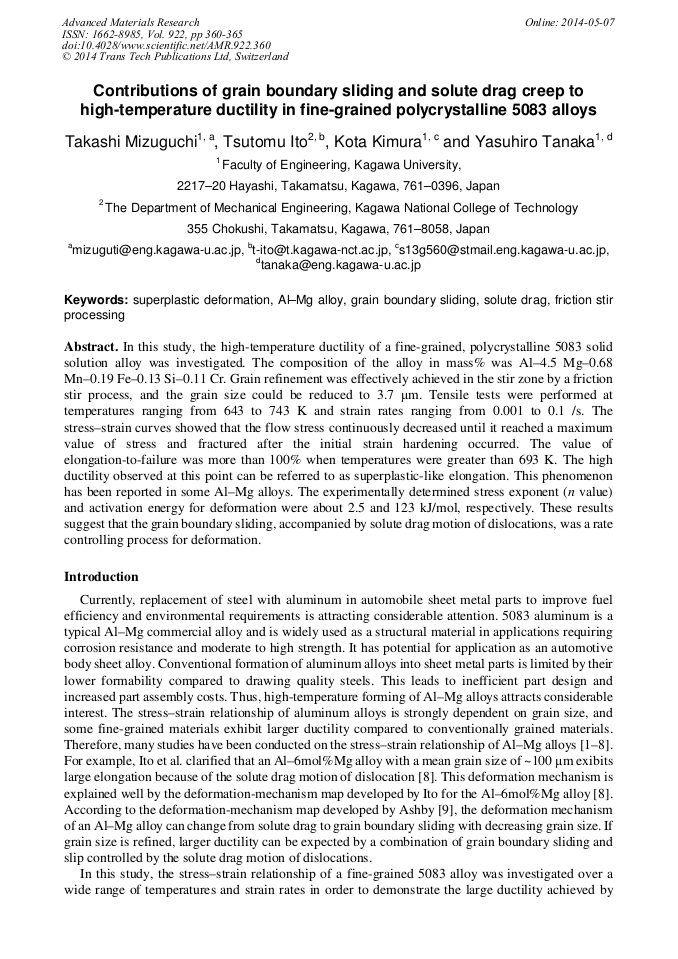

In this study, the high-temperature ductility of a fine-grained, polycrystalline 5083 solid solution alloy was investigated. The composition of the alloy in mass% was Al–4.5 Mg–0.68 Mn–0.19 Fe–0.13 Si–0.11 Cr. Grain refinement was effectively achieved in the stir zone by a friction stir process, and the grain size could be reduced to 3.7 μm. Tensile tests were performed at temperatures ranging from 643 to 743 K and strain rates ranging from 0.001 to 0.1 /s. The stress–strain curves showed that the flow stress continuously decreased until it reached a maximum value of stress and fractured after the initial strain hardening occurred. The value of elongation-to-failure was more than 100% when temperatures were greater than 693 K. The high ductility observed at this point can be referred to as superplastic-like elongation. This phenomenon has been reported in some Al–Mg alloys. The experimentally determined stress exponent (n value) and activation energy for deformation were about 2.5 and 123 kJ/mol, respectively. These results suggest that the grain boundary sliding, accompanied by solute drag motion of dislocations, was a rate controlling process for deformation.

• Periodical: Advanced Materials Research (Volume 922)
• Pages: 360-365
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.922.360
• Online since: May 2014
• Authors: Takashi Mizuguchi*, Tsutomu Ito, Kota Kimura, Yasuhiro Tanaka
• Keywords: Al-Mg Alloy, Friction Stir Processing (FSP), Grain Boundary Sliding, Solute Drag, Superplastic Deformation

References

[1] M.A. Garcia–Bernal, R.S. Mishra, R. Verma, D. Hernandez–Silva., Hot deformation behavior of friction–stir processed strip–cast 5083 aluminum alloys with different Mn contents, Mater. Sci. Eng. A 534 (2012) 186-192.

DOI: 10.1016/j.msea.2011.11.057

[2] R. Verma, A.K. Ghosh, S, Kim, C. Kim, Grain refinement and superplasticity in 5083 Al, Mater. Sci. Eng. A 191 (1995) 143-150.

DOI: 10.1016/0921-5093(94)09644-9

[3] K.T. Park, H.J. Lee, C.S. Lee, B.D. Ahn, H.S. Cho, D.H. Shin, Effect of ECAP strain on deformation behavior at low temperature superplastic regime of ultrafine grained 5083 Al alloy fabricated by ECAP, Mater. Trans. 45 (2002) 958-963.

DOI: 10.2320/matertrans.45.958

[4] M. Noda, M. Hirohashi, K. Funami, Low temperature superplasticity and its deformation mechanism in grain refinement of Al–Mg alloy by multi–axial alternative forging, Mater. Trans. 44 (2003) 2288-2297.

DOI: 10.2320/matertrans.44.2288

[5] I.C. Hsiao, J.C. Hunag, Deformation mechanisms during low- and high-temperature superplasticity in 5083 Al–Mg alloy, Metall. Mater. Trans. A 33 (2002) 1373-1384.

DOI: 10.1007/s11661-002-0062-0

[6] N. Tsuji, K. Shiotsuki, Y. Saito. Superplasticity of ultra–fine grained Al–Mg alloy produced by accumulative roll–bonding, Mater. Trans. 40 (1999) 765-771.

DOI: 10.2320/matertrans1989.40.765

[7] I.C. Hsiao, J.C. Hunag, Development of low temperature superplasticity in commercial 5083 Al–Mg alloys, Scripta Mater. 40 (1999) 697-703.

DOI: 10.1016/s1359-6462(98)00460-6

[8] T. Ito and M. Otsuka, Superplasticity in class I type solid solution alloys, Materia Japan 43 (2004) 931-937.

[9] H.J. Frost, M.F. Ashby (Ed.), Deformation-Mechanism Maps: The Plasticity and Creep of Metals and Ceramics, first ed., Pergamon Press, Oxford, 1982.

[10] R.S. Mishra, M.W. Mahoney, S.X. McFadden, N.A. Mara, A.K. Mukherjee, High strain rate superplasticity in a friction stir processed 7075 Al alloy, Scripta Mater. 42 (2000) 163-168.

DOI: 10.1016/s1359-6462(99)00329-2

[11] F.J. Humphreys, Grain and subgrain characterisation by electron backscatter diffraction, J. Mater. Sci. 36 (2001) 3833-3854.

[12] R.S. Mishra, Z.Y. Ma, Friction stir welding and processing, Mater. Sci. Eng. R 50 (2005) 1-78.

[13] L.B. Johannes, I. Charit, R.S. Mishra, R. Verma, Enhanced superplasticity via friction stir processing in continuous cast AA5083 Al, Mater. Sci. Eng. A 464 (2007) 351-357.

DOI: 10.1016/j.msea.2007.02.012

[14] O.D. Sherby, J. Wadsworth, Superplasticity—Recent advances and future directions, Prog. in Mater. Sci. 33 (1989) 169-221.

DOI: 10.1016/0079-6425(89)90004-2

[15] T. Ito, M. Ishikawa, M. Otsuka, M. Saga, M. Kikuchi, Ductility of 6XXX aluminum alloys at high temperature, J. Jpn. Inst. Light Metals 53 (2003) 114-120.

DOI: 10.2464/jilm.53.114

[16] P.M. Sutton, The variation of the Elastic constants of crystalline aluminium with Temperature between 63K and 773K, Phys. Rev. 91 (1953) 816-821.

DOI: 10.1103/physrev.91.816

[17] H. Oikawa, N. Matsuno, S. Karashima, Metal Sci. 9 (1975) 209-212.
