Tempering of Direct Quenched Low-Alloy Ultra-High-Strength Steel, Part II – Mechanical Properties

Sakari Pallaspuro; Antti Kaijalainen; Teijo Limnell; David A. Porter

doi:10.4028/www.scientific.net/AMR.922.580

Paper Titles

Effect of Cu/Ag Addition on Age-Precipitation in Two Step Aged Al-Mg-Si Alloys
p.560

Cost Cut with High Impact Value of Sandwich Structure with Inexpensive ABS Core between High Strength CFRP Laminate Plies
p.563

Microstructural Control of Ductile Crack Propagation in TMCP HSLA Pipeline Steels
p.568

Influence of Impurities on Mechanical Properties of Electrodeposited Bulk Nanocrystalline Al
p.574

Tempering of Direct Quenched Low-Alloy Ultra-High-Strength Steel, Part II – Mechanical Properties
p.580

RETRACTED: Modeling Mechanical Milling Process for Synthesis of Graphite Nanoparticles and their Characterization
p.586

Analysis of Plastic Deformation and Sample Geometry during the Compression Stage in High-Pressure Torsion
p.592

On the Behavior of Yttria/Yttrium during Mechanical Alloying of a Fe - Y₂O₃ Model Alloy System
p.598

Interaction of V, Al, and N in Microalloyed Forging Steels after Hot Deformation
p.604

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 922Tempering of Direct Quenched Low-Alloy...

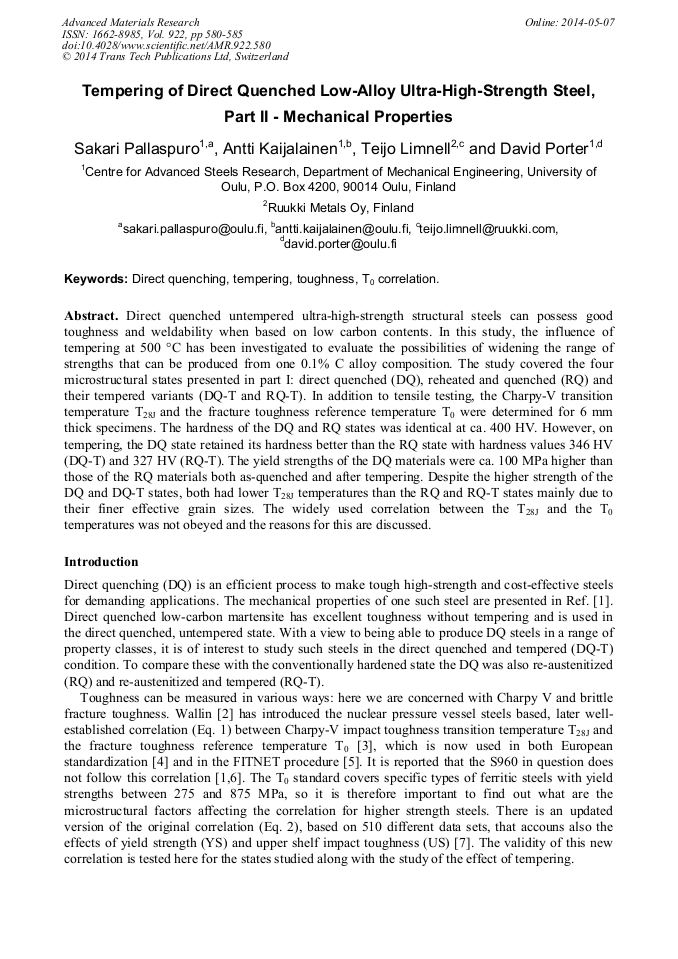

Tempering of Direct Quenched Low-Alloy Ultra-High-Strength Steel, Part II – Mechanical Properties

Abstract:

Direct quenched untempered ultra-high-strength structural steels can possess good toughness and weldability when based on low carbon contents. In this study, the influence of tempering at 500 °C has been investigated to evaluate the possibilities of widening the range of strengths that can be produced from one 0.1% C alloy composition. The study covered the four microstructural states presented in part I: direct quenched (DQ), reheated and quenched (RQ) and their tempered variants (DQ-T and RQ-T). In addition to tensile testing, the Charpy-V transition temperature T_28Jand the fracture toughness reference temperature T₀ were determined for 6 mm thick specimens. The hardness of the DQ and RQ states was identical at ca. 400 HV. However, on tempering, the DQ state retained its hardness better than the RQ state with hardness values 346 HV (DQ-T) and 327 HV (RQ-T). The yield strengths of the DQ materials were ca. 100 MPa higher than those of the RQ materials both as-quenched and after tempering. Despite the higher strength of the DQ and DQ-T states, both had lower T_28J temperatures than the RQ and RQ-T states mainly due to their finer effective grain sizes. The widely used correlation between the T_28J and the T₀ temperatures was not obeyed and the reasons for this are discussed.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 922)

Pages:

580-585

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.922.580

Citation:

Cite this paper

Online since:

May 2014

Authors:

Sakari Pallaspuro*, Antti Kaijalainen, Teijo Limnell, David A. Porter

Keywords:

Direct Quenching, T₀ Correlation, Tempering, Toughness

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A.J. Kaijalainen, P.P. Suikkanen, T.J. Limnell, L.P. Karjalainen, J.I. Kömi and D.A. Porter, Effect of austenite grain structure on the strength and toughness of direct-quenched martensite, J. Alloys Compd., In Press, (2012).

DOI: 10.1016/j.jallcom.2012.03.030

Google Scholar

[2] K. Wallin, A Simple Theoretical Charpy V - KIc Correlation for Irradiation Embrittlement, ASME Pressure Vessels and Piping Conference, Innovative Approaches to Irradiation Damage and Fracture Analysis, PVP-Vol 170, American Society of Mechanical Engineers, New York, July (1989).

Google Scholar

[3] ASTM E1921-97, Standard Test Method for Determination of Reference Temperature, T0, for Ferritic Steels in the Transition Range.

DOI: 10.1520/e1921-22

Google Scholar

[4] EN1993-1-10: Eurocode 3: Design of steel structures - Part 1-10: Material toughness and through-thickness properties, (2005).

Google Scholar

[5] FITNET Fitness-for-Service (FFS) Procedure - Volume 1, GKSS Research Centre, Germany, (2008).

Google Scholar

[6] P. Nevasmaa, P. Karjalainen-Roikonen, A. Laukkanen, T. Nykänen, A. Ameri, T. Björk, T. Limnell, J. Kuoppala, Fracture characteristics of new ultra-high-strength steel with yield strengths 900 - 960 MPa, Rautaruukki research Report (2010).

Google Scholar

[7] K. Wallin, Fracture Toughness of Engineering Materials - Estimation and Application, EMAS Publishing, Warrington, (2011).

Google Scholar

[8] A. Kaijalainen, S. Pallaspuro, D. Porter, Tempering of direct quenched low-alloy ultra-high-strength steel, Part I - Microstructure, submitted to Thermec'2013 proceedings.

DOI: 10.4028/www.scientific.net/amr.922.316

Google Scholar

[9] K. Wallin, Mini- ja normaalikokoisten Charpy-V-koesauvojen tulosten välinen korrelaatio, VTT Research reports 428, 31 p. + app., Technical Research Centre of Finland, Espoo, 1986. [In Finnish].

Google Scholar

[10] K. Wallin, Upper shelf energy normalization for sub-sized Charpy-V specimens, Int. J. of Pressure Vessels and Piping 78 (2001) 463 - 470.

DOI: 10.1016/s0308-0161(01)00063-1

Google Scholar

[11] M. Yang, Y.J. Chao, X. Li, D. Immel, J. Tan, Splitting in dual-phase 590 high strength steel plates: Part II. Quantitative analysis and its effect on Charpy impact energy, Mat. Sci. Eng. A-Struct. 497 (2008) 462-470.

DOI: 10.1016/j.msea.2008.07.066

Google Scholar

[12] Z. Sterjovski, D.P. Dunne, D.G. Carr and S. Ambrose, The Effect of Cold Work and Fracture Surface Splitting on the Charpy Impact Toughness of Quenched and Tempered Steels, ISIJ International 44 No. 6(2004) 1114-1120.

DOI: 10.2355/isijinternational.44.1114

Google Scholar
