Influence of Filler Rod Composition on the Strength of Tungsten Inert Gas Welded Magnesium Alloy Joint

Shinya Shimomura; Taiki Minomo; Yorinobu Takigawa; Tokuteru Uesugi; Mitsuji Ueda; Yutaka Kinomoto; Kenji Higashi

doi:10.4028/www.scientific.net/AMR.922.663

Paper Titles

Variation of Mechanical Properties of AlSi20Cu2Ni1 Alloy with Co Addition and Ultrasonic Treatment
p.638

Determination of Substitutional-Interstitial Interaction from Chemical Potentials of Interstitials in the Steel Matrix
p.645

Structure and Properties of Cu Alloys Alloying with Cr and Hf after Equal Channel Angular Pressing
p.651

Effect of Annealing on Microstructure of Hydroxyapatite Coatings and their Behaviours in Simulated Body Fluid
p.657

Influence of Filler Rod Composition on the Strength of Tungsten Inert Gas Welded Magnesium Alloy Joint
p.663

Microstructure of Er₂O₃Coating Layer of Hydrogen Penetration Control
p.667

Design and Fabrication of New Ti-Based Ternary Metallic Glasses Based on Effective Atomic Radius in the Ti Solid Solution Calculated by Ab Initio Calculation
p.671

The Correlation between Stacking Fault Energy and the Work Hardening Behaviour of High-Mn Twinning Induced Plasticity Steel Tested at Various Temperatures
p.676

Combined Martensite and Bainite Formation from Austenite Decomposition in HSLA Steel
p.682

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 922Influence of Filler Rod Composition on the...

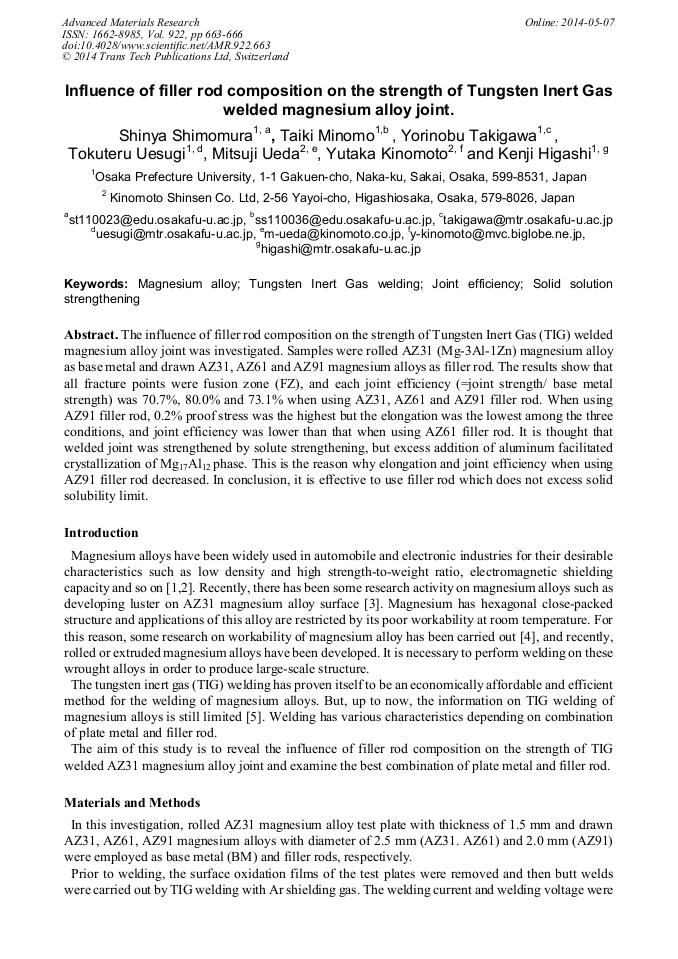

Influence of Filler Rod Composition on the Strength of Tungsten Inert Gas Welded Magnesium Alloy Joint

Abstract:

The influence of filler rod composition on the strength of Tungsten Inert Gas (TIG) welded magnesium alloy joint was investigated. Samples were rolled AZ31 (Mg-3Al-1Zn) magnesium alloy as base metal and drawn AZ31, AZ61 and AZ91 magnesium alloys as filler rod. The results show that all fracture points were fusion zone (FZ), and each joint efficiency (=joint strength/ base metal strength) was 70.7%, 80.0% and 73.1% when using AZ31, AZ61 and AZ91 filler rod. When using AZ91 filler rod, 0.2% proof stress was the highest but the elongation was the lowest among the three conditions, and joint efficiency was lower than that when using AZ61 filler rod. It is thought that welded joint was strengthened by solute strengthening, but excess addition of aluminum facilitated crystallization of Mg₁₇Al₁₂phase. This is the reason why elongation and joint efficiency when using AZ91 filler rod decreased. In conclusion, it is effective to use filler rod which does not excess solid solubility limit.
