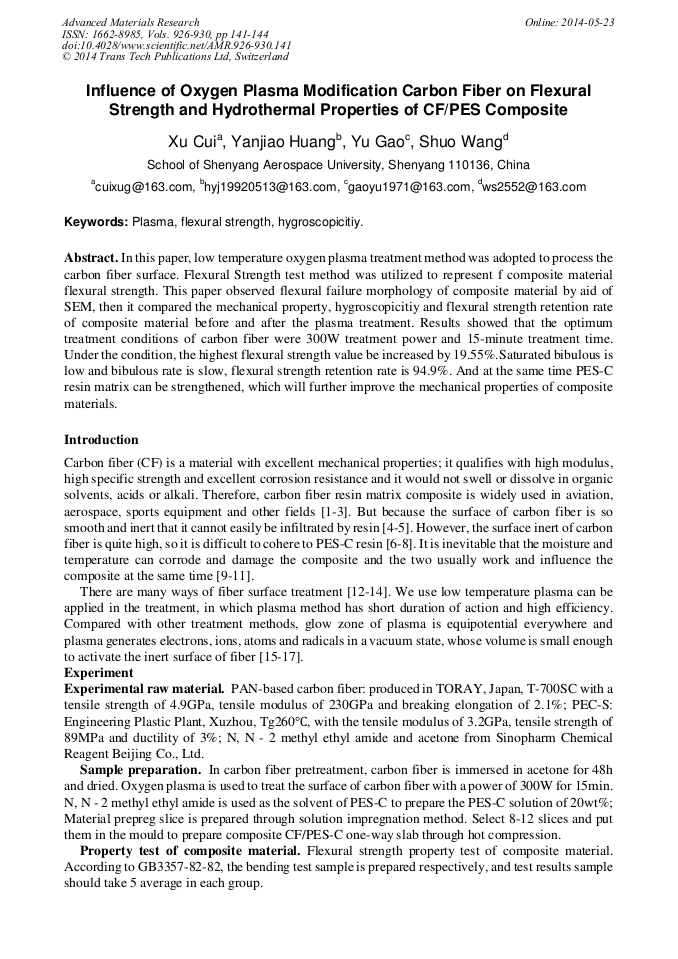

Influence of Oxygen Plasma Modification Carbon Fiber on Flexural Strength and Hydrothermal Properties of CF/PES Composite

Abstract:

In this paper, low temperature oxygen plasma treatment method was adopted to process the carbon fiber surface. Flexural Strength test method was utilized to represent f composite material flexural strength. This paper observed flexural failure morphology of composite material by aid of SEM, then it compared the mechanical property, hygroscopicitiy and flexural strength retention rate of composite material before and after the plasma treatment. Results showed that the optimum treatment conditions of carbon fiber were 300W treatment power and 15-minute treatment time. Under the condition, the highest flexural strength value be increased by 19.55%.Saturated bibulous is low and bibulous rate is slow, flexural strength retention rate is 94.9%. And at the same time PES-C resin matrix can be strengthened, which will further improve the mechanical properties of composite materials.

• Periodical: Advanced Materials Research (Volumes 926-930)
• Pages: 141-144
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.926-930.141
• Online since: May 2014
• Authors: Xu Cui*, Yan Jiao Huang, Yu Gao, Shuo Wang
• Keywords: Flexural Strength, Hygroscopicitiy, Plasma

References

[1] D.K. Xiao, X.Y. Zhang, A. Y Suan: Shandong Chemical Industry, Vol. 36 (2007), No. 2, pp.15-21.

[2] S.Y. Du. Advanced composite materials and aerospace. AMCS , Vol. 24 (2007), No. 1, pp.1-12.

[3] Y. Li, X.Y. Zhong,Y. Cui. Hot and humid Properties of CF3052/5280RTM composite.

[4] J.C. Pei, D.K. Sun, B.G. Zhou: Chinese Science Bulletin, Vol. 25 (1980), No. 10, p.960.

[5] P. Chen, C. Lu, J. Wang, C.S. Zhang, Y. Qi. Acta Polymerica Sinica, Vol. 1 (2011). pp.38-47.

[6] W.N. Sun, C.X. Chen, J.D. Li, Y.Z. Lin: Chinese J Polym Sci, Vol. 27 (2009), No. 2, pp.165-172.

[7] P. Chen, J. Wang J, H. Li: Surf Interface Anal, Vol. 41 (2009), pp.38-43.

[8] C.S. Zhang, P. Chen, D. Liu: Surf Interface Anal, Vol. 41 (2009), pp.187-192.

[9] J. Wang, P. Chen, C. Lu, H. Chen, H. Li, B.L. Sun: Surf Coat Technol, Vol. 203 (2009), pp.3722-3727.

[10] C.X. Jia, P. Chen, B. Li, Q. Wang, C. Lu, Q, Yu: Surf Coat Technol, Vol. 204(2009), pp.3668-3675.

[11] J. Wang, Y.F. Ji ,K.X. Li: New Chemical Materials, Vol. 38 (2010), No. 8, pp.77-80.

[12] D. Chen,Y. Zhao Y.F. Luo: Materials Science and Technology, Vol. 20 (2012), No. 6, pp.1-6.

[13] Y. Gao, X.J. Dai, S.W. Lu: Aviation Manufacturing Technology, Vol. 4 (2013), pp.65-68.

[14] Tongbo Feng, Yan Zhao, Yunfeng Luo. Zuoguang Zhang: Journal of Beijing University of Aeronautics and Astronautics, Vol. 36 (2010), No. 12, pp.1427-1431.

[15] X.F. Wan, Y.L. Wang, F.G. Zhou, Y.Z. Wan: Journal of Reinforced Plastics and Composites, Vol. 23 (2004), No. 10, pp.1031-1040.

[16] Kumar S B, Sridhar I: Materials Science and Engineering, Vol. 498 (2008), pp.174-178.

[17] Kim Yun-Hae, Park Jun-Mu, Lee Jin-Woo: Advanced Materials Research, Vol. 750 (2013), pp.176-185.
