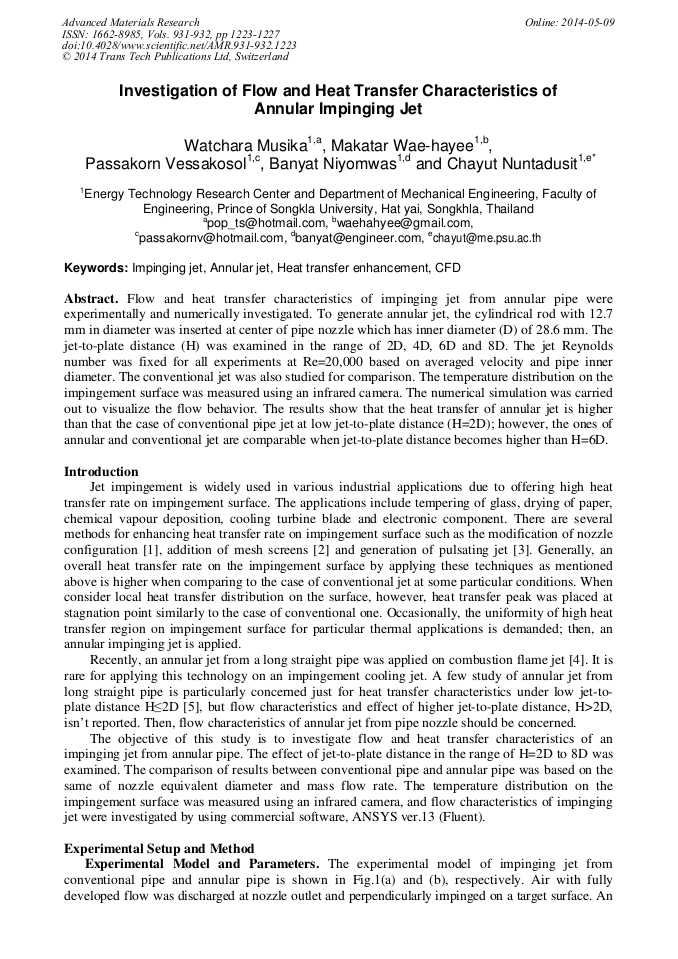

Investigation of Flow and Heat Transfer Characteristics of Annular Impinging Jet

Abstract:

Flow and heat transfer characteristics of impinging jet from annular pipe were experimentally and numerically investigated. To generate annular jet, the cylindrical rod with 12.7 mm in diameter was inserted at center of pipe nozzle which has inner diameter (D) of 28.6 mm. The jet-to-plate distance (H) was examined in the range of 2D, 4D, 6D and 8D. The jet Reynolds number was fixed for all experiments at Re=20,000 based on averaged velocity and pipe inner diameter. The conventional jet was also studied for comparison. The temperature distribution on the impingement surface was measured using an infrared camera. The numerical simulation was carried out to visualize the flow behavior. The results show that the heat transfer of annular jet is higher than that the case of conventional pipe jet at low jet-to-plate distance (H=2D); however, the ones of annular and conventional jet are comparable when jet-to-plate distance becomes higher than H=6D.

• Periodical: Advanced Materials Research (Volumes 931-932)
• Pages: 1223-1227
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.931-932.1223
• Online since: May 2014
• Authors: Watchara Musika, Makatar Wae-Hayee, Passakorn Vessakosol, Banyat Niyomwas, Chayut Nuntadusit*
• Keywords: Annular Jet, CFD, Heat Transfer Enhancement, Impinging Jet

References

[1] J. Lee, S. -J., Lee, The effect of nozzle aspect ratio on stagnation region heat transfer characteristics of elliptic impinging jet, Int. J. Heat and Mass Transfer, 43 (2000) 555-575.

DOI: 10.1016/s0017-9310(99)00167-2

[2] D. W. Zhou, S. -J. Lee, Heat transfer enhancement of impinging jets using mesh screens, Int. J. Heat and Mass Transfer, 47 (2004) 2097-2108.

DOI: 10.1016/j.ijheatmasstransfer.2003.12.002

[3] E.C. Mladin, D.A. Zumbrunnen, Local convective heat transfer to submerged pulsating jets, Int. J. Heat Mass Transfer, 46 (1997) 3305-3321.

DOI: 10.1016/s0017-9310(96)00380-8

[4] H.S. Zhen, C.W. Leung, C.S. Cheung, Heat transfer characteristics of an impinging premixed annular flame jet, Applied Thermal Engineering, 36 (2012) 386-392.

DOI: 10.1016/j.applthermaleng.2011.10.053

[5] K. Ichimiya, Heat Transfer characteristics of an annular turbulent impinging jet with a confined wall measured by thermosensitive liquid crystal, Heat Mass Transfer, 39 (2003) 545-511.

DOI: 10.1007/s00231-002-0371-2

[6] N. Zuckerman, N. Lior, Jet Impingement Heat Transfer: Physics, Correlations, Numerical Modeling, Advances Heat Transfer, 39 (2006) 565-631.

DOI: 10.1016/s0065-2717(06)39006-5

[7] S. Ashforth-Frost, K. Jambunathan, C.F. Whitney, Velocity and Turbulence Characteristics of a Semiconfined Orthogonally Impinging Slot Jet. Exp. Thermal Fluid Sci., 14 (1997) 60-67.

DOI: 10.1016/s0894-1777(96)00112-4
