Microstructure and Mechanical Properties of Submerged Arc Welding Filled with Ni Wire Dissimilar Joints Comprising SUS304 and Q245R

Abstract:

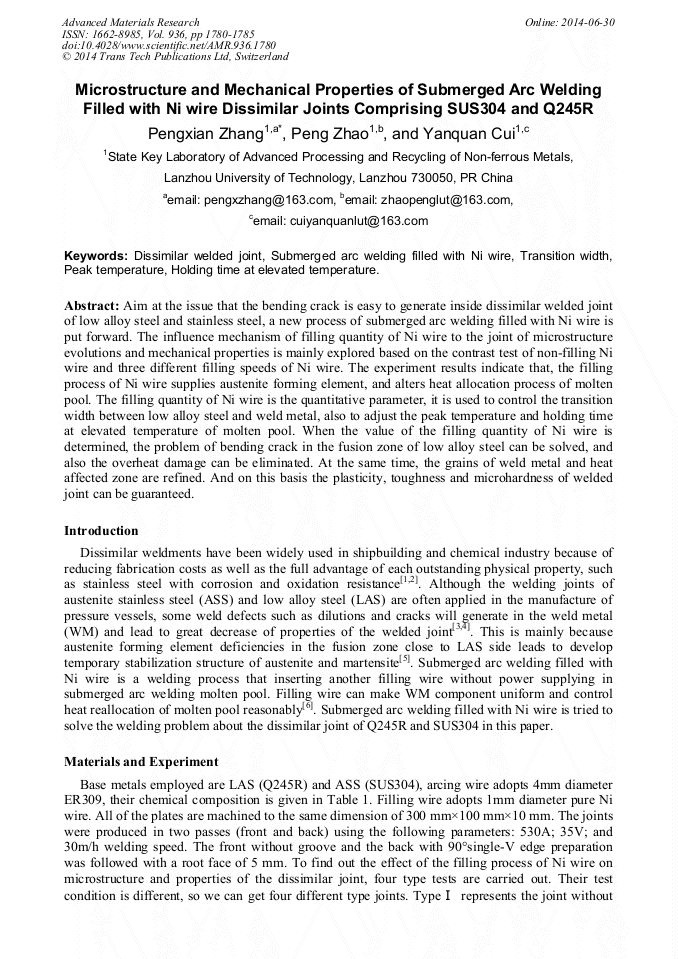

Aim at the issue that the bending crack is easy to generate inside dissimilar welded joint of low alloy steel and stainless steel, a new process of submerged arc welding filled with Ni wire is put forward. The influence mechanism of filling quantity of Ni wire to the joint of microstructure evolutions and mechanical properties is mainly explored based on the contrast test of non-filling Ni wire and three different filling speeds of Ni wire. The experiment results indicate that, the filling process of Ni wire supplies austenite forming element, and alters heat allocation process of molten pool. The filling quantity of Ni wire is the quantitative parameter, it is used to control the transition width between low alloy steel and weld metal, also to adjust the peak temperature and holding time at elevated temperature of molten pool. When the value of the filling quantity of Ni wire is determined, the problem of bending crack in the fusion zone of low alloy steel can be solved, and also the overheat damage can be eliminated. At the same time, the grains of weld metal and heat affected zone are refined. And on this basis the plasticity, toughness and microhardness of welded joint can be guaranteed.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 1780-1785
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.1780
• Online since: June 2014
• Authors: Peng Xian Zhang*, Peng Zhao, Yan Quan Cui
• Keywords: Dissimilar Welded Joint, Holding Time at Elevated Temperature, Peak Temperature, Submerged Arc Welding Filled with Ni Wire, Transition Width

References

[1] R.S. Chen, F.G. Zhang, D.Y. Liu, Microstructure of Liquid and Solid Diffusion Bonding Region of Carbon Steel-brass Interlayer-stainless Steel, Transactions of the China Welding Institution. 30, No. 4 (2009) 61-64.

[2] D. Akbari, I. Sattari-Far, Effect of the welding heat input on residual stresses in butt-welds of dissimilar pipe joints, International Journal of Pressure Vessels and Piping. 190 (2009) 1-8.

DOI: 10.1016/j.ijpvp.2009.07.005

[3] C.R. Das, A.K. Bhaduri, G. Srinivasan, et al, Selection of filler wire for and effect of auto tempering on the mechanical properties of dissimilar metal joint between 403 and 304L(N) stainless steels, Journal of Materials Processing Technology. 30, No. 2 (2009).

DOI: 10.1016/j.jmatprotec.2008.03.053

[4] C. Pan, Z. Zhang, Morphologies of the transition region in dissimilar austenitic-ferritic welds, Materials Characterization. 36, No. 1 (1996) 5-10.

DOI: 10.1016/1044-5803(95)00249-9

[5] R. Wang, F.H. Wang, H.M. Tian, et al, Analysis of bending property of dissimilar steels welded joints, Transactions of the China Welding Institution. 34, No. 2 (2013)58-61.

[6] P.X. Zhang, H. Li, J. Zhang. A GABP optimized algorithm for filler rate of non-heated wire, Transactions of the China Welding Institution. 33, No. 12 (2012) 77-80.

[7] P. Bala Srinivsan, V. Muthupandi, W. Dietzel, and V. Sivan, Microstructure and corrosion behavior of shielded metal arc-welded dissimilar joints comprising duplex stainless steel and low alloy steel, J. Mater. Eng. Perform., 15(3006), No. 6, p.758.

DOI: 10.1361/105994906x150902

[8] T.W. Nelson, J.C. Lippold, M.J. Mills, Nature and evolution of the fusion boundary in ferritic-austenitic dissimilar weld metals: Part 1, Nucleation and Growth, Weld. J. 78, No. 10 (1999) 329-332.

[9] T. Hattori, T. Fujita, K. Kinoshita, et al, Hydrogen include disbanding of stainless steel overlay weld and its preventive measures, Nippon Kokan Tech. Rep. Overseas. 47 (1986) 17-21.
