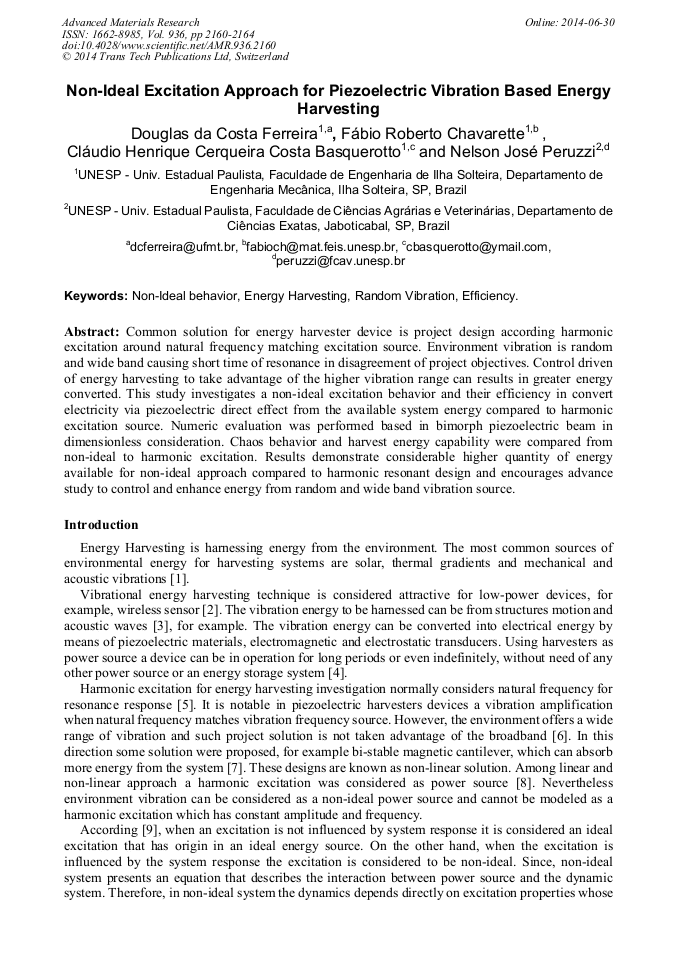

Non-Ideal Excitation Approach for Piezoelectric Vibration Based Energy Harvesting

Abstract:

Common solution for energy harvester device is project design according harmonic excitation around natural frequency matching excitation source. Environment vibration is random and wide band causing short time of resonance in disagreement of project objectives. Control driven of energy harvesting to take advantage of the higher vibration range can results in greater energy converted. This study investigates a non-ideal excitation behavior and their efficiency in convert electricity via piezoelectric direct effect from the available system energy compared to harmonic excitation source. Numeric evaluation was performed based in bimorph piezoelectric beam in dimensionless consideration. Chaos behavior and harvest energy capability were compared from non-ideal to harmonic excitation. Results demonstrate considerable higher quantity of energy available for non-ideal approach compared to harmonic resonant design and encourages advance study to control and enhance energy from random and wide band vibration source.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 2160-2164
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.2160
• Online since: June 2014
• Authors: Douglas da Costa Ferreira*, Fábio Roberto Chavarette, Cláudio Henrique Cerqueira Costa Basquerotto, Nelson José Peruzzi
• Keywords: Efficiency, Energy Harvesting, Non-Ideal Behavior, Random Vibration

References

[1] Raghunathan V., Kansal A., Hsu J., Friedman J., Srivastava M. Design Considerations for Solar Energy Harvesting Wireless Embedded Systems. IEEE, 0-7803-9201. (2005).

DOI: 10.1109/ipsn.2005.1440973

[2] Challa V. R., Prasad, M. G., Shi Y., Fisher F. T. A vibration energy harvesting device with bidirectional resonance frequency tenability. Smart Materials and Structures, No. 17. (2008).

DOI: 10.1088/0964-1726/17/01/015035

[3] Sherrit S. The Physical Acoustics of Energy Harvesting. IEEE International Ultrasonics Symposium Proceedings. (2008).

[4] Sodano H. A., Inman D. l J. Comparison of Piezoelectric Energy Harvesting Devices for Recharging Batteries. Journal of Intelligent Material Systems and Structures, 16(10), 799-807. (2005).

DOI: 10.1177/1045389x05056681

[5] Harb, A. Energy harvesting: State-of-the-art. Renewable Energy, 36, 2641-2654. (2011).

DOI: 10.1016/j.renene.2010.06.014

[6] Miller, L. M., Halvorsen, E., Dong, T., Wright, P. K. Modeling and experimental verification of low-frequency MEMS energy harvesting from ambient vibrations. Journal of Micromechanics and Microengineering, No. 21, 13p. (2011).

DOI: 10.1088/0960-1317/21/4/045029

[7] Erturk, A. and Inman, D. Broadband piezoelectric power generation on high-energy orbits of the bistable duffing oscillator with electromechanical coupling. Journal of Sound and Vibration, Vol. 330, No. 10, p.2339 – 2353. (2011).

DOI: 10.1016/j.jsv.2010.11.018

[8] Moehlis, J., DeMartini, B. E., Rogers, J. L., Turner, K. L. Exploiting Nonlinearity to Provide Broadband Energy Harvesting. Proceedings ASME Dynamic Systems and Control Conference, October 12-14, Hollywood, California, USA. (2009).

DOI: 10.1115/dscc2009-2542

[9] Chavarette F. R. On an Optimal Linear Control of a Chaotic Non-Ideal Duffing System. Advances in Mechanical Engineering, Vol. 2, No. 3. (2012).

[10] Wolf, A., Swift, J. B., Swinney, H. L. and Vastano, J. A. Determining Lyapunov Exponents from a Time Series. Physica, North-Holland, Amsterdam, 16D, 285-317. (1985).

DOI: 10.1016/0167-2789(85)90011-9
