Research on the Three-Dimensional Displaying of STL ASCII and Binary File

Abstract:

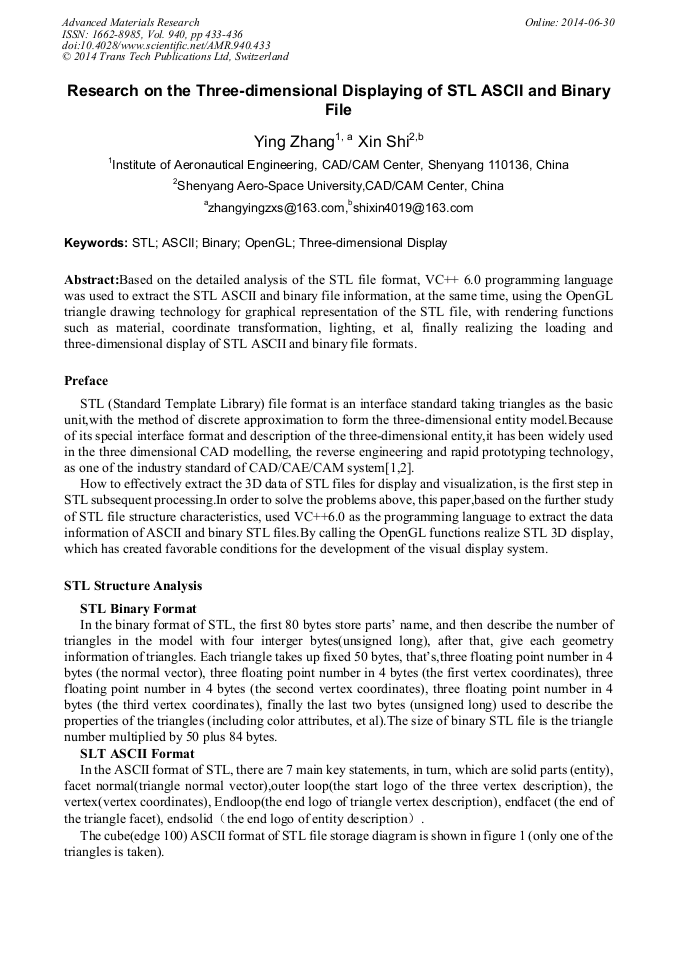

Based on the detailed analysis of the STL file format, VC++ 6.0 programming language was used to extract the STL ASCII and binary file information, at the same time, using the OpenGL triangle drawing technology for graphical representation of the STL file, with rendering functions such as material, coordinate transformation, lighting, et al, finally realizing the loading and three-dimensional display of STL ASCII and binary file formats.

You might also be interested in these eBooks

Machinery, Materials Science and Engineering Applications 2014

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 940)

Pages:

433-436

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.940.433

Citation:

Cite this paper

Online since:

June 2014

Authors:

Ying Zhang, Xin Shi*

Keywords:

ASCII, Binary, OpenGL, STL, Three-Dimensional Display
