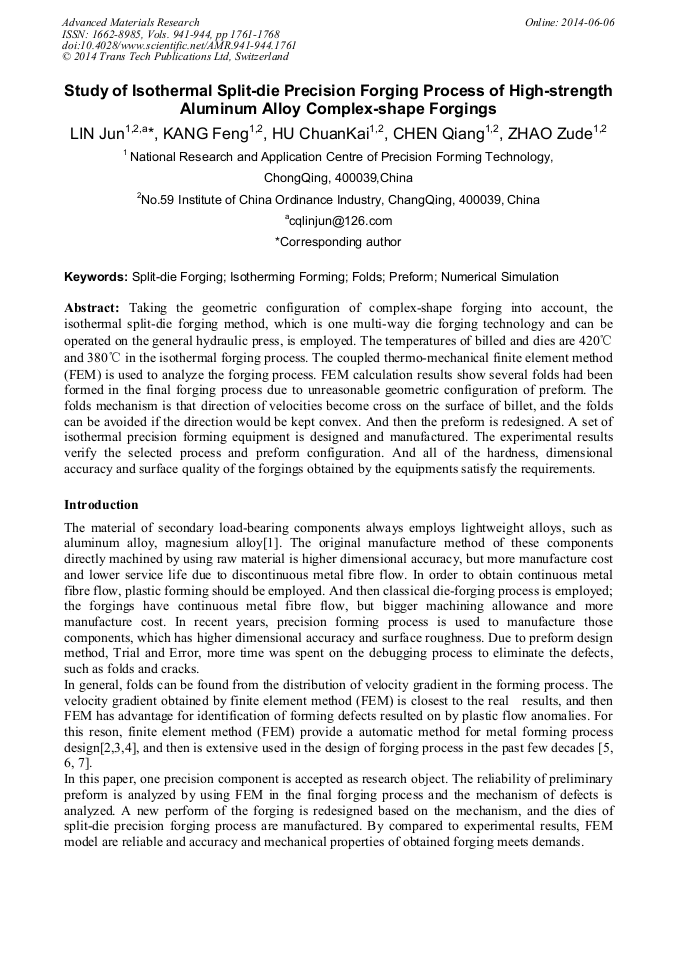

Study of Isothermal Split-Die Precision Forging Process of High-Strength Aluminum Alloy Complex-Shape Forgings

Abstract:

Taking the geometric configuration of complex-shape forging into account, the isothermal split-die forging method, which is one multi-way die forging technology and can be operated on the general hydraulic press, is employed. The temperatures of billed and dies are 420°C and 380°C in the isothermal forging process. The coupled thermo-mechanical finite element method (FEM) is used to analyze the forging process. FEM calculation results show several folds had been formed in the final forging process due to unreasonable geometric configuration of preform. The folds mechanism is that direction of velocities become cross on the surface of billet, and the folds can be avoided if the direction would be kept convex. And then the preform is redesigned. A set of isothermal precision forming equipment is designed and manufactured. The experimental results verify the selected process and preform configuration. And all of the hardness, dimensional accuracy and surface quality of the forgings obtained by the equipments satisfy the requirements.

• Periodical: Advanced Materials Research (Volumes 941-944)
• Pages: 1761-1768
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.941-944.1761
• Online since: June 2014
• Authors: Jun Lin*, Feng Kang, Chuan Kai Hu, Qiang Chen, Zu De Zhao
• Keywords: Folds, Isotherming Forming, Numerical Simulation, Preform, Split-Die Forging

References

[1] Huang Shaodong, Tang Quanbo, Zhao Zude. Promotion of Arms. Weight Mitigation by Magnesium Alloys. Metal Forming Technology, 2002, 20(5): 8-10. (In chinese).

[2] Altan T, Vazquez V: CIRP Annuals of Manufacture Technology, 1996, 45: 599- 615.

[3] Shan DB, Xu WC and Lu Y, etc: Journal of Materials Processing Technology, 2004, 151: 289-293.

[4] Zhang YQ, Shan D and Xu FC : Journal of Materials Processing Technology, 2009, 209: 745-753.

[5] Fu MW and Luo ZJ : Journal of Materials Processing Technology, 1992, 32: 599-608.

[6] Lee DJ, KimDJ and Kim BM: Journal of Materials Processing Technology, 2003, 139: 422-427.

[7] Wang JL, Fu MW, Ran JQ: International Journal of Advanced Manufacture Technology, 2013, 68: 1551-1564.

[8] Li Sangjian and Huang Zaowen. Splid-die foring process. Mechanical Engineering Sinica. 1982(6): 14-17. (In chinese).

[9] Lin Fen, Zhang Lei, Sun Fu, etc. Multi-ram Forge Process and Its Equipment Development[J]. Journal of Mechanical Engineering, 2012, 48(18): 13-20. (In chinese).

DOI: 10.3901/jme.2012.18.013

[10] Liao HaiQuan. Splid-die foring process on general hydraulic press and its application. Forging Machine, 1982(6): 22-29. (In chinese).

[11] Yang Yucun, Xia Jushen, Hu Guoan. Comments and research of vertical-split-die forging process [J]. Metal Forming Technology, 1995, 13(2): 21-23. (In chinese).

[12] Shao Yong, Lu Bin, Chen Jun . Research and application of bulk metal preform design and optimization methods. Journal of Plastic Engineering, 2012, 19(6): 1-9. (In chinese).

[13] Ming-zhi XING, Yong-gang WANG, Zhao-xiu JIANG. Dynamic Fracture Behaviors of Selected Aluminum Alloys Under Three-point Bending. Defence Technology. 2013, 9(4): 193-200.

DOI: 10.1016/j.dt.2013.11.002
