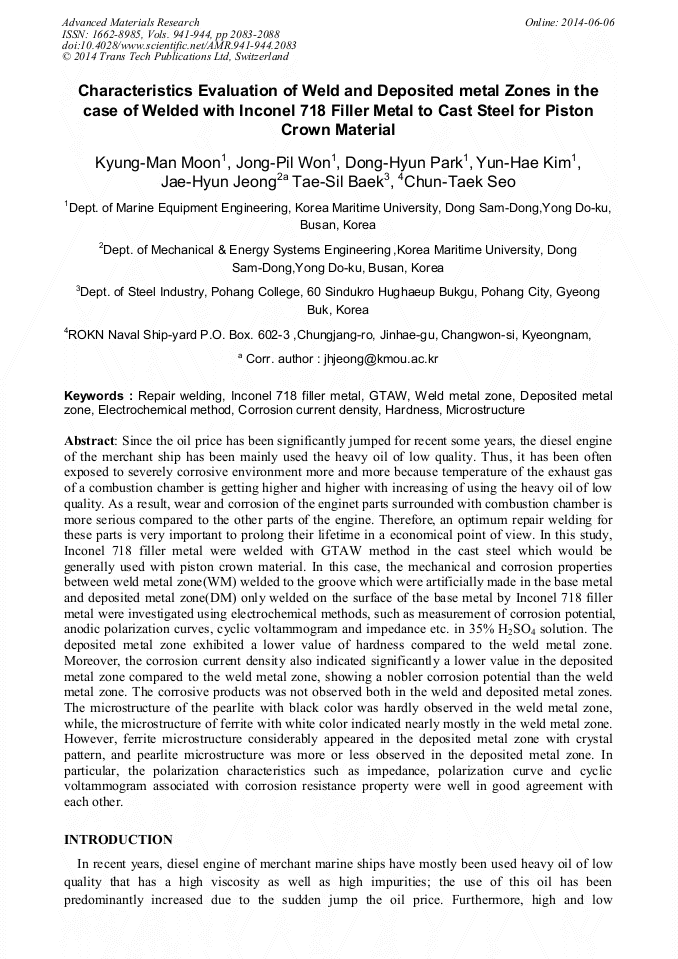

Characteristics Evaluation of Weld and Deposited Metal Zones in the Case of Welded with Inconel 718 Filler Metal to Cast Steel for Piston Crown Material

Abstract:

Since the oil price has been significantly jumped for recent some years, the diesel engine of the merchant ship has been mainly used the heavy oil of low quality. Thus, it has been often exposed to severely corrosive environment more and more because temperature of the exhaust gas of a combustion chamber is getting higher and higher with increasing of using the heavy oil of low quality. As a result, wear and corrosion of the enginet parts surrounded with combustion chamber is more serious compared to the other parts of the engine. Therefore, an optimum repair welding for these parts is very important to prolong their lifetime in a economical point of view. In this study, Inconel 718 filler metal were welded with GTAW method in the cast steel which would be generally used with piston crown material. In this case, the mechanical and corrosion properties between weld metal zone (WM) welded to the groove which were artificially made in the base metal and deposited metal zone (DM) only welded on the surface of the base metal by Inconel 718 filler metal were investigated using electrochemical methods, such as measurement of corrosion potential, anodic polarization curves, cyclic voltammogram and impedance etc. in 35% H₂SO₄ solution. The deposited metal zone exhibited a lower value of hardness compared to the weld metal zone. Moreover, the corrosion current density also indicated significantly a lower value in the deposited metal zone compared to the weld metal zone, showing a nobler corrosion potential than the weld metal zone. The corrosive products was not observed both in the weld and deposited metal zones. The microstructure of the pearlite with black color was hardly observed in the weld metal zone, while, the microstructure of ferrite with white color indicated nearly mostly in the weld metal zone. However, ferrite microstructure considerably appeared in the deposited metal zone with crystal pattern, and pearlite microstructure was more or less observed in the deposited metal zone. In particular, the polarization characteristics such as impedance, polarization curve and cyclic voltammogram associated with corrosion resistance property were well in good agreement with each other.

• Periodical: Advanced Materials Research (Volumes 941-944)
• Pages: 2083-2088
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.941-944.2083
• Online since: June 2014
• Authors: Kyung Man Moon, Jong Pil Won, Dong Hyun Park, Yun Hae Kim, Jae Hyun Jeong*, Tae Sil Baek, Chun Taek Seo
• Keywords: Corrosion Current Density, Deposited Metal Zone, Electrochemical Method, GTAW, Hardness, Inconel 718 Filler Metal, Microstructure, Repair Welding, Weld Metal Zone

References

[1] S. K. Jang and J. I. Jeon : J. of Kor. Soc. of Mar. Eng. Vol. 30, No. 1(2006), p.30.

[2] J. D. Kim, B. L. Kil and C. J. Lee : J. of Kor. Soc. of Mar. Eng. Vol. 30, No. 5 ( 2006), p.629.

[3] J. D. Kim, S. J. Yoo and J. S. Kim : J. of Kor. Soc. of Mar. Eng. Vol. 30, No. 5 (2006), p.623.

[4] P. D. Bilmes, C. L. Liorente, Saire Huaman, L. M. Gassa and C. A. Gervasi : Corr. Sci. Vol. 48 (2006), p.3261.

[5] Y. H. Lee, Y. H. Kim and H. Kim : CORR. SCI. AND TEC. Vol. 2, No. 5 (2003), p.219.

[6] I. H. Lo, M. C. Lee, K. Y. Lim, W. Ho, G. C. Y. Yang and W. T. Tsai CORR. SCI. AND TEC. Vol. 31, No, 5(2002), p.361.

[7] K. M. Moon, M. H. Lee, K. J. Kim, J. G. Kim and S. J. Kim, : CORR. SCI. AND TEC. Vol. 2, No. 6(2003), p.283.

[8] V. S. Raja, S. K. Vershney, R. Raman and S. D. Kulkarni : Corr. Sci. Vol. 40, No. 10(1998), p.1609.

[9] L. W. Tsay, W. L. Lin, S. W. Chenct and G. S. Leu, : Corr. Sci. Vol. 39, No. 7, (1997), p.1165.

[10] P. D. Bilmes, C. L. Liorente, Saire Huaman, L. M. Gassa and C. A. Gervasi, Microstructure and Pitting Corrosion of 13Cr Ni Mo Weld Metal, Corrosion Science, Vol 48, (2006), pp.3261-3270.

DOI: 10.1016/j.corsci.2005.10.009

[11] Y. H. Lee, Y. H. Kim and H. Kim, Crevice Corrosion Resistance of Stainless Steel in Natural Sea Water with Different Post Welding Treatment, CORROSION SCIENCE AND TECHNOLOGY, Vol 2, No 5, (2003), pp.219-224.

[12] I. H. Lo, M. C. Lee, K. Y. Lim, W. Ho, G. C. Y. Yang and W. T. Tsai, Effect of Heat Treatment on the Pitting Corrosion Behavior of 347SS Weld Overlay, CORROSION SCIENCE AND TECHNOLOGY, Vol 31, No 5, (2002), pp.361-367.

[13] K. M. Moon, M. H. Lee, K. J. Kim, J. G. Kim and S. J. Kim, A Study on the Post-Weld Heat Treatment Effect to Mechanical Properties and Hydrogen Embrittlement for Heating Affected Zone of a RE36 Steel, CORROSION SCIENCE AND TECHNOLOGY, Vol 2, No 6, (2003).

[14] V. S. Raja, S. K. Vershney, R. Raman and S. D. Kulkarni, Influence of Nitrogen on the Pitting Corrosion Behavior of 904L Weld Clad, Corrosion Science, Vol 40, No 10, (1998), pp.1609-1625.

DOI: 10.1016/s0010-938x(97)00174-1

[15] L. W. Tsay, W. L. Lin, S. W. Chenct and G. S. Leu, Hydrogen Sulphide Stress Corrosion Cracking of 2. 25 Cr-Mo Steel Weldments, Corrosion Science, Vol 39, No 7, (1997), pp.1165-1176.

DOI: 10.1016/s0010-938x(97)00015-2
