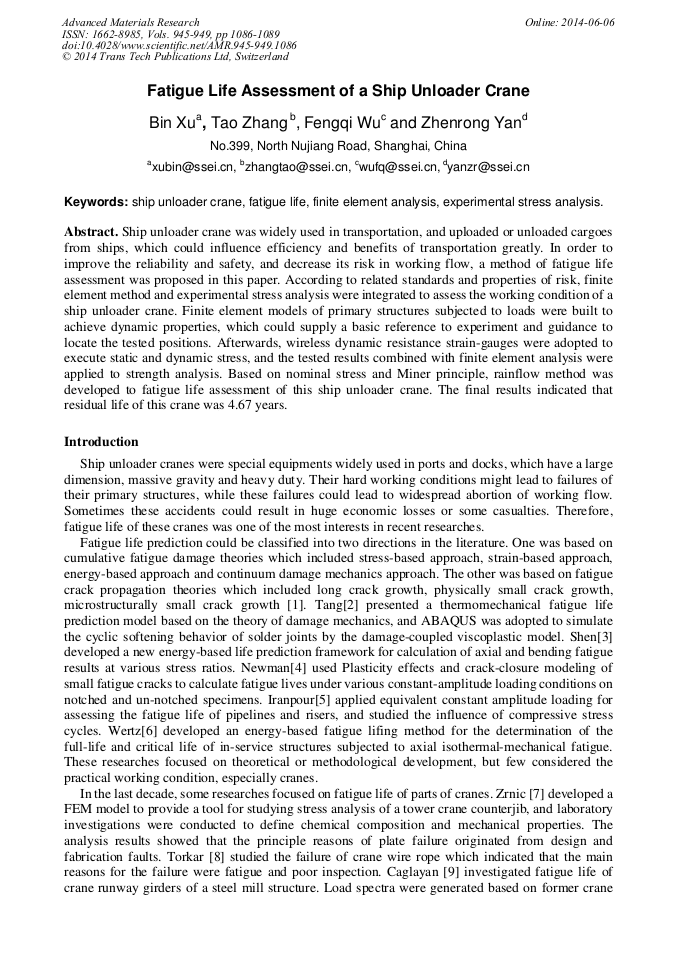

Fatigue Life Assessment of a Ship Unloader Crane

Abstract:

Ship unloader crane was widely used in transportation, and uploaded or unloaded cargoes from ships, which could influence efficiency and benefits of transportation greatly. In order to improve the reliability and safety, and decrease its risk in working flow, a method of fatigue life assessment was proposed in this paper. According to related standards and properties of risk, finite element method and experimental stress analysis were integrated to assess the working condition of a ship unloader crane. Finite element models of primary structures subjected to loads were built to achieve dynamic properties, which could supply a basic reference to experiment and guidance to locate the tested positions. Afterwards, wireless dynamic resistance strain-gauges were adopted to execute static and dynamic stress, and the tested results combined with finite element analysis were applied to strength analysis. Based on nominal stress and Miner principle, rainflow method was developed to fatigue life assessment of this ship unloader crane. The final results indicated that residual life of this crane was 4.67 years.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 1086-1089
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.1086
• Online since: June 2014
• Authors: Bin Xu*, Tao Zhang, Feng Qi Wu, Zhen Rong Yan
• Keywords: Experimental Stress Analysis, Fatigue Life, Finite Element Analysis (FEA), Ship Unloader Crane

References

[1] Weicheng Cui. A state-of-the-art review on fatigue life prediction methods for metal structures. Journal of marine science and technology Vol. 7 (2002), P. 43-56.

DOI: 10.1007/s007730200012

[2] Hong Tang, Cemal Basaran. A damage mechanics-based fatigue life prediction model for solder joints. Journal of Electronic Packaging Vol. 125 (2003), P. 120-125.

DOI: 10.1115/1.1536171

[3] O.E. Scott-Emuakpor, H. Shen, T. George, C. Cross. An energy-based uniaxial fatigue life prediction method for commonly used gas turbine engine materials. Journal of engineering for gas turbines and power Vol. 130 (2008), P. 062504-062504-15.

DOI: 10.1115/1.2943152

[4] J.C. Newman, B.S. Annigeri. Fatigue-life prediction method based on small-crack theory in an engine material. Journal of engineering for gas turbines and power Vol. 134 (2012), P. 032501-1-8.

DOI: 10.1115/1.4004261

[5] M. Iranpour, F. Taheri. Applicability of equivalent constant amplitude loading for assessing the fatigue life of pipelines and risers and the influence of compressive stress cycles. Journal of pressure vessel technology Vol. 135 (2013).

DOI: 10.1115/1.4007647

[6] J. Wertz, T. Letcher, M.H.H. Shen. An energy-based axial isothermal-mechanical fatigue lifing method. Journal of engineering for gas turbines and power Vol. 134 (2012), P. 102502-1-7.

DOI: 10.1115/1.4007121

[7] N.D. Zrnic, S.M. Bosnjak V.M. Gasic etc. Failure analysis of the tower crane counterjib. Procedia engineering Vol. 10 (2011), P. 2238-2243.

DOI: 10.1016/j.proeng.2011.04.370

[8] M. Torkar, B. Arzensek. Failure of crane wire rope. Engineering failure analysis Vol. 9 (2002), P. 227-233.

DOI: 10.1016/s1350-6307(00)00047-9

[9] O. Caglayan, K. Ozakgul, O. Tezer etc. Fatigue life prediction of existing crane runway girders. Journal of constructional steel research Vol. 66 (2010), P. 1164-1173.

DOI: 10.1016/j.jcsr.2010.04.009

[10] V.A. Kopnov. Fatigue life prediction of the metalwork of a travelling gantry crane. Engineering failure analysis Vol. 6 (1999),P. 131-141.

DOI: 10.1016/s1350-6307(98)00041-7
