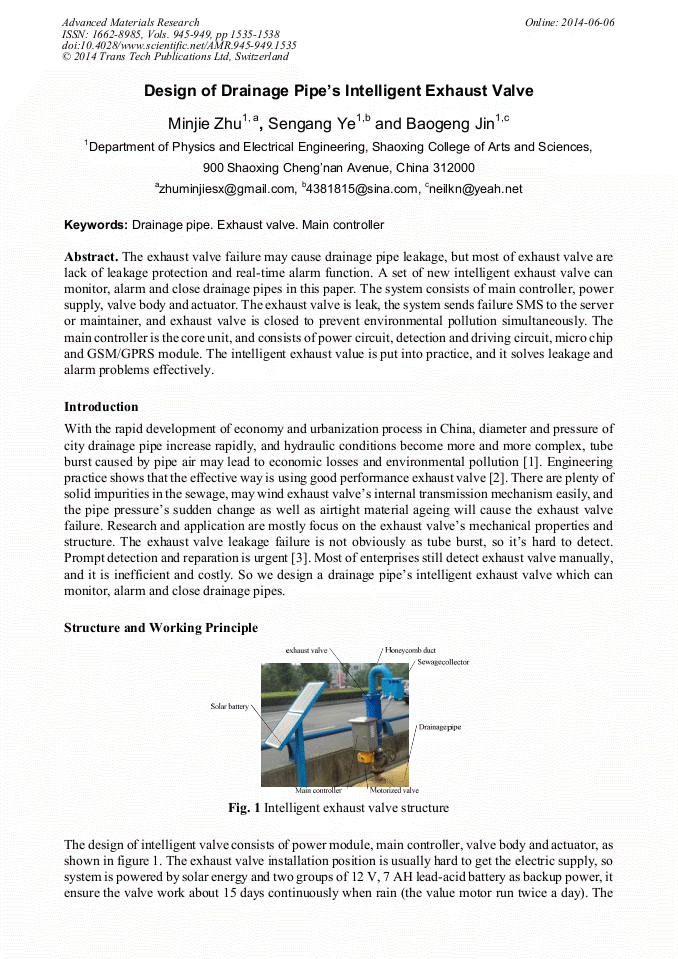

Design of Drainage Pipe’s Intelligent Exhaust Valve

Abstract:

The exhaust valve failure may cause drainage pipe leakage, but most of exhaust valve are lack of leakage protection and real-time alarm function. A set of new intelligent exhaust valve can monitor, alarm and close drainage pipes in this paper. The system consists of main controller, power supply, valve body and actuator. The exhaust valve is leak, the system sends failure SMS to the server or maintainer, and exhaust valve is closed to prevent environmental pollution simultaneously. The main controller is the core unit, and consists of power circuit, detection and driving circuit, micro chip and GSM/GPRS module. The intelligent exhaust value is put into practice, and it solves leakage and alarm problems effectively.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 1535-1538
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.1535
• Online since: June 2014
• Authors: Min Jie Zhu*, Sen Gang Ye, Bao Geng Jin
• Keywords: Drainage Pipe, Exhaust Valve, Main Controller

References

[1] Lizhen Xing: Design and Construction of Drainage Pipes(Chemistry Industry Press, China 2004) (in chinese).

[2] Weihua Jin, Zhipeng Li and Wu Qin: Water and Wastewater Engineering Vol. 34(2008), p.112 (in chinese).

[3] Wei Liu, Yin Yang and Jinlin Meng: Water and Wastewater Engineering Vol. 37(20011), p.98 (in chinese).

[4] PRC Ministry of Construction. J/T 217-2005. Composite High-speed Intake and Exhaust Valve for Water Supply Pipe. Beijing; 2005 (in chinese).

[5] Shaoxing Drainage Management Co. Ltd. The Exhaust Valve with sewage Leakage protection device. CN2010 2 0162441. 9(Patent). 2010 (in chinese).

[6] Information on http: /www. siemens. com.

[7] Information on http: /www. 21ic. com.

[8] Information on http: /www. st. com.
