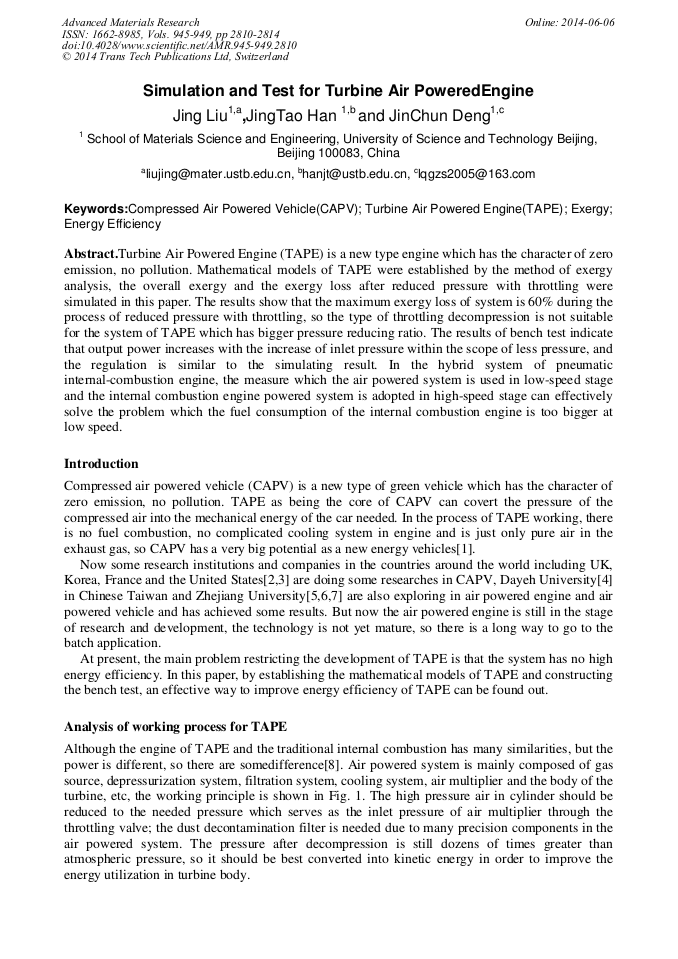

Simulation and Test for Turbine Air Powered Engine

Abstract:

Turbine Air Powered Engine (TAPE) is a new type engine which has the character of zero emission, no pollution. Mathematical models of TAPE were established by the method of exergy analysis, the overall exergy and the exergy loss after reduced pressure with throttling were simulated in this paper. The results show that the maximum exergy loss of system is 60% during the process of reduced pressure with throttling, so the type of throttling decompression is not suitable for the system of TAPE which has bigger pressure reducing ratio. The results of bench test indicate that output power increases with the increase of inlet pressure within the scope of less pressure, and the regulation is similar to the simulating result. In the hybrid system of pneumatic internal-combustion engine, the measure which the air powered system is used in low-speed stage and the internal combustion engine powered system is adopted in high-speed stage can effectively solve the problem which the fuel consumption of the internal combustion engine is too bigger at low speed.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 2810-2814
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.2810
• Online since: June 2014
• Authors: Jing Liu*, Jing Tao Han, Jin Chun Deng
• Keywords: Compressed Air Powered Vehicle (CAPV), Energy Efficiency, Exergy, Turbine Air Powered Engine (TAPE)

References

[1] Y. Chen, H. Xu and Guoliang Tao: Chinese Journal Mechanical Engineering, Vol. 38 (2002), pp.7-11.

[2] C.A. Ordonez and M.C. Plummer: Energy Sources, Vol. 19 (1997), p.392.

[3] C Knowlan A, T Mattick A, Hertzberg A, P Bruckner: Future Transportation Technology Conference & Exposition. USA: SAE technical Paper series, Vol. 01 (1999), pp.29-32.

[4] H.K. David, G.S. Chun: Applied Energy, Vol. 81 (2005), pp.1-18.

[5] H. Liu, G.L. Tao, Y. Chen and W.H. Ding: Journal of Zhejiang University (Engineering Science), Vol. 40 (2006), pp.694-698.

[6] W.H. Ding: Exergy Research on System of Air Power Vehicle (Ph. D, Zhejiang University, China 2006), p.35.

[7] H. Liu, G.L. Tao and Y. Chen: Chinese Hydraulics & Pneumatics, Vol. 5 (2005), pp.24-26.

[8] H. Liu, H. Zhang, X.F. Luo and Y. Ying: Mechanical & Electrical Engineering Magzine, Vol. 20 (2003), pp.95-97.

[9] L. Hao: Research on Air Powered Vehicle Engine (Ph. D, Zhejiang University, China 2004), p.2.

[10] L. Liu: Optimization Study on Working Process and Key Components of Air Powered Engine (Ph. D, Zhejiang University, China 2007), p.10.

[11] Q. Ye, J. Li and Z.W. Wang: Journal of Harbin Institute of Technology, Vol. 33 (2001), pp.706-708.
