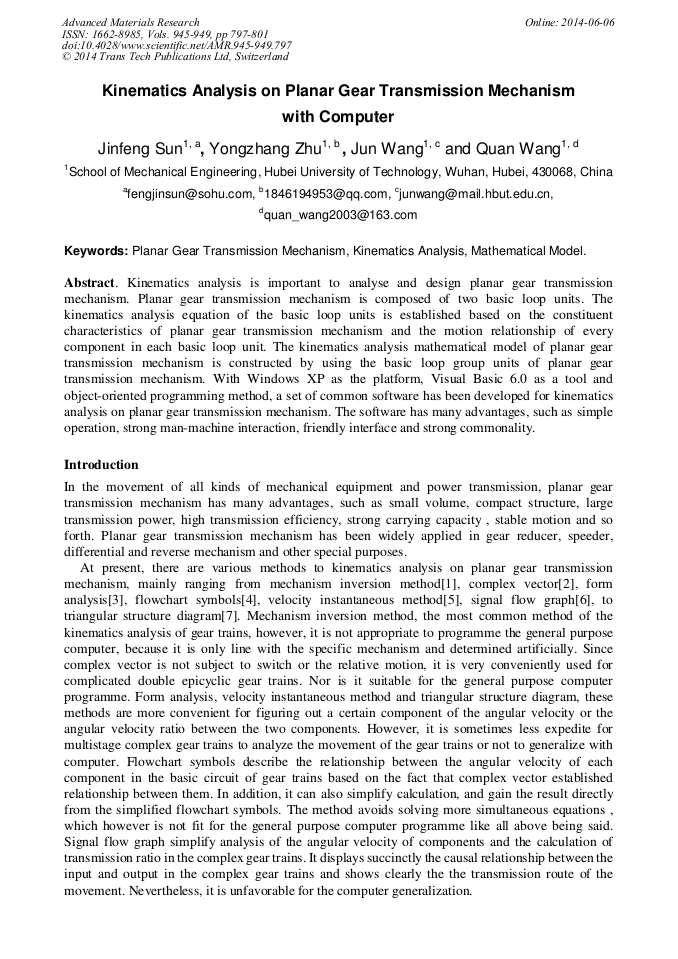

Kinematics Analysis on Planar Gear Transmission Mechanism with Computer

Abstract:

Kinematics analysis is important to analyse and design planar gear transmission mechanism. Planar gear transmission mechanism is composed of two basic loop units. The kinematics analysis equation of the basic loop units is established based on the constituent characteristics of planar gear transmission mechanism and the motion relationship of every component in each basic loop unit. The kinematics analysis mathematical model of planar gear transmission mechanism is constructed by using the basic loop group units of planar gear transmission mechanism. With Windows XP as the platform, Visual Basic 6.0 as a tool and object-oriented programming method, a set of common software has been developed for kinematics analysis on planar gear transmission mechanism. The software has many advantages, such as simple operation, strong man-machine interaction, friendly interface and strong commonality.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 797-801
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.797
• Online since: June 2014
• Authors: Jin Feng Sun, Yong Zhang Zhu, Jun Wang, Quan Wang
• Keywords: Kinematics Analysis, Mathematical Models, Planar Gear Transmission Mechanism

References

[1] Heng Sun and Zuomo Chen: Machinery Principle (Higher Education Press, China 2006). (In Chinese).

[2] Hui Fu: Journal of Mechanical Science and Technology Vol. 19 (2000), p.261(In Chinese).

[3] Lin Zhang: Journal of Mechanical Transmission Vol. 22 (1998), p.46(In Chinese).

[4] Chaoqin Peng, Hui Fu and Youhong Zhao: Journal of Mechanical Science and Technology Vol. 20 (2001), p.672(In Chinese).

[5] Binjiu Yang, Xitian Zhu and Shuren Cong: Journal of Jilin Institute of Chemical Technology Vol. 14 (1997), p.58(In Chinese).

[6] Xinghai Yang: Journal of Mechanical Transmission Vol. 12 (1995), p.5(In Chinese).

[7] Zhigang Lai, Linghong Xiong and Guanzhi Guo: Journal of Nanchang University (Engineering) Vol. 22 (2000), p.39(In Chinese).

[8] B.H. Aleksandr Kuriavtsev: Panetary Gear Transmission Manual (Metallurgical Industry Press, China 1986). (In Chinese).
