The Analysis of the Transmission Scheme of the 9 Speed Automatic Transmission Based on the Expend Lever Method

Abstract:

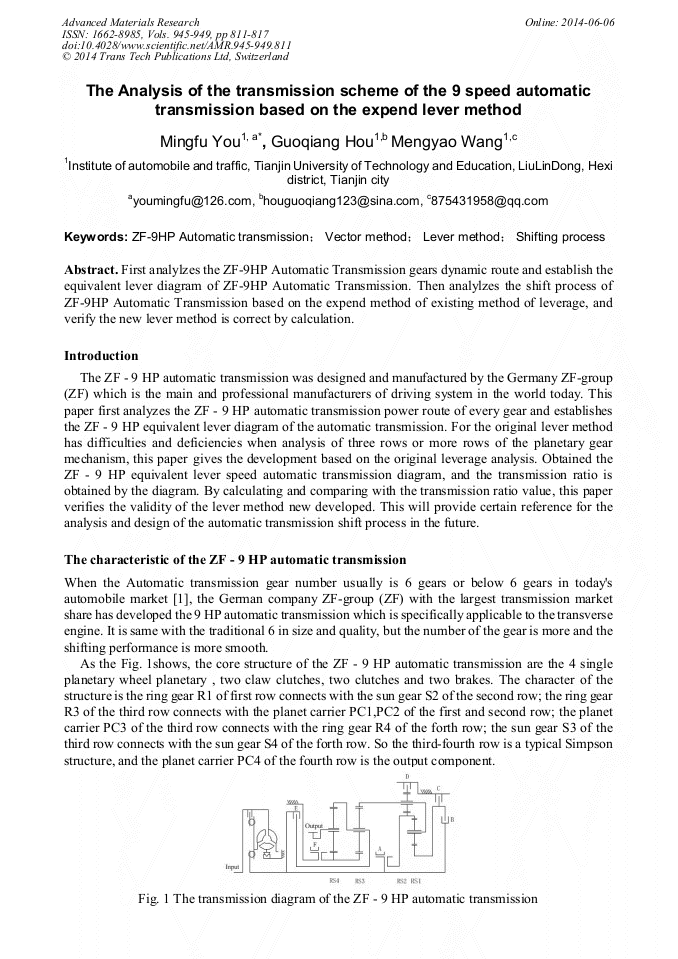

First analylzes the ZF-9HP Automatic Transmission gears dynamic route and establish the equivalent lever diagram of ZF-9HP Automatic Transmission. Then analylzes the shift process of ZF-9HP Automatic Transmission based on the expend method of existing method of leverage, and verify the new lever method is correct by calculation.
