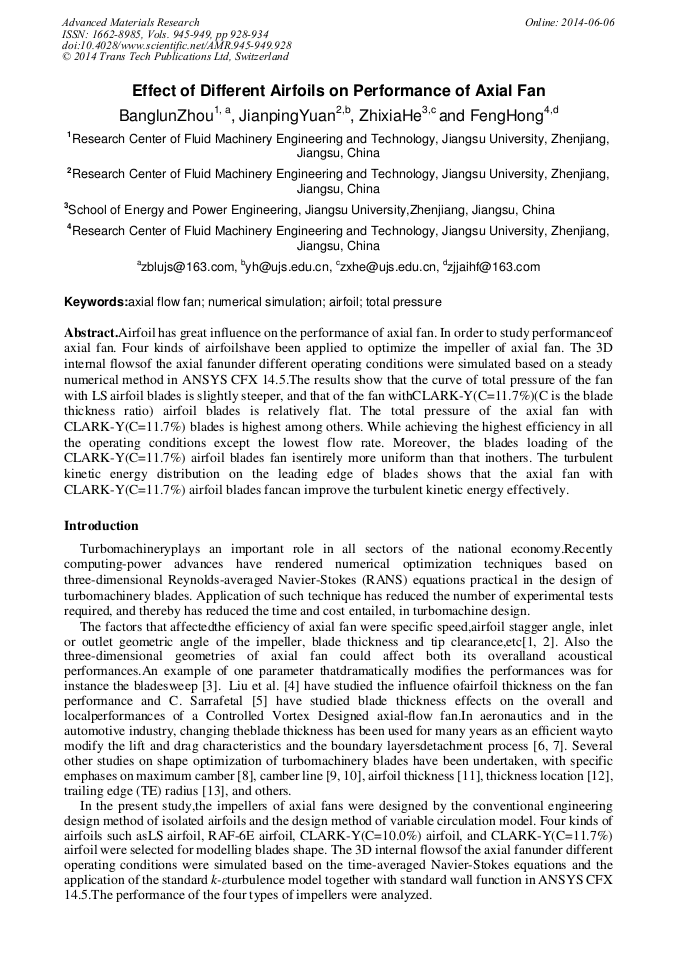

Effect of Different Airfoils on Performance of Axial Fan

Abstract:

Airfoil has great influence on the performance of axial fan. In order to study performance of axial fan. Four kinds of airfoils have been applied to optimize the impeller of axial fan. The 3D internal flows of the axial fan under different operating conditions were simulated based on a steady numerical method in ANSYS CFX 14.5. The results show that the curve of total pressure of the fan with LS airfoil blades is slightly steeper, and that of the fan with CLARK-Y(C=11.7%) (C is the blade thickness ratio) airfoil blades is relatively flat. The total pressure of the axial fan with CLARK-Y(C=11.7%) blades is highest among others. While achieving the highest efficiency in all the operating conditions except the lowest flow rate. Moreover, the blades loading of the CLARK-Y(C=11.7%) airfoil blades fan is entirely more uniform than that in others. The turbulent kinetic energy distribution on the leading edge of blades shows that the axial fan with CLARK-Y(C=11.7%) airfoil blades fan can improve the turbulent kinetic energy effectively.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 928-934
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.928
• Online since: June 2014
• Authors: Bang Lun Zhou, Jian Ping Yuan*, Zhi Xia He, Feng Hong
• Keywords: Airfoil, Axial Flow Fan, Numerical Simulation, Total Pressure

References

[1] John Wiley, Sons. Wallis R A. Axial Flow Fans and Duct[M]. New York，1983.

[2] Jingtai. Shang. Fan Practical Technical Manuals[M]. China Machine Press, 2011. In Chinese.

[3] J. Hurault, S. Kouidri, F. Bakir, R. Rey. Experimental and Numerical Analysis ofthe Sweep Effect on Three-dimensional Flow Downstream of Axial Flow Fans[J]. Flow Measurement and Instrumentation 21 (2010): 155–165.

DOI: 10.1016/j.flowmeasinst.2010.02.003

[4] Y. Liu, S. Y. Zhengand H. T. Shen. Effects of Airfoil Thickness onPerformances of Axial-flow Fan[J]. Compressor Blower & Fan Technology 2(2013): 15–23. In Chinese.

[5] C. Sarraf, H. Nouri, F. Raveletetal. Experimental Study of Blade Thickness Effects on the Overall and LocalPerformances of a Controlled Vortex Designed Axial-flow Fan[J]. Experimental Thermal and Fluid Science 35 (2011): 684–693.

DOI: 10.1016/j.expthermflusci.2011.01.002

[6] B. Thwaites. Incompressible Aerodynamics, An Account of the Theory andObservation of the Steady Flow of Incompressible Fluid past Aerofoils, Wings, and Other Bobies[M]. Dover Publication, Inc., (1987).

DOI: 10.1063/1.3056756

[7] S.F. Hoerner. Fluid-Dynamic Lift[M]. Hoerner Fluid Dynamics, (1985).

[8] K. N. Chung, Y. I. Kim, J. H. Sung, I.H. Chung and S. H. Shin. A study of Optimization of Blade Section Shape for a Steam Turbine[C]. ASME Fluids Engineering Division Summer Meeting and Exibition, Texas, USA (2005) FEDSM2005-77385.

DOI: 10.1115/fedsm2005-77385

[9] O. Lofti, J. A. Teixeira, P. C. Ivey, G. Sheard and I. R. Kinghorn. Aerodynamic Optimization of Industrial Fan Blades[C]. ASME Turbo Expo 2005, Nevada, USA (2005) GT2005-68385.

DOI: 10.1115/gt2005-68385

[10] S. Buruguburu, C. Toussaint, C. Bonhomme and G. Leory. Numerical Optimization of TurbomachineryBladings[J]. Turbomach, 126 (2004): 91-100.

[11] C. Xu and R. S. Amano, ATurbomachinery Blade Design and Optimization Procedure[C]. ASME Turbo Expo 2002, Amsterdam, Netherlands (2002) GT 2002-30541.

DOI: 10.1115/gt2002-30541

[12] N. Chen, H. W. Zhang, H. Du, Y. J. Xu and W. G. Huang, Effect of Maximum Camber Location on Aerodynamics Performance of a Transonic Compressor Blade[C]. ASME Turbo Expo 2005, Nevada, USA (2005) GT2005-68541.

DOI: 10.1115/gt2005-68541

[13] T. Mengistu, W. Ghaly and T. Mansour. Aerodynamic Shape Optimization of a Turbine Blades using Designparameter-based Shape Representation[C]. ASME Turbo Expo 2007, Montreal, Canada (2007) GT2007-28041.

DOI: 10.1115/gt2007-28041

[14] Wenjun Huang, lupingLi. Research on Three Dimensional Solid Modeling for Steam Turbine Twist Blade Based on the SlidWorks[J]. Machinery Desien&Manufacture, 2007, (5): 67-69.

[15] FJWang, YJ Li, GHCong, et al. CFD Simulation of 3DFlow in Large-bore Axial-flow Pump with Half-elbowSuction Sump[J]. J Hydro, Ser. B 2006; 18: 243–24.
