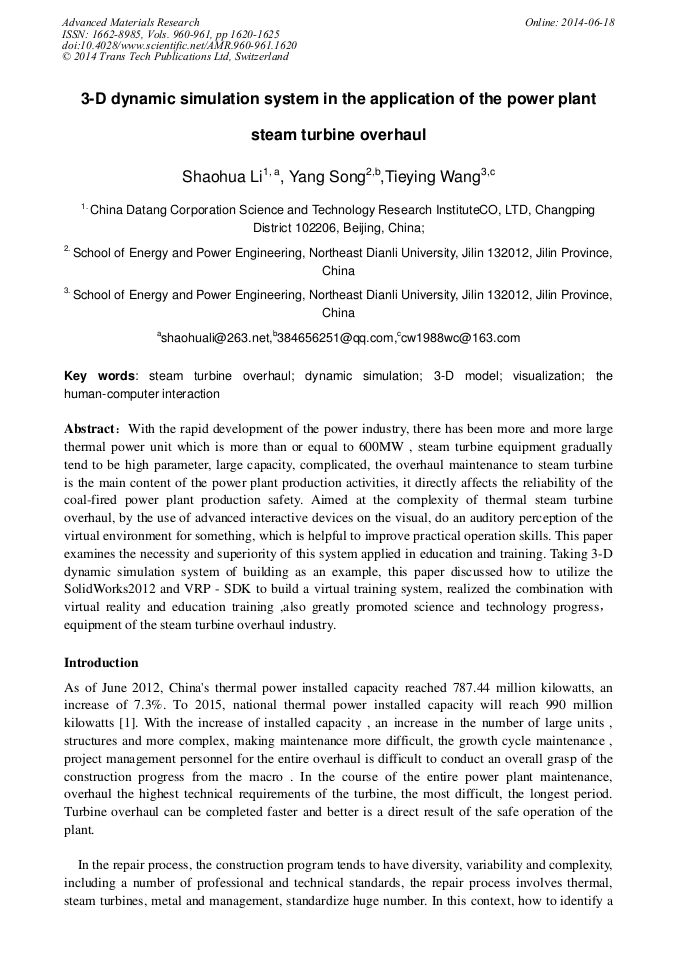

3-D Dynamic Simulation System in the Application of the Power Plant Steam Turbine Overhaul

Abstract:

With the rapid development of the power industry, there has been more and more large thermal power unit which is more than or equal to 600MW , steam turbine equipment gradually tend to be high parameter, large capacity, complicated, the overhaul maintenance to steam turbine is the main content of the power plant production activities, it directly affects the reliability of the coal-fired power plant production safety. Aimed at the complexity of thermal steam turbine overhaul, by the use of advanced interactive devices on the visual, do an auditory perception of the virtual environment for something, which is helpful to improve practical operation skills. This paper examines the necessity and superiority of this system applied in education and training. Taking 3-D dynamic simulation system of building as an example, this paper discussed how to utilize the SolidWorks2012 and VRP - SDK to build a virtual training system, realized the combination with virtual reality and education training ,also greatly promoted science and technology progress，equipment of the steam turbine overhaul industry.

• Periodical: Advanced Materials Research (Volumes 960-961)
• Pages: 1620-1625
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.960-961.1620
• Online since: June 2014
• Authors: Shao Hua Li, Yang Song, Tie Ying Wang
• Keywords: 3D Model, Dynamic Simulation, Human-Computer Interaction (HCI), Steam Turbine Overhaul, Visualization

References

[1] Wang Liqiang. 2010 country's electricity supply and demand analysis and forecast report [R] Beijing: China Electricity Council, 2010. In Chinese.

[2] Liu Feng, Chen Xi, Virtual Reality and Education [J] Laboratory Research and Exploration, 1999, ): 31-35. In Chinese.

[3] Hung -Chi, etc. Virtual Maintenance Training System Review and discuss the development of key technologies, PLA University of Technology. 2000 l (1) : 63-67 In Chinese.

[4] Wang Yulin turbine equipment operation and accident handling Beijing : Chemical Industry Press, 2005: 34 page In Chinese.

[5] Jiang Hong, Lu Lifeng, Wei Zheng solid works animation and motion analysis to resolve instances (M), Beijing: Mechanical Industry Press , 2006, 6 -7. In Chinese.

[6] Shen deep forest , Chen Ding-fang , based on solid works reducer design and virtual assembly of (J), Hubei University of Technology , 2007 (s) : 56-55 In Chinese.

[7] Dassault Systèmes (DS) SolidWorks Corp. Assembly Mates[Z]. SolidWorks Help. (2010).

[8] Alan B A，Compilation of Simulation[J]．IEEE，1999，33(2)：61-63.

[9] Hartholt Arno, Gratch Jonathan, Weiss Lori, et al. At the virtual frontier: Introducing Gunslinger, a multicharacter, mixed-reality, story-driven experience. Intelligent Virtual Agents [M]. Berlin: Springer Berlin Heidelberg, 2009: 500-501.

DOI: 10.1007/978-3-642-04380-2_62
