Synthesis of α-Al2O3 Platelets in Molten Salt for High Performance Ceramics

Jia He; Fang Li

doi:10.4028/www.scientific.net/AMR.97-101.1138

Paper Titles

Creep Damage Analysis of Powder Metallurgy Material with Inclusion
p.1120

Preparation and Mechanical Properties of Al₂O₃/TiCN Sandwich Nanocomposite Ceramic Tool Materials
p.1126

Carbon Foams with High Compressive Strength Derived from Mixtures of Mesophase Pitch and Si Particles
p.1130

Study on Friction Properties of Cu-Based Friction Materials with Ni Coated Nano-SiO₂ Particles
p.1134

Synthesis of α-Al₂O₃ Platelets in Molten Salt for High Performance Ceramics
p.1138

Synthesis of High Nitrogen Stainless Steel Powders by High Energy Ball Milling and their SPS Compaction
p.1142

System Design for High Energy Rate Electromagnetic Powder Compaction Devices
p.1146

An Experimental Study of Fine Powder Comminution in a Dual Cone Impact Mill
p.1150

Research of Constitutive Relation of Metal Powder in High Velocity Compaction
p.1154

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 97-101Synthesis of α-Al2O3 Platelets in Molten Salt for...

Synthesis of α-Al₂O₃ Platelets in Molten Salt for High Performance Ceramics

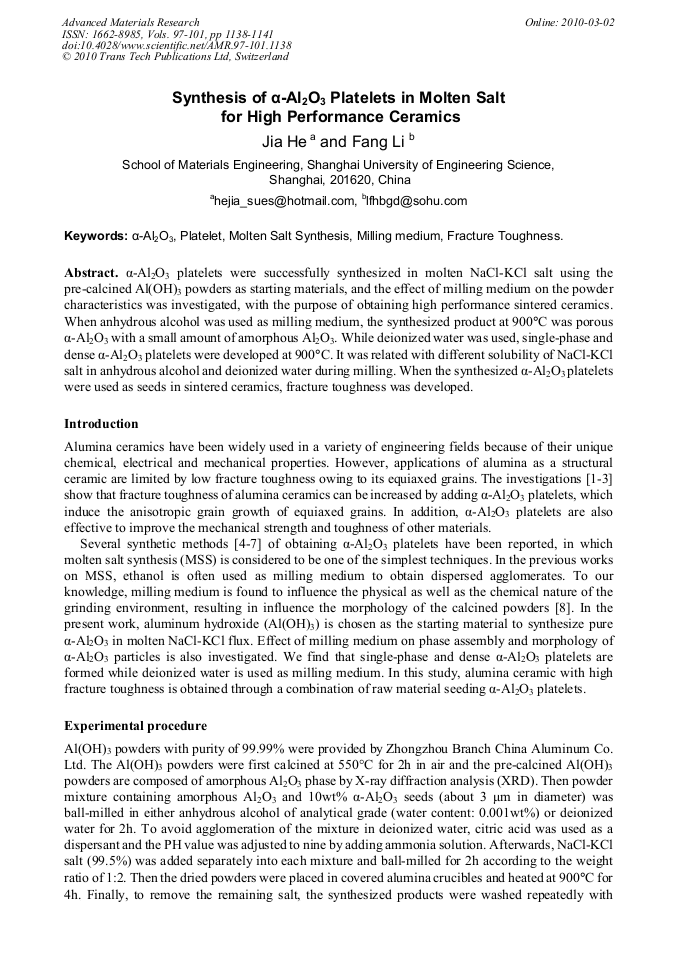

Abstract:

α-Al2O3 platelets were successfully synthesized in molten NaCl-KCl salt using the pre-calcined Al(OH)3 powders as starting materials, and the effect of milling medium on the powder characteristics was investigated, with the purpose of obtaining high performance sintered ceramics. When anhydrous alcohol was used as milling medium, the synthesized product at 900°C was porous α-Al2O3 with a small amount of amorphous Al2O3. While deionized water was used, single-phase and dense α-Al2O3 platelets were developed at 900°C. It was related with different solubility of NaCl-KCl salt in anhydrous alcohol and deionized water during milling. When the synthesized α-Al2O3 platelets were used as seeds in sintered ceramics, fracture toughness was developed.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 97-101)

Pages:

1138-1141

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.97-101.1138

Citation:

Cite this paper

Online since:

March 2010

Authors:

Jia He, Fang Li

Keywords:

Fracture Toughness, Milling Medium, Molten Salt Synthesis, Platelet, α -Al₂O₃

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. Yoshizawa, M. Toriyama and S. Kanzaki: J. Ceram. Soc. Jpn. Vol. 106 (1998), pp.1172-1177.

Google Scholar

[2] A. R. Boccaccini and P. A. Trusty: J. Mater. Sci. Lett. Vol. 15 (1996), pp.60-63.

Google Scholar

[3] V. Massardier, R. Fougeres and P. Merle: Mater. Sci. Eng. A Vol. 203 (1995), pp.93-104.

Google Scholar

[4] R. F. Hill, R. Danzer and R. T. Paine: J. Am. Ceram. Soc. Vol. 84 (2001), pp.514-520.

Google Scholar

[5] S. Hashimoto and A. Yamaguchi: J. Mater. Res. Vol. 14 (1999), pp.4667-4672.

Google Scholar

[6] X. H. Jin and L. Gao: J. Am. Ceram. Soc. Vol. 87 (2004), pp.533-540.

Google Scholar

[7] J. He, W. Liu, L. H. Zhu and Q.W. Huang: J. Mater. Sci. Vol. 40 (2005), pp.3259-3261.

Google Scholar

[8] R. Paramasivam and R. Vedaraman: Adv. Powder. Technol. Vol. 3 (1992), pp.31-37.

Google Scholar

[9] P. F. Becher: J. Am. Ceram. Soc. Vol. 74 (1991), pp.255-269 Fig. 5. Mechanical properties of alumina ceramics as a function of seeds addition. Fig. 4. SEM micrographs of the synthesized α-Al2O3 using deionized water as milling medium.

Google Scholar
