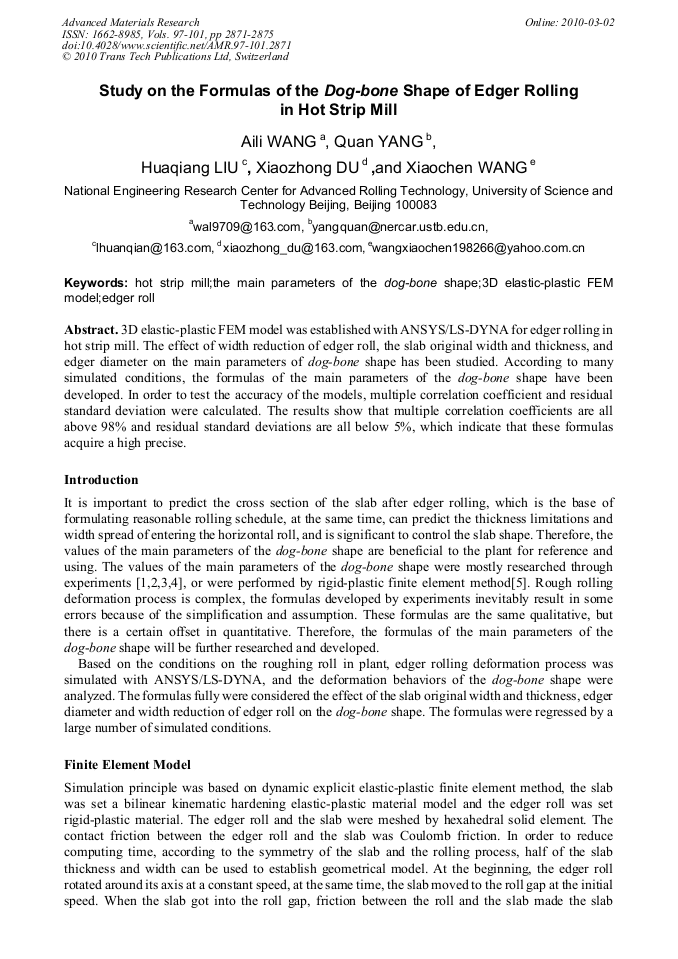

Study on the Formulas of the Dog-Bone Shape of Edger Rolling in Hot Strip Mill

Abstract:

3D elastic-plastic FEM model was established with ANSYS/LS-DYNA for edger rolling in hot strip mill. The effect of width reduction of edger roll, the slab original width and thickness, and edger diameter on the main parameters of dog-bone shape has been studied. According to many simulated conditions, the formulas of the main parameters of the dog-bone shape have been developed. In order to test the accuracy of the models, multiple correlation coefficient and residual standard deviation were calculated.The results show that multiple correlation coefficients are all above 98% and residual standard deviations are all below 5%, which indicate that these formulas acquire a high precise.

• Periodical: Advanced Materials Research (Volumes 97-101)
• Pages: 2871-2875
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.97-101.2871
• Online since: March 2010
• Authors: Ai Li Wang, Quan Yang, Hua Qiang Liu, Xiao Zhong Du, Xiao Chen Wang
• Keywords: 3D Elastic-Plastic FEM Model, Edger Roll, Hot Strip Mill, Main Parameters of the Dog Bone Shape

References

[1] N. Tazoe: Paper presented at the 1984 AISE Spring Conference, Dearborn, Mich., April (1984).

[2] M. Okado, et al: Journal of the Iron and Steel Institute of Japan, 1981, 67(15): 2516-2525.

[3] Xiong Shangwu, Zhu Xiangling, Liu Xianghua, Wang Guodong et al: Journal of plasticity engineering, 1996, 3(3): 59-64.

[4] Han Li: Iron and Steel, 1999, 34(4): 24-29.

[5] Myung-Sik Chun, Ick-Tae Ahn, Young-Hoon Moon: JMEPEG (2005) 14: 408-412.

[6] Vladimir B. Ginzburg: High-Quality Steel Roling: Theory and Practice. Translated by Jiang Mingdong et al. Beijing: Metallurgical Industry Press, (2009).
