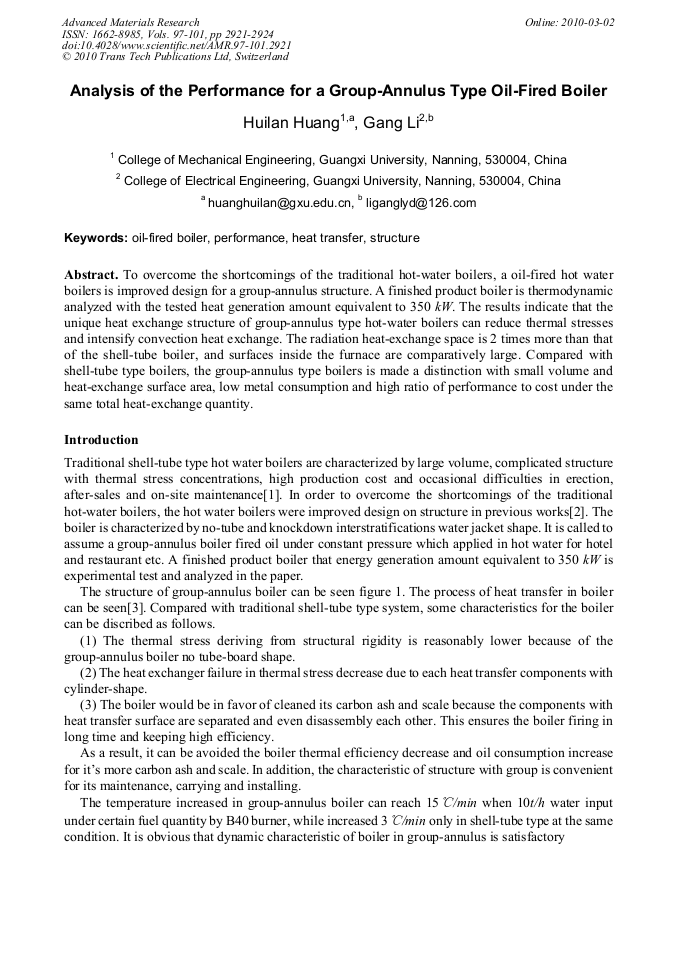

Analysis of the Performance for a Group-Annulus Type Oil-Fired Boiler

Abstract:

To overcome the shortcomings of the traditional hot-water boilers, a oil-fired hot water boilers is improved design for a group-annulus structure. A finished product boiler is thermodynamic analyzed with the tested heat generation amount equivalent to 350 kW. The results indicate that the unique heat exchange structure of group-annulus type hot-water boilers can reduce thermal stresses and intensify convection heat exchange. The radiation heat-exchange space is 2 times more than that of the shell-tube boiler, and surfaces inside the furnace are comparatively large. Compared with shell-tube type boilers, the group-annulus type boilers is made a distinction with small volume and heat-exchange surface area, low metal consumption and high ratio of performance to cost under the same total heat-exchange quantity.

• Periodical: Advanced Materials Research (Volumes 97-101)
• Pages: 2921-2924
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.97-101.2921
• Online since: March 2010
• Authors: Hui Lan Huang, Gang Li
• Keywords: Heat Transfer, Oil-Fired Boiler, Performance, Structure

References

[1] Z.C. Song and J.K. Gao: Journal of Engineering for Thermal Energy and Power, Vol. 19 (2004), pp.392-394, 432(In Chinese).

[2] H.L. Huang, Z.M. Wu, G. Li , et al: Journal of Engineering for Thermal Energy and Power, Vol. 21 ( 2006), pp.461-464(In Chinese).

[3] H.L. Huang, J.P. Qin ,G. Li: Chinese Manufacturing Communication, Vol. 33, (2004), pp.104-106(In Chinese).

[4] D.T. Qiu and H.K. Yang: Boiler Technology, Vol. 32 ( 2001), pp.18-21(In Chinese).

[5] D.F. Cheng and Z.Y. Chen: Industrial Boiler, Vol. 91 (2005), pp.31-33(In Chinese).

[6] H.L. Huang, G. Li , J.P. Qin: Industrial Furnace, Vol. 27 (2005), pp.42-45(In Chinese).
