A Multi-Agent Based Tool Path Planning Method for STEP-NC Compliant Milling

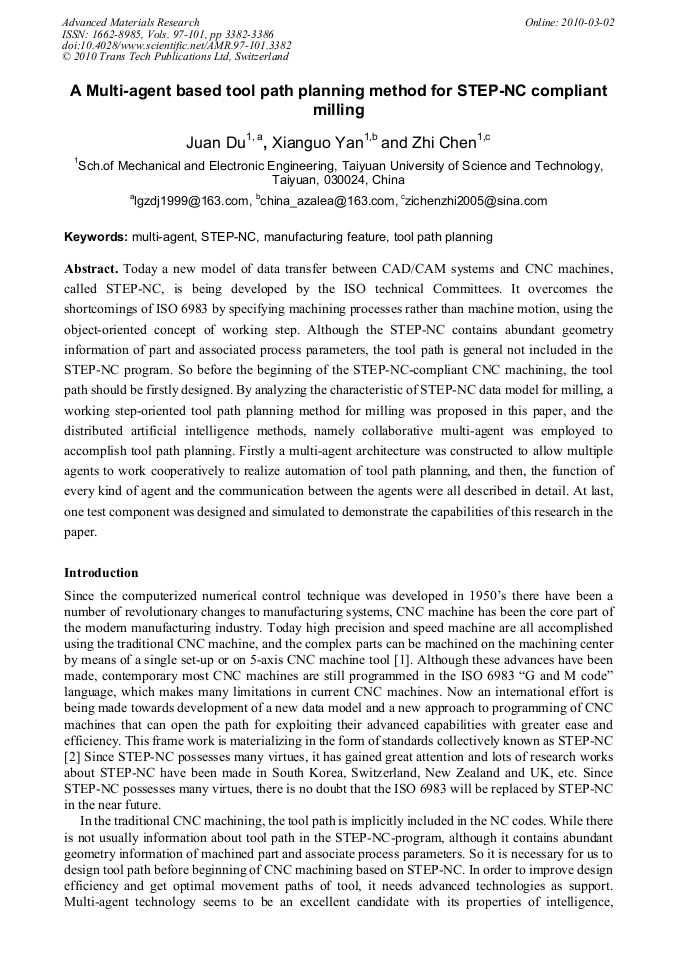

Article Preview

Abstract:

Today a new model of data transfer between CAD/CAM systems and CNC machines, called STEP-NC, is being developed by the ISO technical Committees. It overcomes the shortcomings of ISO 6983 by specifying machining processes rather than machine motion, using the object-oriented concept of working step. Although the STEP-NC contains abundant geometry information of part and associated process parameters, the tool path is general not included in the STEP-NC program. So before the beginning of the STEP-NC-compliant CNC machining, the tool path should be firstly designed. By analyzing the characteristic of STEP-NC data model for milling, a working step-oriented tool path planning method for milling was proposed in this paper, and the distributed artificial intelligence methods, namely collaborative multi-agent was employed to accomplish tool path planning. Firstly a multi-agent architecture was constructed to allow multiple agents to work cooperatively to realize automation of tool path planning, and then, the function of every kind of agent and the communication between the agents were all described in detail. At last, one test component was designed and simulated to demonstrate the capabilities of this research in the paper.

You might also be interested in these eBooks
Manufacturing Science and Engineering I View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 97-101)

Pages:

3382-3386

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.97-101.3382

Citation:

Cite this paper

Online since:

March 2010

Authors:

Juan Du, Xian Guo Yan, Zhi Chen

Keywords:

Manufacturing Features, Multi-Agent (MA), STEP-NC, Tool-Path Planning

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] A. Nassehi, S.T. Newman, and R.D. Allen: International Journal of Machine tools & Manufacture, Vol. 46(2006), pp.559-574.

Google Scholar

[2] H. SUH, B. E. LEE: Computer-Aided Design, Vol. 35(2003), pp.1069-1083.

Google Scholar

[3] S. Ueiguan , F. Hua: Journal of Information Technology & Decision Making, Vol. 2(2003), pp.497-522.

Google Scholar

[4] T. Graf, A. Knoll: International Journal on Artificial Intelligence Tools, Vol. 9(2000), pp.305-319.

Google Scholar

[5] E. Shakshuki , S. Abu-draz: Journal of Interconnection Networks m S World Scientific, Vol. 6 (2005) , pp.283-302.

Google Scholar

[6] G. Boella, L. Van : International Journal of Cooperative Information Systems, Vol. 16 (2007), pp.97-122.

Google Scholar

[7] A. Sud, E. Andersen: IEEE Transactions on visuallzation and computer graphics, vol. 14 (2008), pp.526-538. Fig. 3. example of part Fig. 4 STEP-NC program of part Fig. 5 tool path simulation of the part.

Google Scholar
