Design of Precise and Efficient Synchronized Multi-Axis Control Servo System

Abstract:

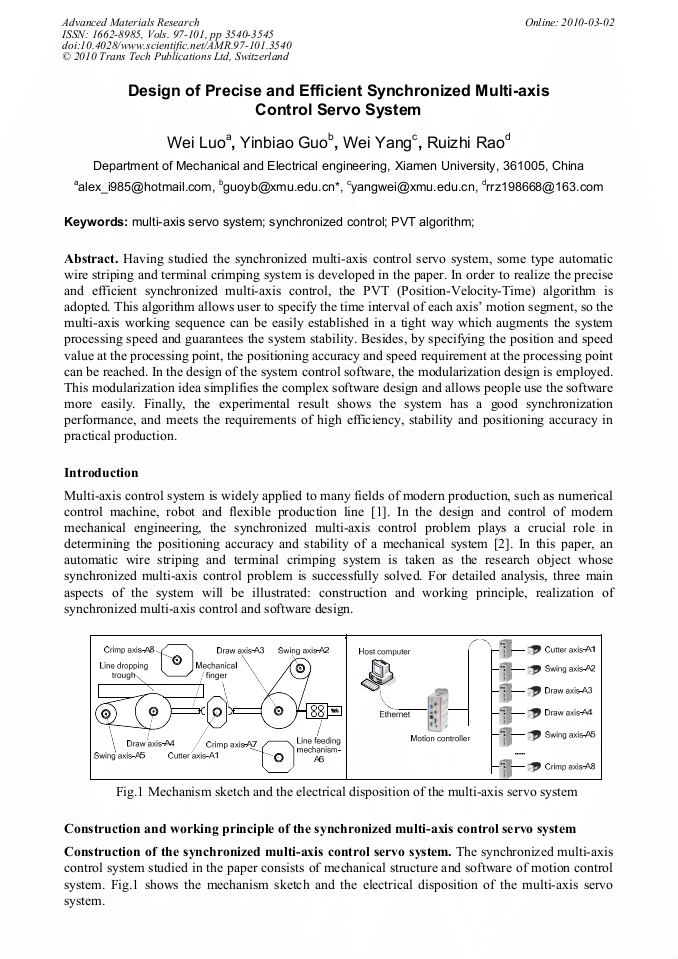

Having studied the synchronized multi-axis control servo system, some type automatic wire striping and terminal crimping system is developed in the paper. In order to realize the precise and efficient synchronized multi-axis control, the PVT (Position-Velocity-Time) algorithm is adopted. This algorithm allows user to specify the time interval of each axis’ motion segment, so the multi-axis working sequence can be easily established in a tight way which augments the system processing speed and guarantees the system stability. Besides, by specifying the position and speed value at the processing point, the positioning accuracy and speed requirement at the processing point can be reached. In the design of the system control software, the modularization design is employed. This modularization idea simplifies the complex software design and allows people use the software more easily. Finally, the experimental result shows the system has a good synchronization performance, and meets the requirements of high efficiency, stability and positioning accuracy in practical production.
