Fast Location of Thermal Target with Low Offset and Spatial Filter of Winner-Take-All Circuit

Abstract:

A new modified infrared tracking sensor array with spatial filter is proposed, which identifies the locations and sizes of thermal object efficiently with the winner-take-all (WTA) circuit and a low offset correlated double sampling (CDS) circuit. The winner-take-all (WTA) circuit is used in combination with active readout circuit for thermopile array. In this circuit, thermal image intensity has been chosen for the input saliency map. The removal process is performed by zeroing the values of the thermal image background intensity levels, so only the potential thermal objects of interest are compared by the WTA. The offset reduction with CDS technique enhances the sensitivity of winner-take-all (WTA) circuit and shows a sharp selectivity which makes it possible to pick up only one winner pixel from each thermal object. In order to simulate and present the infrared thermal sensor array in this paper, the sensor array is integrated by using a 2P4M 0.35μm standard CMOS technology. This proposed architecture shows a high resolution with two orders higher than the circuits without CDS. The results have shown that integrated thermopile array with WTA and CDS can approach a high level of development, reliability and easy for high accuracy infrared tracking applications.

You might also be interested in these eBooks

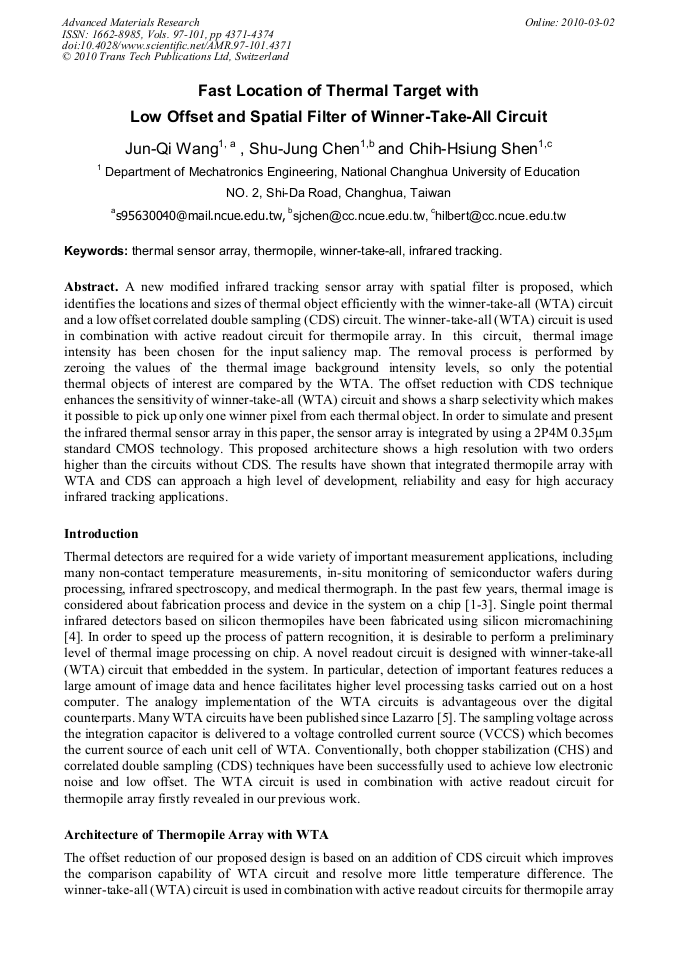

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 97-101)

Pages:

4371-4374

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.97-101.4371

Citation:

Cite this paper

Online since:

March 2010

Authors:

Jun Qi Wang, Shu Jung Chen, Chih Hsiung Shen

Keywords:

Infrared Tracking, Thermal Sensor Array, Thermopile, Winner-Take-All

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wayne G Bear, Terry Hull, Kevin D Wise, Khalil Najafi, and Kensall D. Wise, A multiplexed silicon infrared thermal imager, Digest IEEE Int. Conf. on Solid-State Sensors and Actuators. pp.631-634. (1991).

DOI: 10.1109/sensor.1991.148958

Google Scholar

[2] A. D. Oliver and K. D. Wise, Sensors and Actuators A, 73, 222 (1999).

Google Scholar

[3] WG Baer, K. Najafi, KD Wise, RS Toth, Sensors and Actuators, A48 pp.47-54 (1995).

Google Scholar

[4] Muanghlua, R. Cheirsirikul, S. Supadech, TENCON 2000. Proceedings Volume 3, pp.226-229, Sept. (2000).

Google Scholar

[5] J. Lazzaro, S. Ryckebusch, M. A. Mahowald, and C. A. Mead, Advances in neural information processing systems Vol. 1", ed. David S. Touretzky Morgan Kaufmann Publishers, (1989).

Google Scholar
