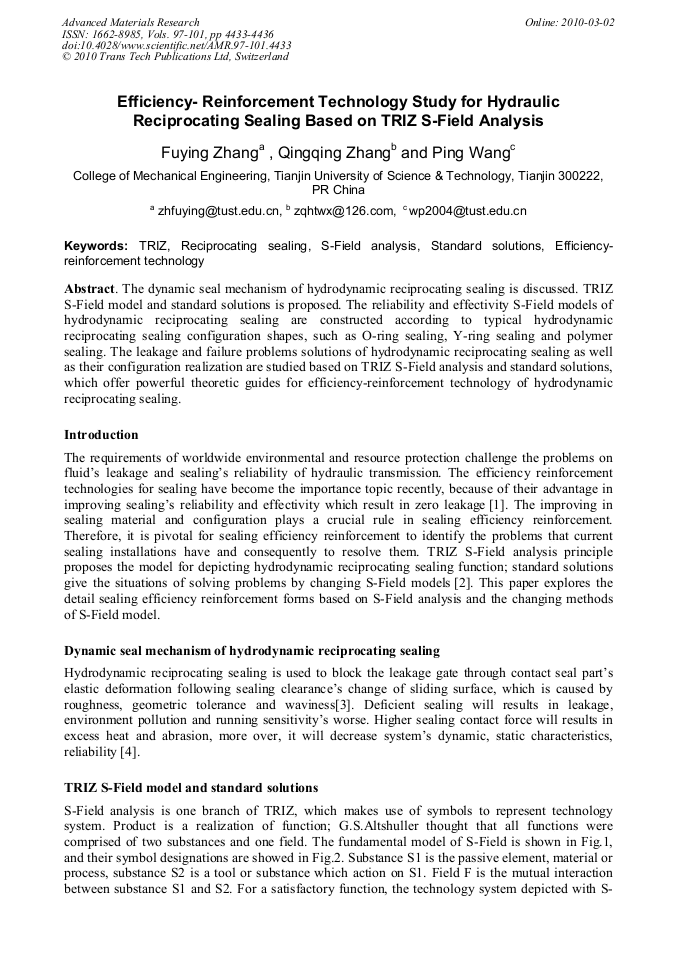

Efficiency- Reinforcement Technology Study for Hydraulic Reciprocating Sealing Based on TRIZ S-Field Analysis
The dynamic seal mechanism of hydrodynamic reciprocating sealing is discussed. TRIZ S-Field model and standard solutions is proposed. The reliability and effectivity S-Field models of hydrodynamic reciprocating sealing are constructed according to typical hydrodynamic reciprocating sealing configuration shapes, such as O-ring sealing, Y-ring sealing and polymer sealing. The leakage and failure problems solutions of hydrodynamic reciprocating sealing as well as their configuration realization are studied based on TRIZ S-Field analysis and standard solutions, which offer powerful theoretic guides for efficiency-reinforcement technology of hydrodynamic reciprocating sealing.
Zhengyi Jiang and Chunliang Zhang
F. Y. Zhang et al., "Efficiency- Reinforcement Technology Study for Hydraulic Reciprocating Sealing Based on TRIZ S-Field Analysis", Advanced Materials Research, Vols. 97-101, pp. 4433-4436, 2010
