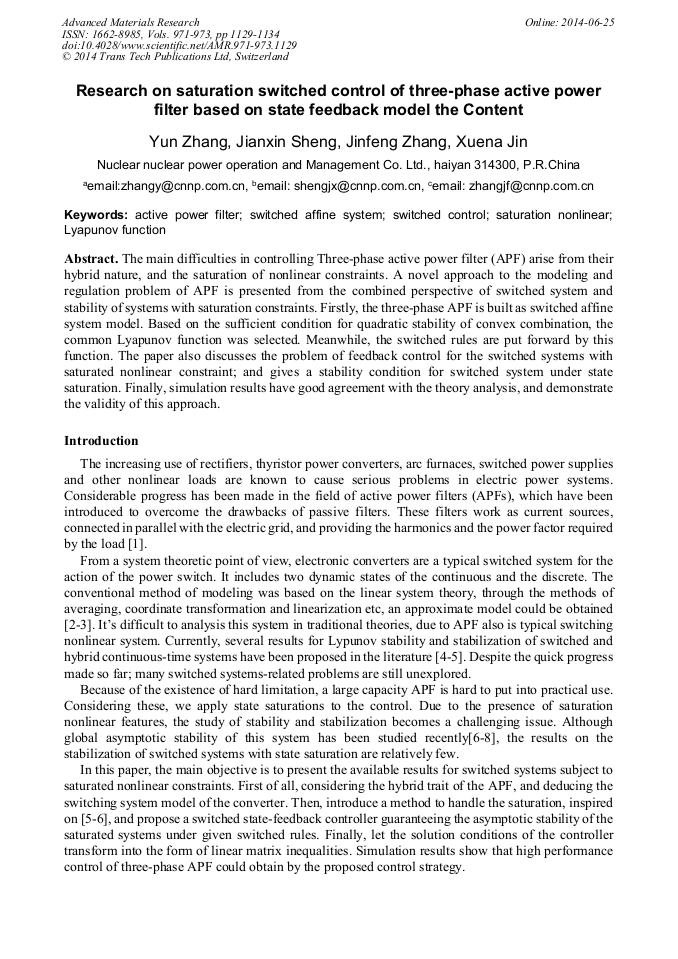

Research on Saturation Switched Control of Three-Phase Active Power Filter Based on State Feedback Model the Content

Abstract:

The main difficulties in controlling Three-phase active power filter (APF) arise from their hybrid nature, and the saturation of nonlinear constraints. A novel approach to the modeling and regulation problem of APF is presented from the combined perspective of switched system and stability of systems with saturation constraints. Firstly, the three-phase APF is built as switched affine system model. Based on the sufficient condition for quadratic stability of convex combination, the common Lyapunov function was selected. Meanwhile, the switched rules are put forward by this function. The paper also discusses the problem of feedback control for the switched systems with saturated nonlinear constraint; and gives a stability condition for switched system under state saturation. Finally, simulation results have good agreement with the theory analysis, and demonstrate the validity of this approach.

• Periodical: Advanced Materials Research (Volumes 971-973)
• Pages: 1129-1134
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.971-973.1129
• Online since: June 2014
• Authors: Yun Zhang*, Jian Xin Sheng, Jin Feng Zhang, Xue Na Jin
• Keywords: Active Power Filter (APF), Lyapunov Function, Saturation Nonlinear, Switched Affine System, Switched Control

References

[1] Akagi H, Fujita H, Wada K. A Shunt Active Filter Based on Voltage Detection for Harmonic termination of a radial power distribution line. IEEE Trans on Industry Applications. 1999; 35(1): 638-645.

DOI: 10.1109/28.767015

[2] R.E. shatshat. Artificial Intelligent Controller for Current Source Converter-based Modular Active Power Filters. Power deliv. IEEE Trans. 2004; 19(3): 1314-1320.

DOI: 10.1109/tpwrd.2004.829148

[3] Murat Kale, Engin Ozdemir. An Adaptive Hysteresis Band Current Controlled Shunt Active Power Filter. Electric Power Systems Research. 2005; 73(2): 113-119.

DOI: 10.1016/j.epsr.2004.06.006

[4] Shorten.R. N, Narendra.K. S, Mason.O. A Result on Common Quadratic Lyapunov Functions. IEEE Transactions on Automatic Control. 2003; 48(1): 110-113.

DOI: 10.1109/tac.2002.806661

[5] Geromel J C, Colaneri P. Stability and Stabilization of Continuous-time Switched Linear Systems. SIAM J. Control Optim. 2006; 45(5): 1915-(1930).

DOI: 10.1137/050646366

[6] H. Fang, Z. Lin. Stablilty Analysis for Linear Systems under State Constraints. IEEE Transactions on Automatic Control. 2004; 49(6): 950-955.

DOI: 10.1109/tac.2004.829614

[7] L. Hou, Anthony N. Michel. Asymptotic Stability of Systems with Satruation Constraints. IEEE Transactions on Automatic Control. 1998; 43(8): 1148-1154.

DOI: 10.1109/9.704991

[8] V. Singh. Modified criterion for global asymptotic stability of fixed-poit state-space digital filters using two's complement arithmetic. Automatica. 2010; 46(2): 475-478.

DOI: 10.1016/j.automatica.2009.11.022
