Design and Simulation of Dot Distribution of the Non-Uniform LED LGP

Abstract:

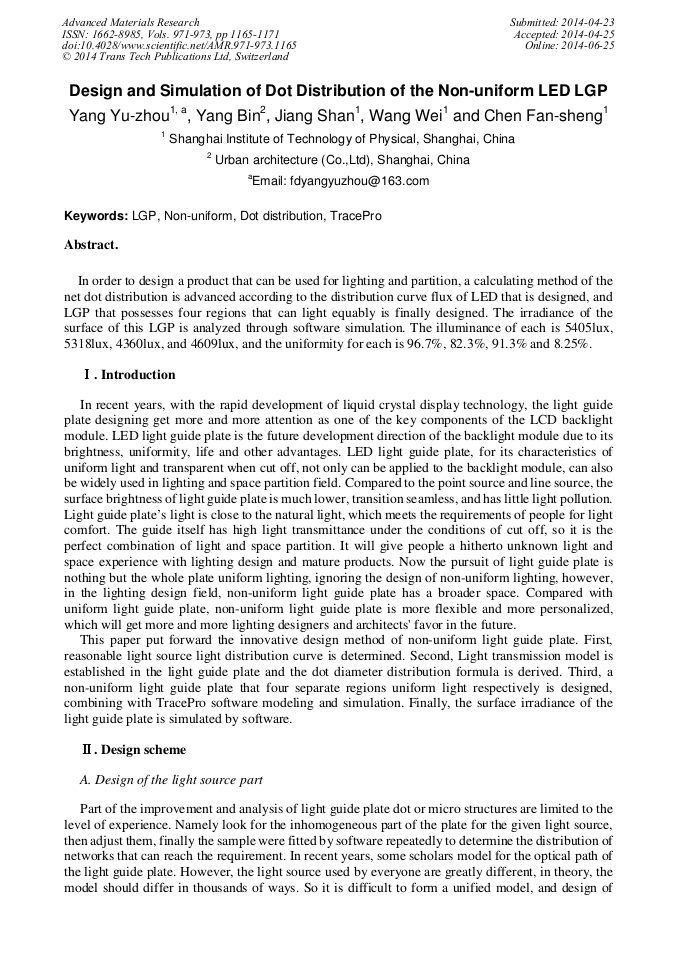

In order to design a product that can be used for lighting and partition, a calculating method of the net dot distribution is advanced according to the distribution curve flux of LED that is designed, and LGP that possesses four regions that can light equably is finally designed. The irradiance of the surface of this LGP is analyzed through software simulation. The illuminance of each is 5405lux, 5318lux, 4360lux, and 4609lux, and the uniformity for each is 96.7%, 82.3%, 91.3% and 8.25%.
