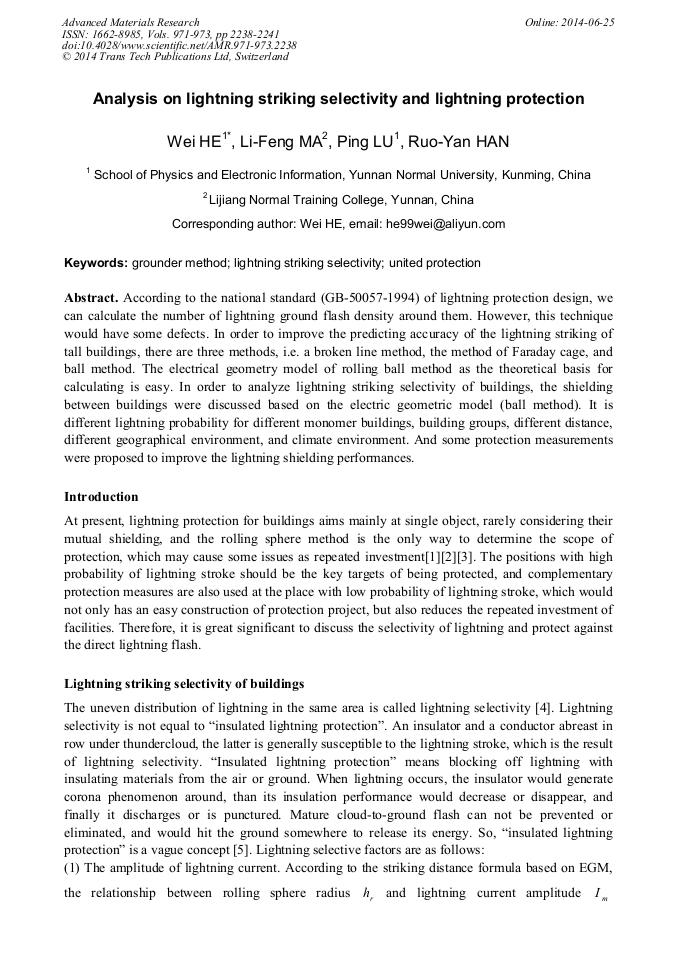

Analysis on Lightning Striking Selectivity and Lightning Protection

Abstract:

According to the national standard (GB-50057-1994) of lightning protection design, we can calculate the number of lightning ground flash density around them. However, this technique would have some defects. In order to improve the predicting accuracy of the lightning striking of tall buildings, there are three methods, i.e. a broken line method, the method of Faraday cage, and ball method. The electrical geometry model of rolling ball method as the theoretical basis for calculating is easy. In order to analyze lightning striking selectivity of buildings, the shielding between buildings were discussed based on the electric geometric model (ball method). It is different lightning probability for different monomer buildings, building groups, different distance, different geographical environment, and climate environment. And some protection measurements were proposed to improve the lightning shielding performances.

• Periodical: Advanced Materials Research (Volumes 971-973)
• Pages: 2238-2241
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.971-973.2238
• Online since: June 2014
• Authors: Wei He*, Li Feng Ma, Ping Lu, Ruo Yan Han
• Keywords: Grounder Method, Lightning Striking Selectivity, United Protection

References

[1] M. A. Uman, D. K. McLain, E. P. Kxider. The electromagnetic radiation from a finiteantenna Amer. J. Phys. 1975, 43(6): 33-38.

[2] S. Bonyadi-ram,R. Moini, S. H. H. Sadeghi, and A. Mahanfar. The effects of tall buildings on the measurement of electromagnetic fields due to lightning return strokes strokes. IEEEInt. Symp. Electromagn. Compat., Montreal, Canada, (2001).

DOI: 10.1109/isemc.2001.950533

[3] Feliziani, M. and Orlandi, A., Lightning stroke to a structure protection system- PartⅡ: Electromagnetic fields analysis[M]. in Proc. 6th Int. Symp. High-Voltage Eng., New Orleans, LA, Aug. 28-Sept. 1, 109~112, (1989).

[4] Ning LI. Introduction to dwarf buildings on some of the factors being struck by lightning[J]. Journal of Guangxi Meteorology, 2004, 25(71, 74) (supplement).

[5] Wei HE, Hong Jian LIU. Application of ground electric field information in lightning forecast[M]. PACIIA2010, Chennai: Scientific Publishing Service Pvt Ltd, (2010).

[6] GB50057-94(2000) Building lightning protection design specification [S] Bei Jing:. China Meteorological Press, (2000).

[7] Guan Jun Qian, Xiao Yu Wang, Xian Zhi Xu, Yan Wang. Experimental study on the discharge resistor to ground impact point hit[J]. Journal of Huazhong University of Science, 1998, 26(9): 68-70.

[8] Wei HE, Kaihong ZHOU. Lightning Current Models'Characteristics Based on ContinuousWavelet Transform[C]. 7th Asia-Pacific International Conference on Lightning, (2011).

DOI: 10.1109/apl.2011.6110116

[9] Wei HE, Pi-Cui Zhang, Liu-Ling Wang and Li-Feng Ma. Soil resistivity lighting current model[J]. Applied Mechanics and Materials. 401-403, 2013, 2116-2119.

DOI: 10.4028/www.scientific.net/amm.401-403.2116
