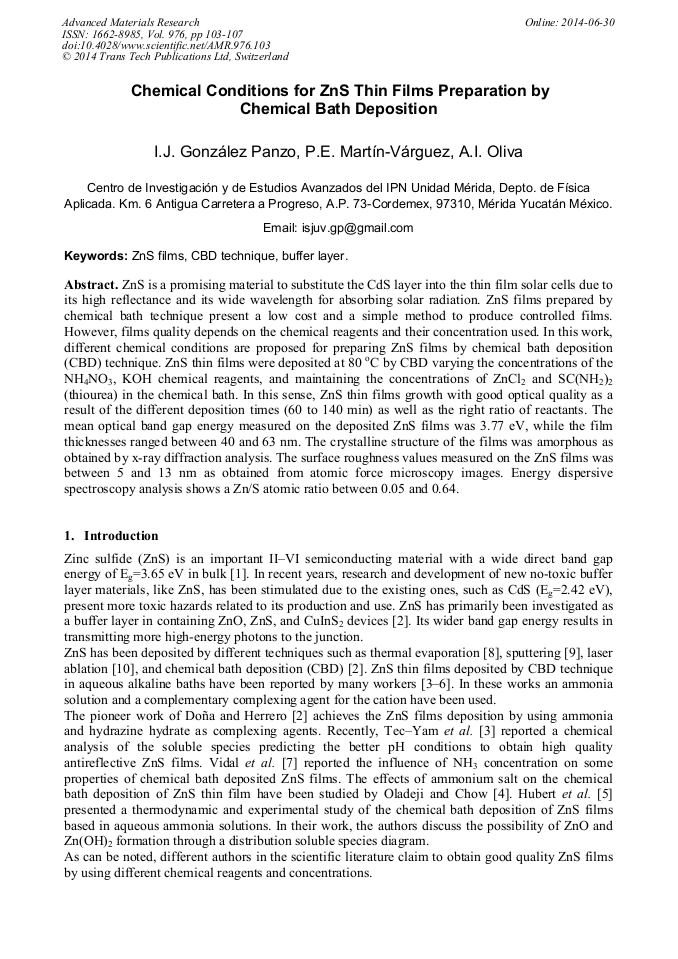

Chemical Conditions for ZnS Thin Films Preparation by Chemical Bath Deposition

Abstract:

ZnS is a promising material to substitute the CdS layer into the thin film solar cells, given its high reflectance and its wide wavelength to catch the solar radiation. ZnS films prepared by chemical bath technique present a low cost and a simple method to produce controlled films. However, the films quality depends on the chemical reagents and their concentration used. In this work, different chemical conditions are proposed for preparing ZnS films by the chemical bath deposition (CBD) technique. ZnS thin films were deposited at 80 °C by CBD by changing the concentrations of the chemical reagents NH₄NO₃, KOH, and maintaining the concentrations of ZnCl₂ and thiourea (SC(NH₂)₂) in the chemical bath. The best conditions of the chemical reagents under the different deposition times (60 to 140 min) were obtained as a result of the experimentation done in order to produce ZnS thin films with good optical quality. The mean optical band gap energy measured on the prepared ZnS films was 3.77 eV, with a film thickness between 40 and 63 nm. The crystalline structure of films was amorphous as obtained by x-ray diffraction analysis. The surface roughness measured on the ZnS films was between 5 to 13 nm as obtained from atomic force microscopy images. Energy Dispersive Spectroscopy analysis show a Zn/S atomic ratio between 0.05 to 0.64.

• Periodical: Advanced Materials Research (Volume 976)
• Pages: 103-107
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.976.103
• Online since: June 2014
• Authors: Isidro Juvenal González Panzo*, Pedro Edmundo Martin-Varguez, Andres Ivan Oliva
• Keywords: Buffer Layer, CBD Technique, ZnS Films

References

[1] X. D. Gao, X. M. Li, W. D. Yu, Thin Solid Films 468 (2004) 43-48.

[2] J. M. Doña, J. Herrero, J. Electrochem. Soc. 141 (1994) 205-210.

[3] S. Tec-Yam, J. Rojas, V. Rejon, A. I. Oliva, Materials Chemistry and Physics 136 (2012) 386-393.

[4] I. O. Oladeji, L. Chow, Thin Solid Films 339 (1999) 148-153.

[5] C. Hubert, N. Naghavi, B. Canava, A. Etcheberry, D. Lincot, Thin Solid Films 515 (2007) 6032–6035.

DOI: 10.1016/j.tsf.2006.12.139

[6] F. Gode, C. Gumus, M. Zor, J. Cryst. Growth 299 (2007) 136-141.

[7] J. Vidal, O. Vigil, O. de Melo, N. Lopez, O. Zelaya-Angel , Mater. Chem. Phys. 61 (1999) 139-145.

[8] Z. Porada, E. Schabowska, Thin Solid Films 145 (1986) 75-83.

[9] M. Tonouchi, S. Yong, M. Tarsuro, S. Hirosh and O. Masaki, J. Appl. Phys. 2 (1990) L2453-L2458.

[10] S-H. Choi, T. Sasaki, Y. Shimizu, J-W. Yoon, W. T. Nichols, Y-E. Sung and N. Koshizaki, Journal of Physics: Conference Series 59 (2007) 388–391.

[11] H.T. Grahn, Introduction to Semiconductor Physics, World Scientific Publishing, Singapore, (1999).
