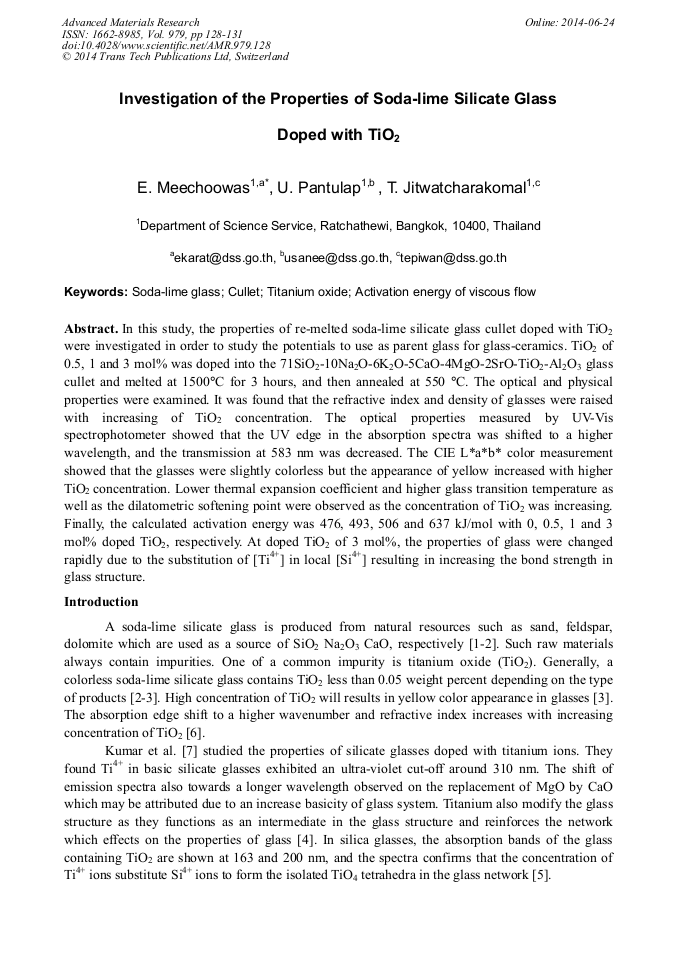

Investigation of the Properties of Soda-Lime Silicate Glass Doped with TiO₂

Abstract:

In this study, the properties of re-melted soda-lime silicate glass cullet doped with TiO₂ were investigated in order to study the potentials to use as parent glass for glass-ceramics. TiO₂ of 0.5, 1 and 3 mol% was doped into the 71SiO₂-10Na₂O-6K₂O-5CaO-4MgO-2SrO-TiO₂-Al₂O₃ glass cullet and melted at 1500°C for 3 hours, and then annealed at 550 °C. The optical and physical properties were examined. It was found that the refractive index and density of glasses were raised with increasing of TiO₂ concentration. The optical properties measured by UV-Vis spectrophotometer showed that the UV edge in the absorption spectra was shifted to a higher wavelength, and the transmission at 583 nm was decreased. The CIE L*a*b* color measurement showed that the glasses were slightly colorless but the appearance of yellow increased with higher TiO₂ concentration. Lower thermal expansion coefficient and higher glass transition temperature as well as the dilatometric softening point were observed as the concentration of TiO₂ was increasing. Finally, the calculated activation energy was 476, 493, 506 and 637 kJ/mol with 0, 0.5, 1 and 3 mol% doped TiO₂, respectively. At doped TiO₂ of 3 mol%, the properties of glass were changed rapidly due to the substitution of [Ti⁴⁺] in local [Si⁴⁺] resulting in increasing the bond strength in glass structure.

• Periodical: Advanced Materials Research (Volume 979)
• Pages: 128-131
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.979.128
• Online since: June 2014
• Authors: E. Meechoowas*, Usanee Pantulap, T. Jitwatcharakomal
• Keywords: Activation Energy of Viscous Flow, Cullet, Soda-Lime Glass, Titanium Oxide

References

[1] J. E. Shelby, Introduction to glass science and technology 2nd , The royal society of chemistry. Cambridge, (2005).

[2] F. V. Tooley, The handbook of glass manufacture 3rd, Ashlee Publishing Co., Inc. New York, (1984).

[3] F. W. Hodkin and A. Cousen, A textbook of glass technology, Constable and company Ltd. London, (1927).

[4] W. Vogel, Chemistry of glass, The American Ceramic Society, Inc. Westerville Ohio, (1985).

[5] D. Y. Smith, C. E. Black, C. C. Homes and E. Shiles, Optical properties of TiO2-SiO2 glass over wide spectral range, Phys. Status Solidi C. 4 (2007) 838-842.

DOI: 10.1002/pssc.200673847

[6] S. Ruengsri, J. Kaewkhao and P. Limsuwan, Optical characterization of soda lime borosilicate glass doped with TiO2, Procedia engineering. 32 (2012) 772-779.

DOI: 10.1016/j.proeng.2012.02.011

[7] M. Kumar, A. Uniyal, A. P. S. Chauhan and S. P. Singh, Optical absorption and fluorescent behavior of titanium ions in silicate glasses, Bull. Mater. Sci. 26 (2003) 335-341.

DOI: 10.1007/bf02707456

[8] M. I. Ojovan, Viscosity and glass transition in amorphous oxides, Adv. Condens. Matter. Phys. 2008 (2008) 1-23.

[9] I. Avramov, Viscosity activation energy, Phys. Chem. Glasses: Eur. J. Glass Sci. B. 48 (2007) 61-63.
